Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Food & Beverage Sterilizer > Horizontal High Temperature Sterilization Pot/horizontal Autoclave Sterilizer/Stainless Steel Sterilization Pot
Horizontal High Temperature Sterilization Pot/horizontal Autoclave Sterilizer/Stainless Steel Sterilization Pot
US$ 6,500 - 600,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Quate
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao tianjin shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Steam Sterilizing PotUS$ 6,500 - 600,000MOQ: 1 Set -
Food Grade Meat Vegetable Sterilization PotUS$ 6,500 - 600,000MOQ: 1 Set
-
Double Automatic Rotary Type Food Sterilization PotUS$ 6,500 - 600,000MOQ: 1 Set
-
Spraying Type Double Layer High Temperature and Pressure Sterilizing Pot|autoclave With Insulating LayerUS$ 1 - 50,000MOQ: 1 Set
-
Double Baths Sterilizing Kettle Machine/sterilization PotUS$ 1 - 50,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Quate
Model Number
QT-SP1000
Usage
Meat
Type
Autoclave
Voltage
380V / 410V / 220V 50Hz/ 60Hz
Power(W)
10Kw-700Kw
Weight
3t-15t
Dimension(L*W*H)
2600*1200*2900mm
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas

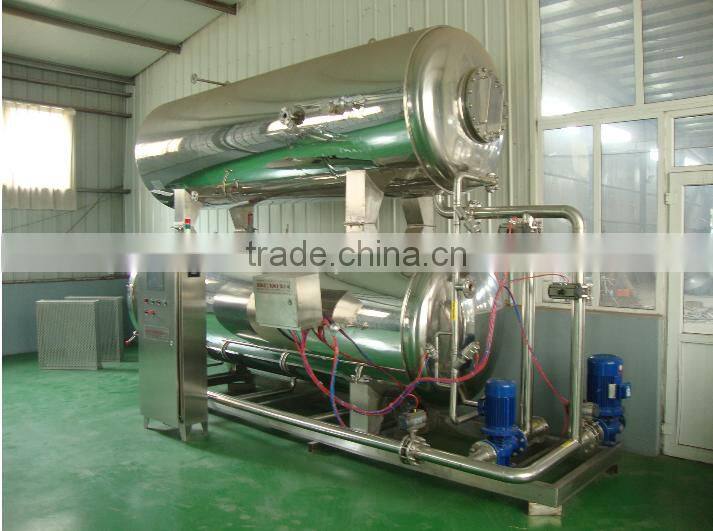

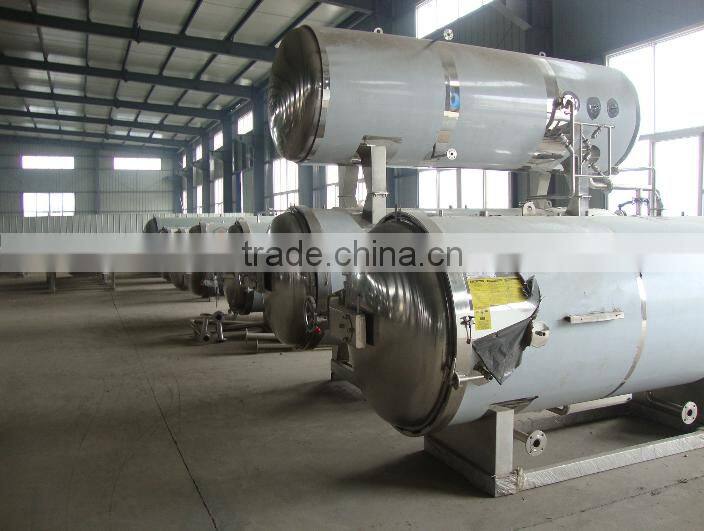

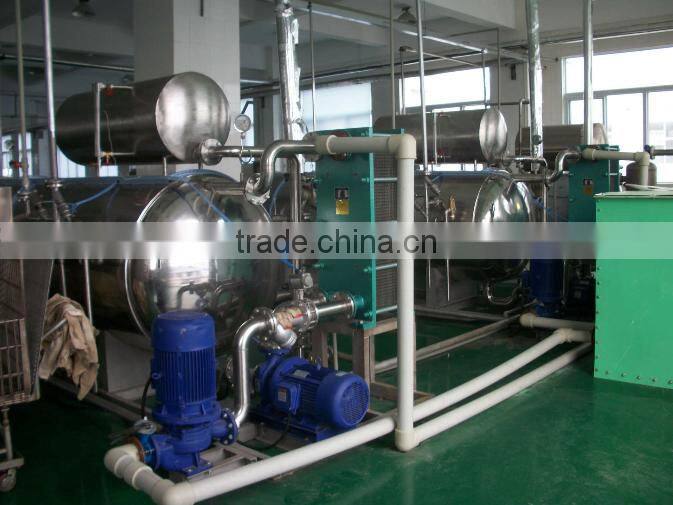

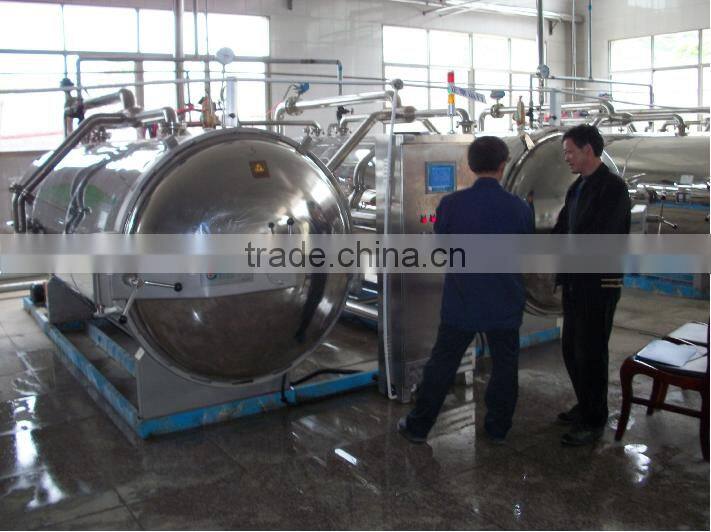

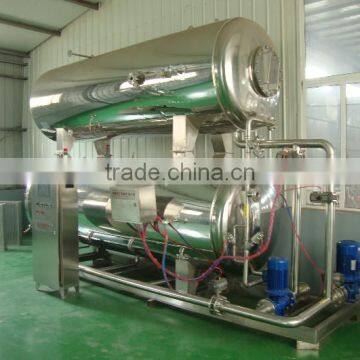

Horizontal high temperature sterilization pot/horizontal autoclave sterilizer/Stainless steel sterilization pot
Product Description
• According to the material divided into carbon steel type and stainless steel type.
• According to the sterilization method divided into spray type, water bath type, steam type androtary type.
• According to the heating method divided into steam heat type andelectric heat type.
• According to the structure divided into single-deck type, double-deck type, two-pot parallel type and three-pot parallel type.
Product parameter
| Model | 1000# | 1200# | 1200# | 1200# | 1200# | 1200# | 1200# | 1300# | 1300# |
| Number | 1 | 1 | 2 | 3 | 4 | 5 | 6 | 1 | 2 |
| Inside diameter(mm) | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1300 | 1300 |
| Length of cylinder(mm) | 2400 | 2200 | 2400 | 2700 | 3000 | 3300 | 3600 | 3500 | 3750 |
| Total length(mm) | 4100 | 4000 | 4200 | 4500 | 4800 | 5000 | 5400 | 5400 | 5650 |
| Total width(mm) | 4800 | 5200 | 5200 | 5200 | 5200 | 5200 | 5200 | 5400 | 5400 |
| Total height(mm) | 2200 | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | 2400 | 2400 |
| Total capacity(m3) | 2.2*2 | 3*2 | 3.2*2 | 3.6*2 | 4*2 | 4.2*2 | 4.6*2 | 5.14*2 | 5.4*2 |
| Gas consumption | 240 | 320 | 360 | 400 | 460 | 480 | 500 | 600 | 650 |
| Total power(Kw) | 14 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| Design temperature(°c) | 135 | 135 | 135 | 135 |
135 | 135 | 135 | 135 | 135 |
| Design pressure(Mpa) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Test pressure(Mpa) | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 | 0.44 |
| Working temperature(°c) | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Working pressure(Mpa) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
| Compressed air tank(m3) | 1.0 | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 2.0 | 2.5 | 2.5 |
| Air compressor | 1/10 | 1.6/10 | 1.6/10 | 1.6/10 | 2.1/10 | 2.1/10 | 2.1/10 | 2.1/10 | 2.1/10 |
| Storage tank(m3) | 5.0 | 7.0 | 8.0 | 8.0 | 9.0 | 9.0 | 9.0 | 8.0 | 11.0 |
| Boiler displacement(T/H) | 1.0 | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 3.0 | 3.5 | 3.5 |

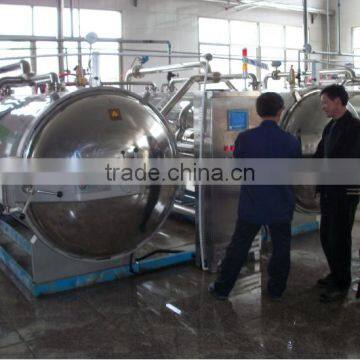

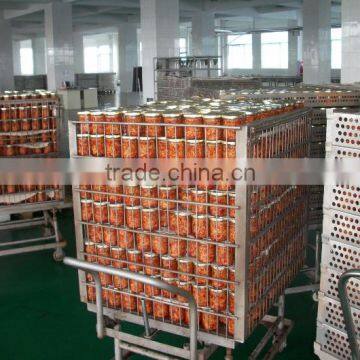

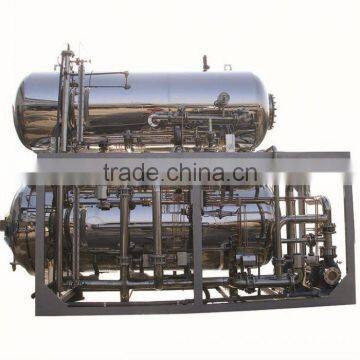

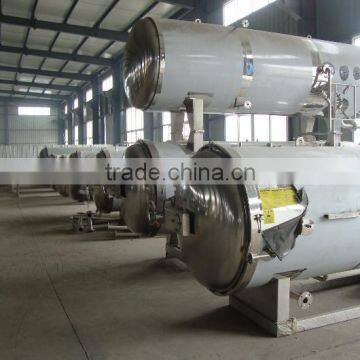

Detailed Images
