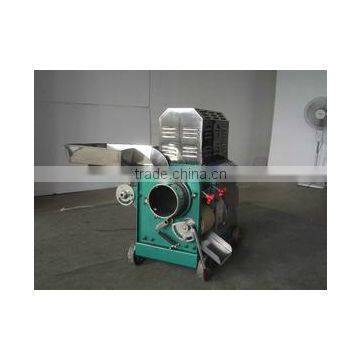

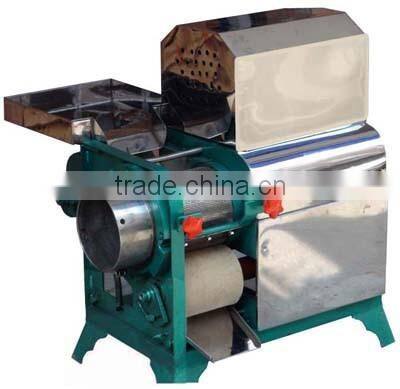

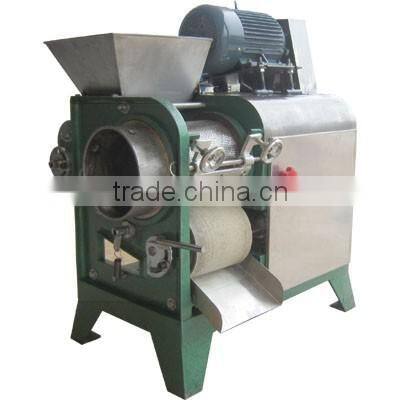

Shrimp Deboning Machine/fish Meat Separating Machine/shrimp Meat Separator
fish separator
usage and introduction:
1.The Fish deboning machine is used for the collection and extraction of the fish flesh and shrimp flesh.
2.This machine can make the fish separate from the fish and shrimp skin, fish and shrimp bones and fish and shrimp tendon,which can improve the utilization rate of raw materials and also save the labor cost.
3.The parts of touching the machine are made of high quality stainless steel materials, which meets the national food hygiene standards, hygiene and healthy.
Working Process of Fish Deboner:

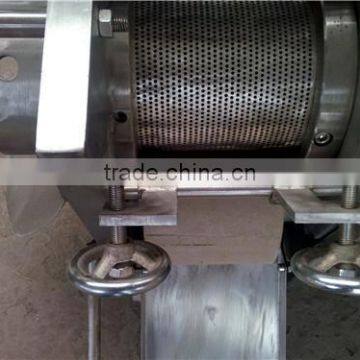

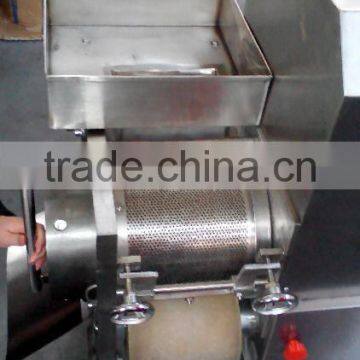

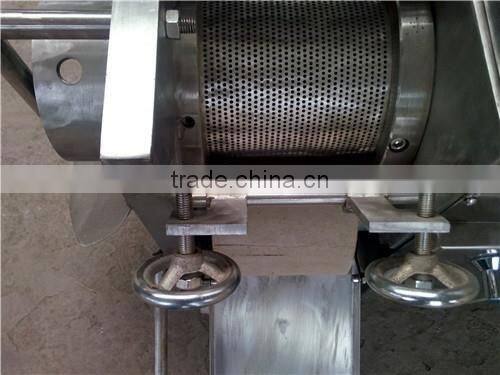

This machine is used for separating fish meat and bone, it is equipped with the foodgrade rubber belt in mining meat barrels and squeezing meat ,sending fish meat into the barrels by mutual squeezing of barrels and transmission of the rubber belt ,fish skin and bones will be left outside of the barrel, then sent out by the scrapping knife. Stainless steel ,hygiene and healthy, fast removing and separating speed, high capacity, proper for fish meat ball making, fish meat collecting, fish meat patty making, fish meat food processing, the final fish meat is pure and fresh.
specification:
Model | QT-1 | QT-2 | QT-3 | QT-4 |
Machine size(mm) | 800*550*800 | 900*700*1100 | 900*750*1250 | 1300*1000*1050 |
Material | SUS304 | SUS304 | SUS304 | SUS304 |
Capacity | 180kg/h | 250kg/h | 500kg/h | 1500kg/h |
Power | 1.5kw | 2.2kw | 3kw | 7.5kw |
Belt thickness | 20mm | 20mm | 20mm | 20mm |
Belt length | 1300mm | 1450mm | 1450mm | 2500mm |
Cylinder diameter | 162mm | 170mm | 219mm | 300mm |
Cylinder length | 300mm | 350mm | 485mm | 350mm |
Thickness of cylinder body | 6mm | 6mm | 6.5mm | 12mm |
Mesh diameter | 2.4mm | 3mm | 3.2mm | 4.5mm |
Weight | 180kg | 280kg | 360kg | 750kg |
