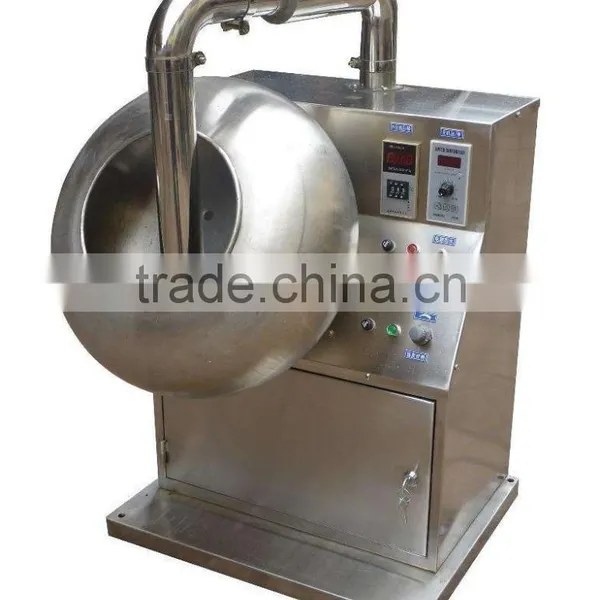

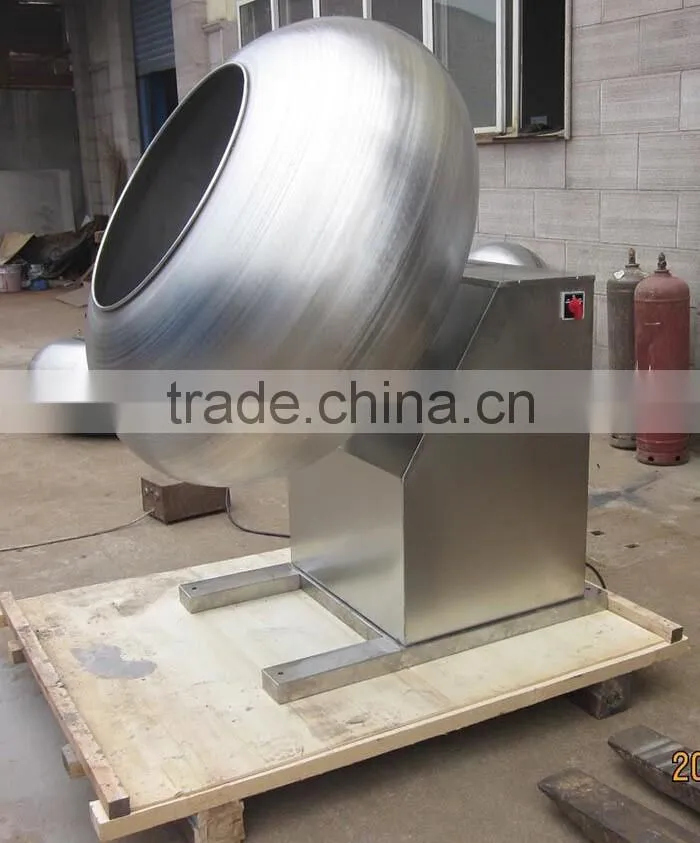

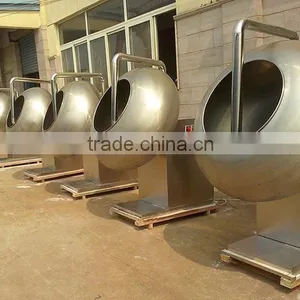

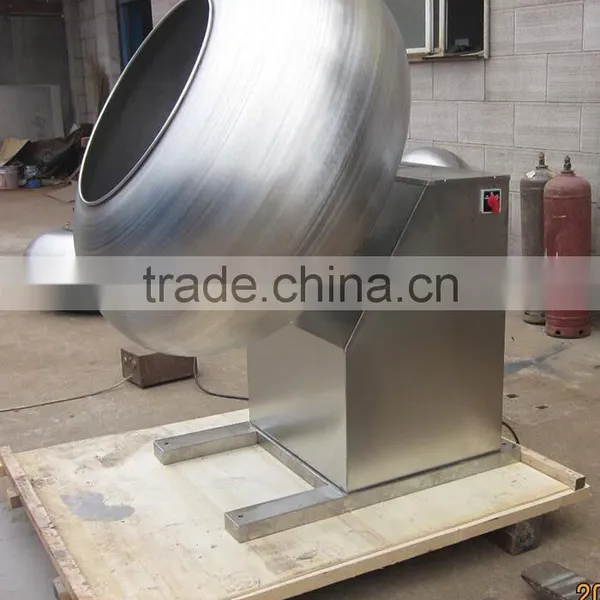

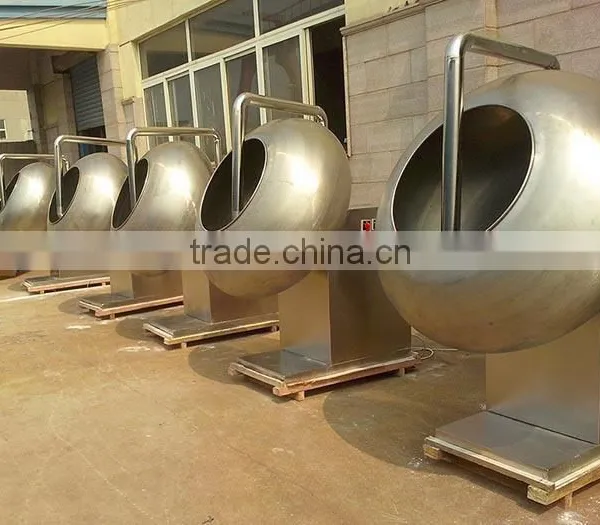

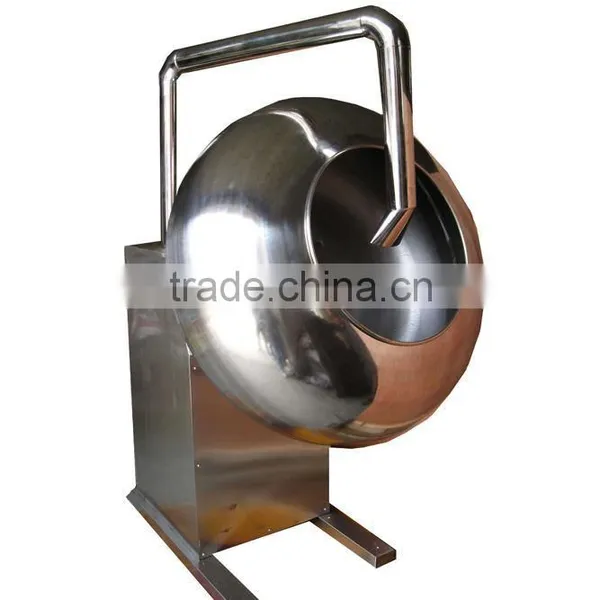

Mobile Polishing Sugar Coating Pan Machine

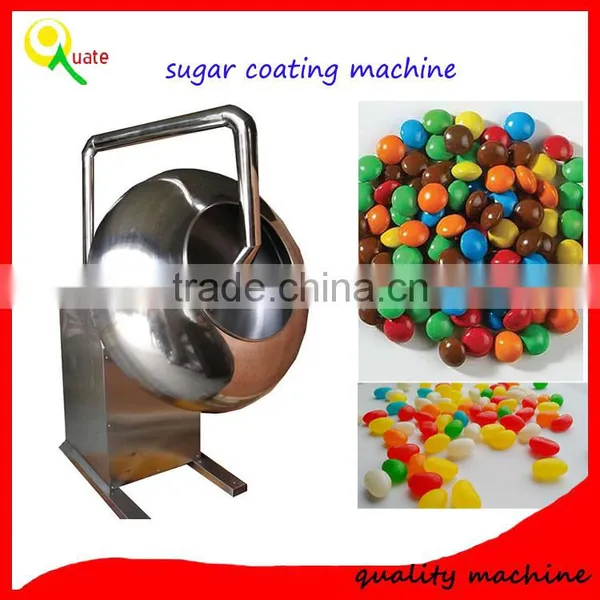

Sugar coating machine introduction
1.This coating pan is made of stainless steel, the complete machine transmission is steady, performance is reliable.
2.It is convenient to wash and maintain, thermal efficiency is high ,it can produce the technological requirement
and regulate coating in one pot of angles at the same time, and is easy to use .
3. It is the ideal equipment in the trade as food
4. Sugar Coating Machine for sugarcoat the tablets and pills for pharmaceutical and food industries.
5. It is used for rolling and heating beans and edible nuts or seeds.
6. As its feature, the sugarcoating round pot is elevated with a elevation 30° to the horizontal, the heater such as gas
or electrical heater can placed directly under the pot. A separated blower with electrical heater is provided with the
machine. The pipe of the blower stretches into the pot for heating or cooling purpose.
7.The thermal capacity can be selected in two levels.
Sugar coating machine introduction working principle
The main working parts of the machine is the angle of inclination of the rotating cylinders materials and hanging
coated mateirals in rotating cylinders driven by the circumferential movement parabolic portfolio, to make it sticky
follow uniform surface smoot, not adhesion between.
Parameter
Model |
QT-1 |
QT-2 |
QT-3 |
QT-4 |
QT-5 |

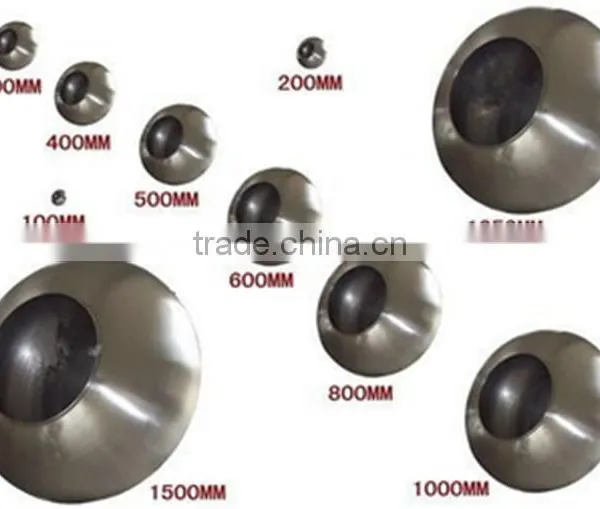

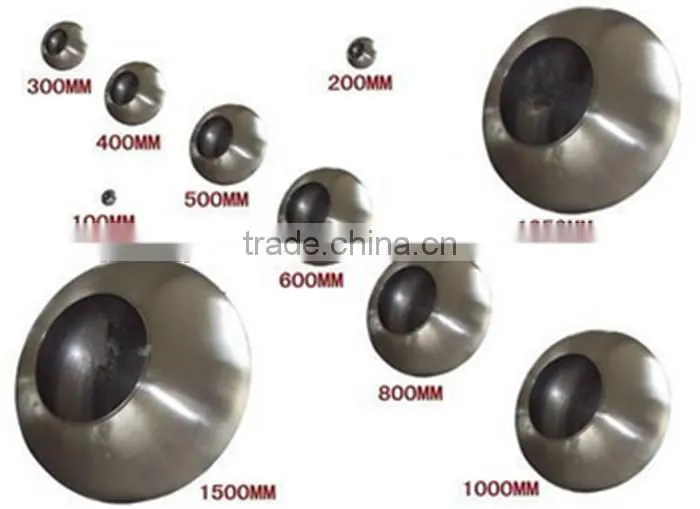

Pan diameter(mm) |
200 |
300 |
400 |
600 |
800 |
Capacity (kg/time) |
1 |
2 |
5 |
15 |
30-50 |
RMP(r/min) |
46 |
46 |
46 |
36 |
36 |
Power (kw) |
0.37 |
0.37 |
0.37 |
0.75 |
1.1 |
Blower Power |
0.075 kw |
0.075 kw |
0.075 kw |
0.075 |
1.1 |
Dimension(L*W*D)mm |
500*350*700 |
500*350*711 |
550*400*800 |
800*600*900 |
1000*800*1430 |
Weight(kg) |
36 |
37 |
38 |
85 |
205 |
Manner of packing
Typr of shipping
