polyethylene pipe

FOB Price

USD $0.3 - $100 / Meter

1000 Meters(Min.Order)

Supply Ability 100000 Meter / Meters per Month
Port Tianjin
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hebei, China	Brand Name:	Derunnong	Model Number:	HDPE Pipe
Material:	PE	Specification:	different	Length:	10-100m
Thickness:	2.0-57.3mm, 2.3-57.3mm	Standard:	GB/T13663-2000

Product Description

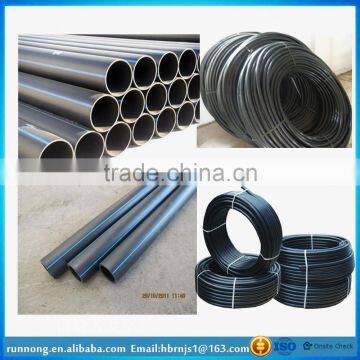

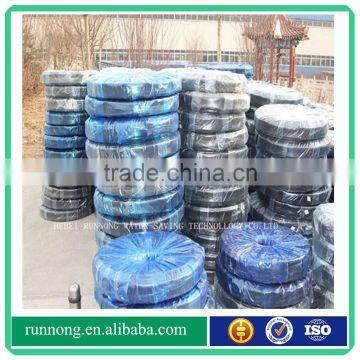

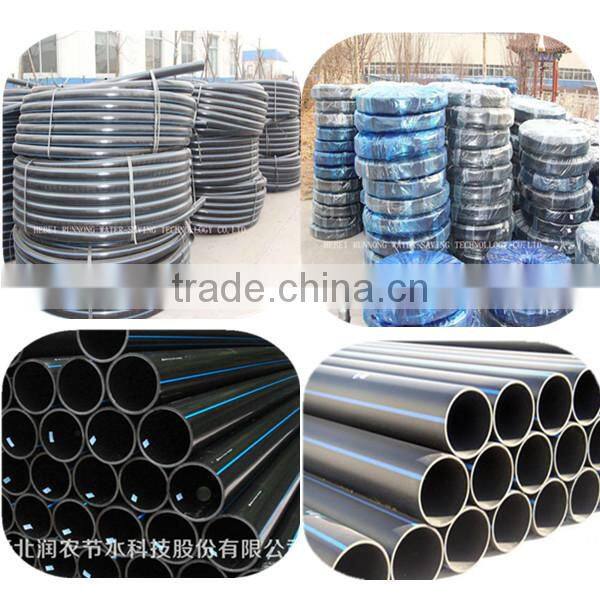

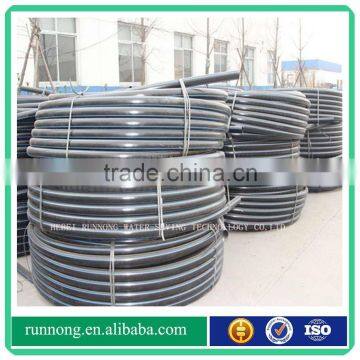

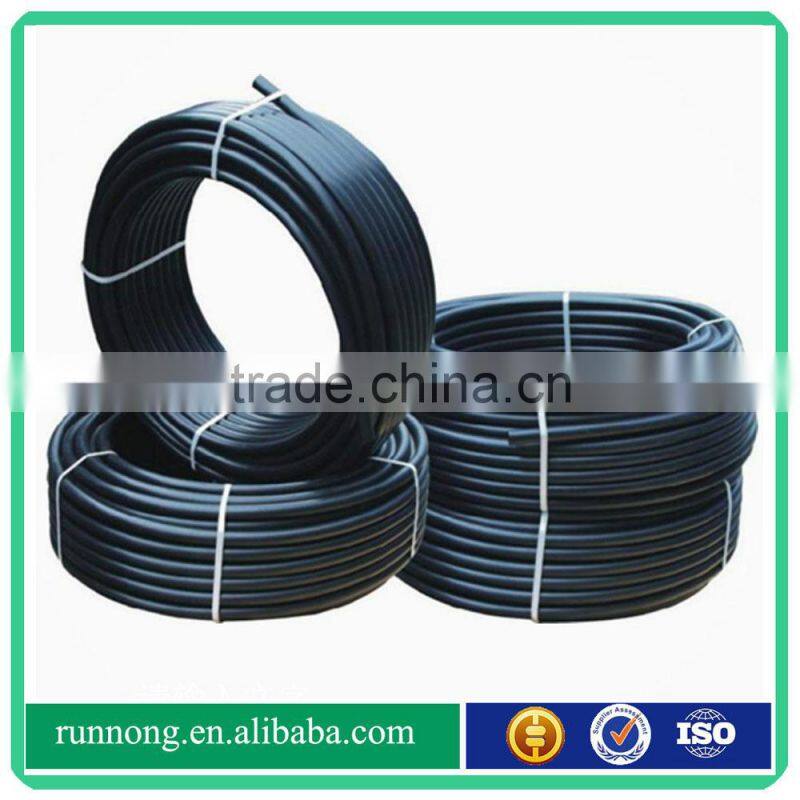

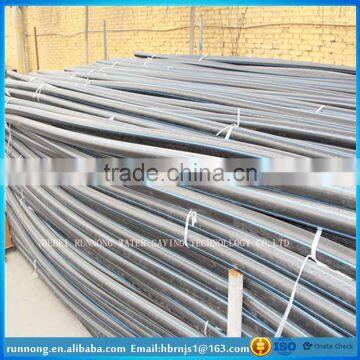

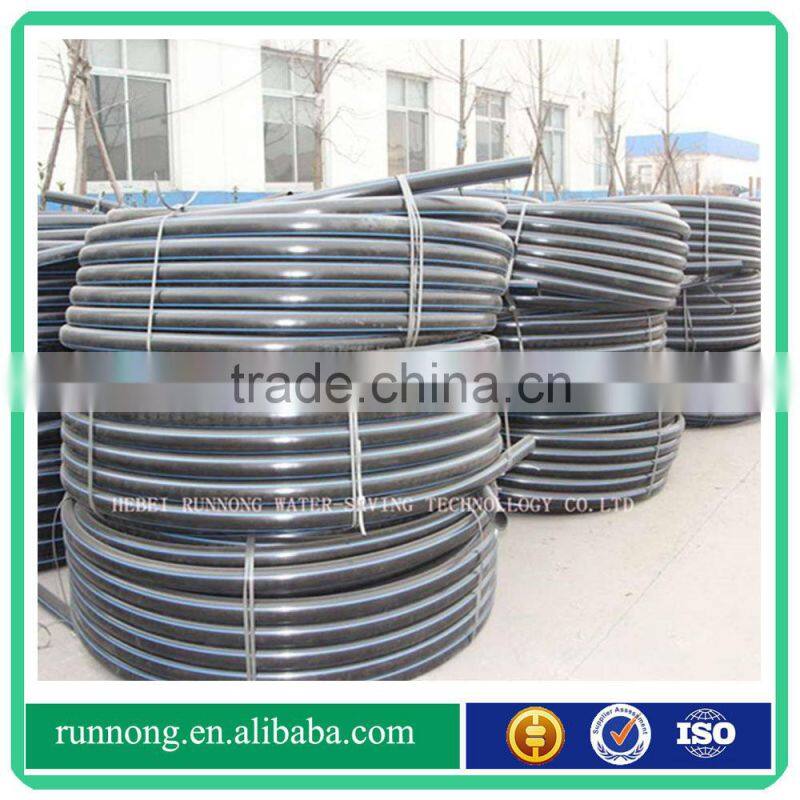

Polyethylene pipe

Specification

Diameter:16-630mm
Material:PE63,HDPE80,HDPE100
ISO

Product Description

PE Tubes

The material of tubes is PE63,PE80,PE100 and other PE resin. Their specifications, dimensions and performance meet the requirements of GB/T13663-2000 standard. Their sanitations meet the related regulations of national Health Ministry. The PE pipes have some advantages like good flexibility, corrosion resistance, light weight and excellent impact resistance and so on.

Pipes and pipe fittings can be connected by thermal-fused socket, thermal fusion and electrofusion to fuse them together. The system is safe and reliable, and the cost of construction is low. They can be applied rapidly in engineering areas. To promote PE pipe, meets the guidelines on development of chemical building materials provided by the National Ministry of construction and the State economic and Trade Commission, and fits the development requirements of the people's living standards.

PE63 Pipe specification

Diameter (mm)	Standard size than
	SDR33	SDR26	SDR17.6	SDR13.6	SDR11
	Nominal pressure(MPa)
	PN0.32	PN0.4	PN0.6	PN0.8	PN1.0
	Thickness	Thickness	Thickness	Thickness	Thickness
16	-	-	-	-	2.3
20	-	-	-	2.3	2.3
25	-	-	2.3	2.3	2.3
32	-	-	2.3	2.4	2.9
40	-	2.3	2.3	3.0	3.7
50	-	2.3	2.9	3.7	4.6
63	2.3	2.5	3.6	4.7	5.8
75	2.3	2.9	4.3	5.6	6.8
90	2.8	3.5	5.1	6.7	8.2
110	3.4	4.2	6.3	8.1	10.0
125	3.9	4.8	7.1	9.2	11.4
140	4.3	5.4	8.0	10.3	12.7
160	4.9	6.2	9.1	11.8	14.6
180	5.5	6.9	10.2	13.3	16.4
200	6.2	7.7	11.4	14.7	18.2
225	6.9	8.6	12.8	16.6	20.5
250	7.7	9.6	14.2	18.4	22.7
280	8.6	10.7	15.9	20.6	25.4
315	9.7	12.1	17.9	23.3	28.6
355	10.9	13.6	20.1	26.1	32.2
400	12.3	15.3	22.7	29.4	36.3
450	13.8	17.2	25.5	33.1	40.9
500	15.3	19.1	28.3	36.8	45.4
560	17.2	21.4	31.7	41.2	50.8
630	19.3	24.1	35.7	46.3	57.2

HDPE80 pipe specification

Diameter (mm)	SDR33	SDR26	SDR17.6	SDR13.6	SDR11
	PN(MPa)
	0.4	0.6	0.8	1.0	1.25
	Thickness	Thickness	Thickness	Thickness	Thickness
20	-	-	-	2.3	2.3
25	-	-	2.0	2.3	2.3
32	-	-	2.0	2.4	2.9
40	-	2.0	2.3	3.0	3.7
50	2.0	2.0	2.8	3.7	4.6
63	2.0	3.0	3.6	4.7	5.8
75	2.3	3.6	4.3	5.6	6.8
90	2.8	4.3	5.1	6.7	8.2
110	3.4	5.3	6.3	8.1	10.0
125	3.8	6.0	7.1	9.2	11.4
140	4.3	6.7	8.0	10.3	12.7
160	4.9	7.6	9.5	11.8	14.6
180	5.5	8.6	10.2	13.3	164
200	6.1	9.6	11.4	14.7	18.2
225	6.9	10.8	12.8	16.6	20.5
250	7.6	11.9	14.8	18.4	22.7
280	8.6	13.4	15.9	20.6	25.4
315	9.6	15.0	17.9	23.2	28.6
355	10.8	16.9	20.2	26.1	32.3
400	12.2	19.1	22.7	29.4	36.4
450	13.7	21.5	25.6	33.1	40.9
500	15.2	23.8	28.4	36.8	45.5
560	17.0	26.7	31.8	41.2	50.9
630	19.1	30.0	35.8	46.3	53.3

HDPE100 pipe specification

Diameter (mm)	SDR26	SDR21	SDR17.6	SDR13.6	SDR11
	PN(MPa)
	0.6	0.8	1.0	1.25	1.6
	Thickness	Thickness	Thickness	Thickness	Thickness
32	-	-	-	-	2.9
40	-	-	-	-	3.7
50	-	-	-	-	4.6
63	-	-	-	4.7	5.8
75	-	-	4.3	5.6	6.8
90	-	4.2	5.1	6.7	8.2
110	4.2	5.3	6.3	8.1	10.0
125	4.8	6.0	7.1	9.2	11.4
140	5.4	6.7	8.0	10.3	12.7
160	6.2	7.6	9.5	11.8	14.6
180	6.9	8.6	10.2	13.3	16.4
200	7.7	9.6	11.4	14.7	18.2
225	8.6	10.8	12.8	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	15.9	20.6	25.4
315	12.1	15.0	17.9	23.2	28.6
355	13.7	16.9	20.2	26.1	32.3
400	15.4	19.1	22.7	29.4	36.4
450	17.3	21.5	25.6	33.1	40.9
500	19.2	23.8	28.4	36.8	45.5
560	21.5	26.7	31.8	41.2	50.9
630	24.2	30.0	35.8	46.3	57.3

Features and advantages

PE tubes are non-toxic,do not contain heavy metal additives,are against scaling,and do not grow bacteria.They solved the problem of secondary pollution of drinking water.
Corrosion resistant to much chemical,Eletro-chemical corrosion free.
I with smooth inner side,extremely low friction coefficient,the flow of medium increases and it has excellent wear resistance.
Light weight and convenient transportation and installation.
Unique fused connection,hot melt and docking socking socket-connection technology enable the strength of interface are highter than the pipe body to ensure that the interface is safe and reliable.
Welding process is simple,construction is convenient,and comprehensive cost is low.

Application field

Urban and rural water supply pipe
Drainage pipes
Chemical liquid conveying pipe
Tubes for telecommunications
Drilling tubes
Mining slurry Transportation pipeline
Air conditioning cooling water pipline
Crops irrigation pipeline
Power Cable protection pipeline
Oil transportation pipeline

PE PIPE

PE fittings
