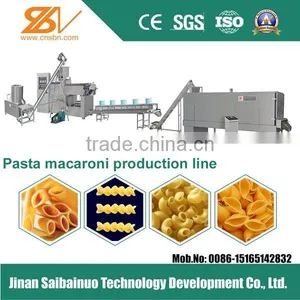

Help CenterIndustrial Automatic Shule Pasta Making Machine
Related Products
-
Automatic Penne Pasta Making MachineUS$ 1,000 - 50,000MOQ: 1 Set -
150-1000kg/h Automatic Fish Feed Manufacturing MachineryUS$ 20,000 - 50,000MOQ: 1 Set
-
Hot Sale Automatic Aquarium Fish Meal Plant MachineUS$ 30,000 - 90,000MOQ: 1 Set
-
Pasta MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Pasta Macaroni MachineUS$ 10,000 - 50,000MOQ: 1 Set
How is pasta made?
1.Raw material
Semolina,wheat flour,potato strach,corn strach etc.
2.Final products

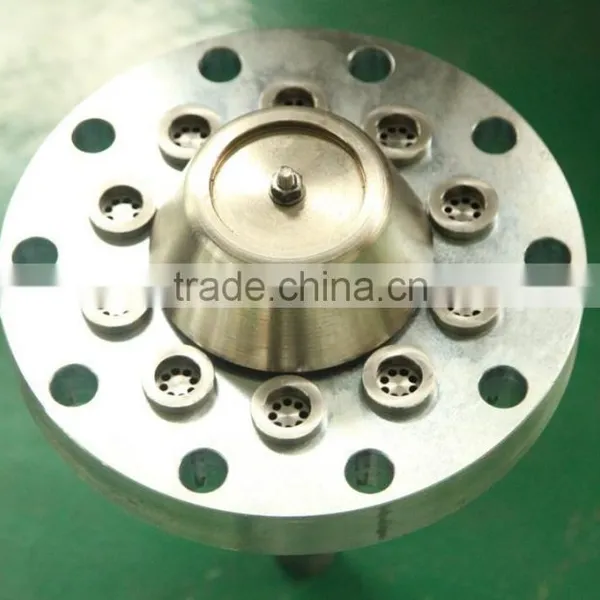

Various shaped of pasta can be made by just changing the extruder dies.In addition,this line also can make pellet chips,snacks food etc.
3.Capacities
120-150kg/hr & 250-300kg/hr & your demand...

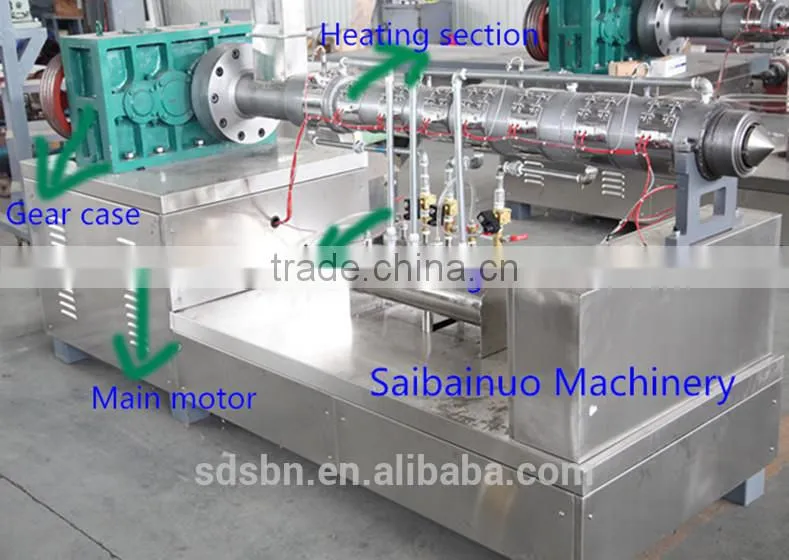

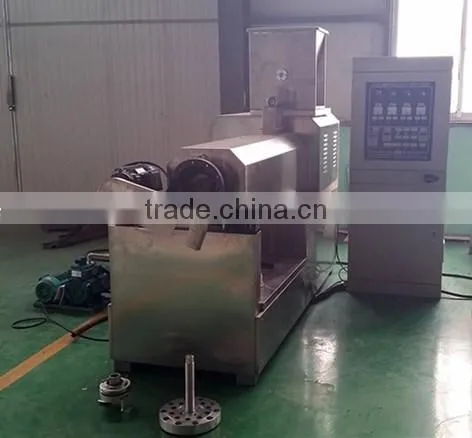

4.Extruder
The raw materials are mixed with a precise dosing mechanism to maintain constant flow and obtain homogenous dough. The pressing phase is carried out with a single screw system specially designed to ensure optimal semolina hydration, mixing, compression and extrusion. Once the dough is kneaded to the required consistency it is put through fitted dies to produce the required shapes and cut to length.

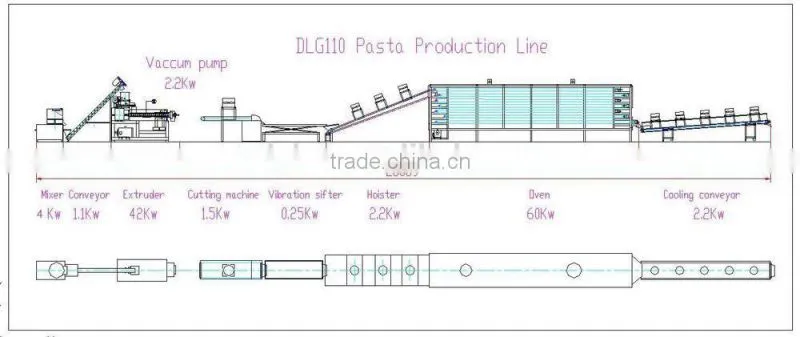

5.Flow chart
Mixer---Screw Conveyor---Single-screw extruder---Cutting machine---Sifter---Hoister---7-layer 8-meter oven---Cooling conveyor
6.Technology parameters
| NO. | Machine |
Intalled power (kva) |
Real power(kw) | Specification |
| 1 | Mixer | 4 | 2.8 | 25kg/5min Mixing the raw material and other additives fully. |
| 2 | Screw conveyor | 1.1 | 0.77 | Screw turns to make the raw material convey in the sealed tube,no leaking and no pollution. |
| 3 | Single-scew extruder | 42 | 30 |
1.Single screw. 2.Main motor,22kw. 3.5 heating bands outside the barrel.2kw/band. 4.Cutter motor,1.1kw. 5.Water-cooling system contril the temperature. |
| 4 | Cutting machine | 1.5 | 1.05 | Extend the long pasta from extruder to cutting machine,then form various shape. |
| 5 | Sifter | 0.25 | 0.8 | Motor make machine shake to cooling pasta and sperating every pieces of pasta. |
| 6 | Oven | 62.2 | 44 |
Electric oven,real power 44kw. Diesel burning power, consumption 8liter. Gas burning power,consumption 16-18cubic meter. |
| 7 | Cooling machine | 2.2 | 1.54 | Conveyor and funs make the pasta cool and shape. |

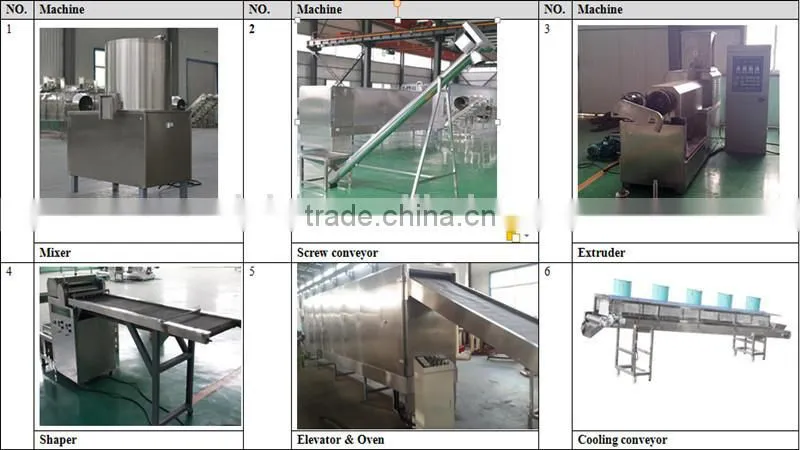

7.quipments list
Every details will be decided by the customrs and engineers.Every parts of the machine will be the best quality.Every step of the production will be done by the experienced workers.
Before order service
1.Sales manager Sunny Bu contact with you on time,supply with the company and machine information you need.
2.Technique engineers design and develop the process and equipments according to the customer's situation.
3.If necessary,technique engineers can help to make workshop design with electricity power,diesel power,gas power,water supply,raw material storage and final product storage etc.
During order service
1. We will pick you up at the airport or tain station and arrange the accommodation.
2. Invite you to visit our company and factory. Technique test the formula and machine,also take the video for customers.
After order service
1.Saibainuo company wil dispactch the engineers to customers'factory install the machine and teach the workers.
2.Sales manager will return email regularly,inquiry customers' machine running and need.
1 How long will your company deliver goods after payment down?
We will deliver foods in 25 days after payment down.
2 How much is the area?
The space is based on the machine you choose. We have three models processing line SLG65 ,SLG 77 and SLG85. . If you have any question ,please let m know.
3 What is the nearest port?
The nearest port is QINGDAO PORT. Usually we deliver foods in this port .If you require other port, we could arrange.
4 Can the machine change?
If you have any problems in your daily production, welcome to contact us. We will try our best to serve you. Our engineer can go to solve the problems if needed.Thus, if the machine does not suit you, you can return to us and you will be responsible for the transportation expense.
Do not hesitate to contact us anytime before and after your order through the clicking “TRADE MANGER” and we are committed to your 100% customer satisfaction in 24 hours.
Our company's web site is /en/
