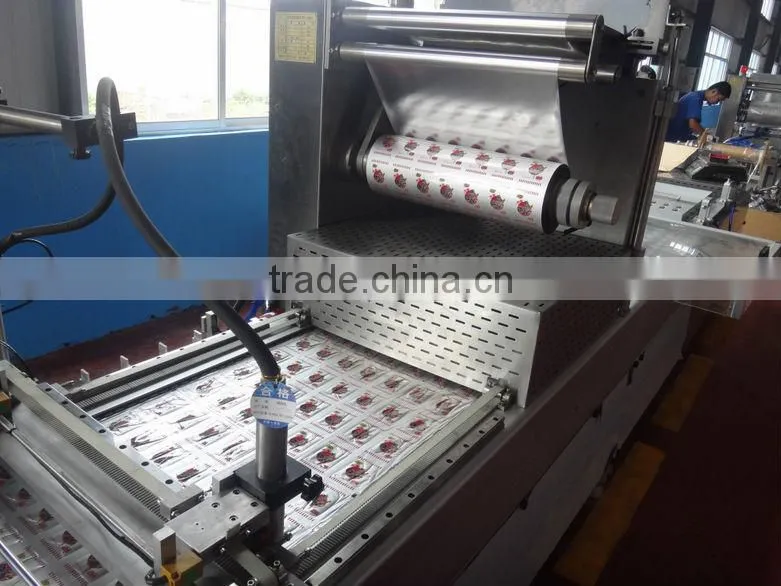

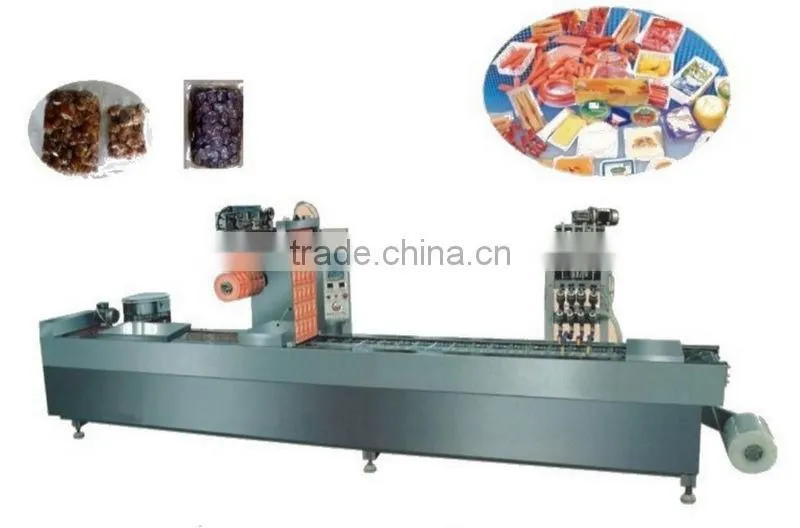

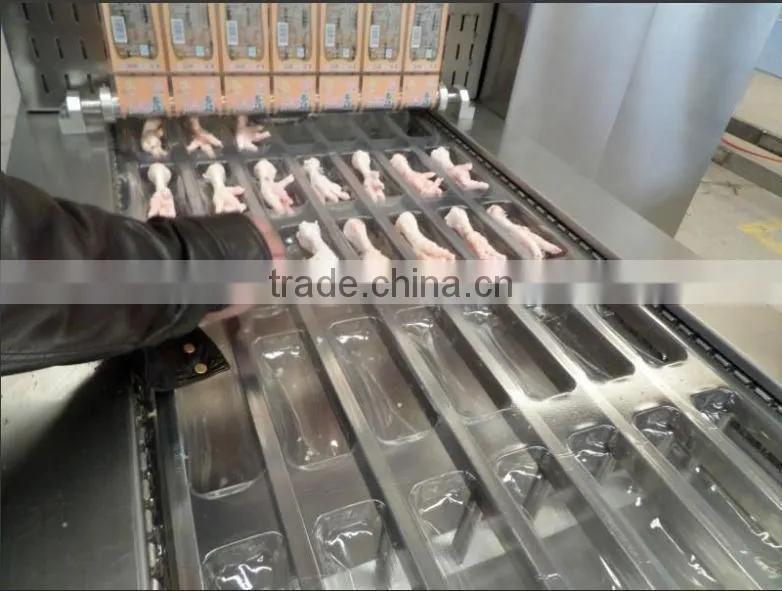

continuing vacuum stretch film packing machine bread stretch vacuum packing machine
Description of continuing vacuum stretch film packing machine bread stretch vacuum packing machine
Vacuum packing machine applies to vacuum, gas added and tight packing for all kinds of plasstic bag, aluminum foil bag. It can supply vacuum package for meat products, pickle products, marine products, frozen products, cooked food, fresh vegetable, medical products, chemical products, metal products, electrical components, and so on.
Features of continuing vacuum stretch film packing machine bread stretch vacuum packing machine
|
1.Frame: After high precision planer and milling wash, it has the advantages of high mechanical strength, stable structure, no deformation, good accuracy and other significant characteristics |
|
2. Vacuum pump: Fitted with Germany original “Elmo-Rietschle” and “BUSCH” pump, this machine has features of high vacuum,stable quality, low noise, long durability and so on. |
|
3.Gas path system: It adopts AIRTAC cylinder and pneumatic valve, which make the work efficiency improved about 10% |
|
4. Operation system: Adopt world-famous brand Japanese “OMRON” spare parts, touch screen, Programmable Logic Controller(PLC) and stepping system |
5.Mould changing: Moulds can be designed as required |
|
6.Slitting system: Adopt advanced transverse and slitting systems, intelligent adjustment can be finished on touch screen, no need exchange, easily handle |
|
7.Recycling system: Fitted with leftover material recycling system, which ensured the hygiene requirements of the production environment |
Specification of continuing vacuum stretch film packing machine bread stretch vacuum packing machine
| Model | RL-LZ420 | RL-LZ320 | RL-LZ520 |
| Volt | 380V.50HZ | 380V.50HZ | 380V.50HZ |
| Power | 10KW | 8KW | 12KW |
| Machine size | 5200×920×1750mm |
3800×900×1600mm | 4930×1100×1700mm |
| Upper film width | 393mm | 293mm | 496mm |
| Lower film width | 422mm | 322mm | 520mm |
| Vacuum degree | ≤0.5mbar | ≤0.5mbar | ≤0.5mbar |
| Compressed air pressure | ≥0.5Mpa | ≥0.5Mpa | ≥0.5Mpa |
| Cooling water | ≥0.15Mpa | ≥0.15Mpa | ≥0.15Mpa |
| Weight | 1300kg | 900kg | 2100kg |
