Help CenterHigh Quality CE Approved Wood Pelletizing Machine
Related Products
-
Floating Fish Feed Pellet Machine for Small and Middle Sized FarmUS$ 1,200 - 20,000MOQ: 1 Set -
China Supplier Durable China Pellet MachineUS$ 1,000 - 3,000MOQ: 1 Set
-
Mass Supply Great Quality Biomass Fuel Pellet MachineryUS$ 1,000 - 3,000MOQ: 1 Set
-
Competitive Price High Quality Pellet Machine MakerUS$ 1,000 - 3,000MOQ: 1 Set
-
Large Supply High Quality Pellet Machine UsaUS$ 1,000 - 3,000MOQ: 1 Set
Working principle of Wood Pelletizing machine
Pelletizing machine is one of the biomass molding equipment.
It can make powdered biomass materials into pellets.
The starting materials for the production of pellets are pressed by the pressing roller in the matrix.
Due to the pressure and friction in the matrix, the starting materials are heated to a high temperature (nearly 60~80 °C). As a result of pressure and temprerature increasing, the materials were compressed into pellets. The output pellets will have very high strength after cooling.
Wood pelletizing machine Models
Wood pelletizing machine is mainly used for wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit bunch, pulverized coal or waste paper, ect.
There are two kinds of wood pelletizing machine: ring die & flat die.

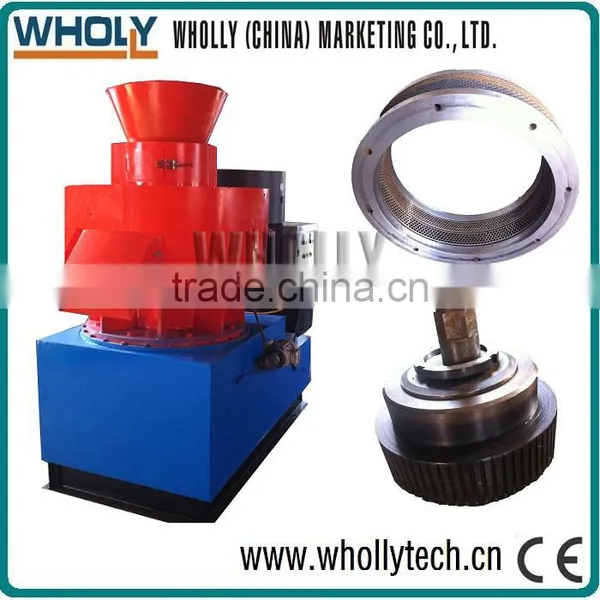

Our ring die wood pelletizing machine are FD series. Automatic lubrication system.
| Model No. | FD450 | FD550 | FD800 | FD1000 |
| Power | 55KW | 90KW | 132KW | 160KW |

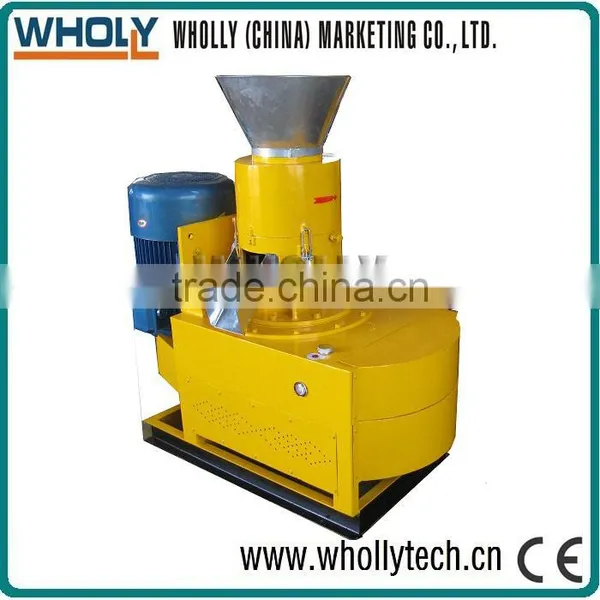

Our flat die wood pelletizing machine are SKJ series. Mainly used for home and small process plant.
| Model No. | SKJ200 | SKJ250 | SKJ300 | SKJ350 | SKJ450 | SKJ550 | 880 | SKJ1000 |
| Power | 7.5KW | 15KW | 22KW | 30KW | 37KW | 45KW | 90KW | 110KW |
We also have five WKL series wood pellet machines, relative smaller, suitable for home use and small plant.
| Model No. | WKL225 | WKL229 | WKL295 | WKL335 | WKL395 |
| Power | 7.5KW | 11KW | 15KW | 22KW | 30KW |
Advantages of the wood pelletizing machine

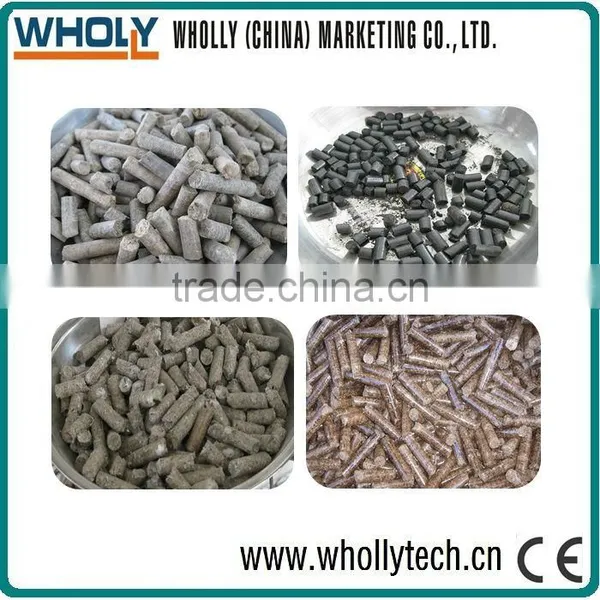

1. Advantage of our wood pellet machine is structure closely, easy to use, run stably; Advantages of output pellets is high density, high fuel value, low moisture and low ash content.
2. Our SKJ350~SKL1000, they are big models. And the gearbox are full gears reducer, warranty is 5 years. The lubricate system is automatic. There is a lubricant pump working between gearbox and main shaft bearings. That can guarantee the bearings to work long time.
3. All of our wood pelletzing machine have got CE approved already. And they can meet European standard.
