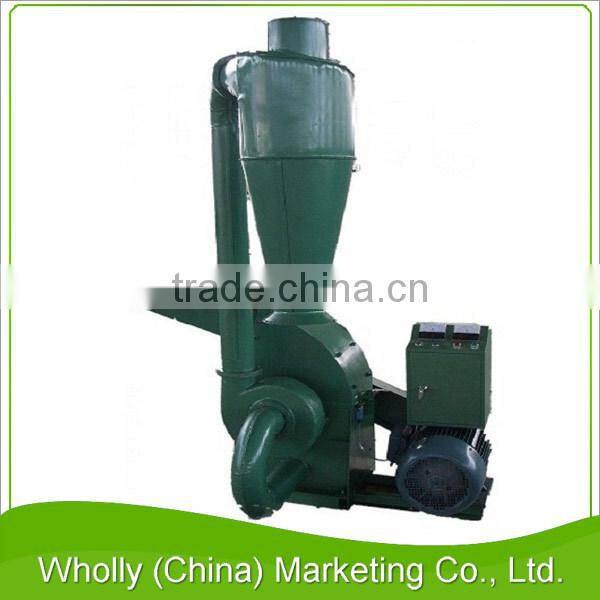

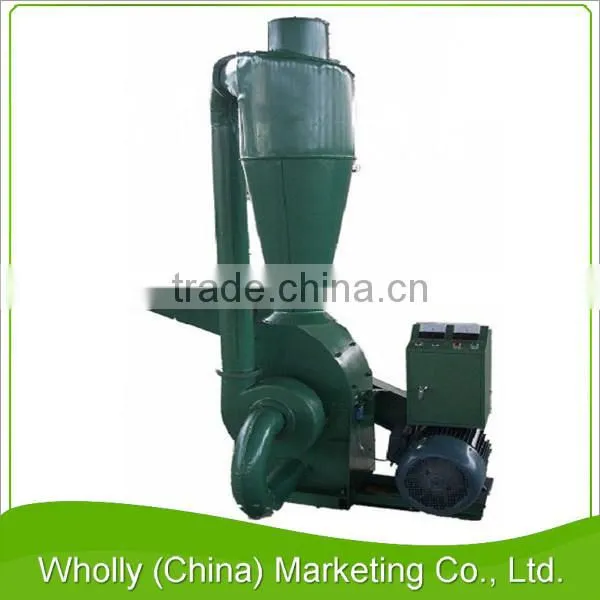

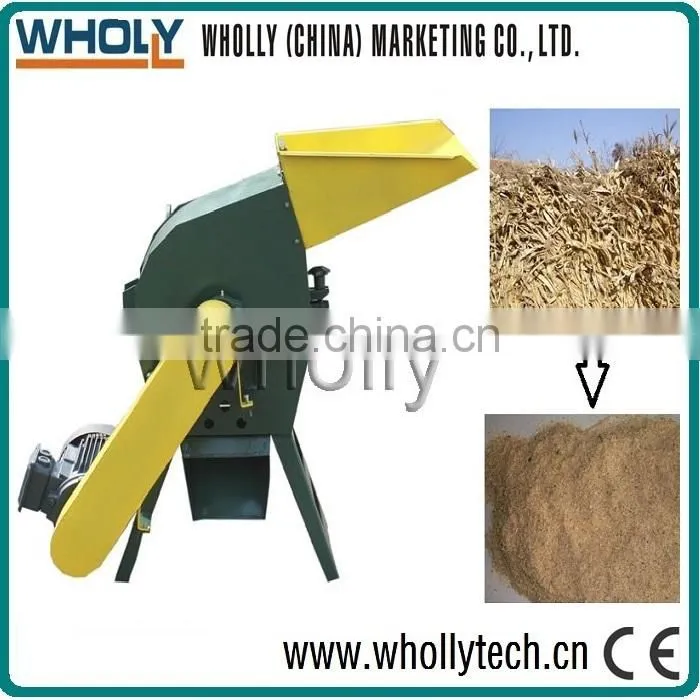

China Leading Manufacturer multifunctional small corn hammer mill for sale
1.Simple structure and large crushing ratio.
2.High production efficiency.
3.Uniform particle size.
Introduction of corn hammer mill for sale
small corn hammer mill is developed according to the need of the industry production on the basis of year’s study and design. Because of the rational design, compact structures, safe, durable, high production efficiency, it receives a good effect after the promotion. The whole set equipment is driven by a motor.
Working Principle of corn hammer mill for sale

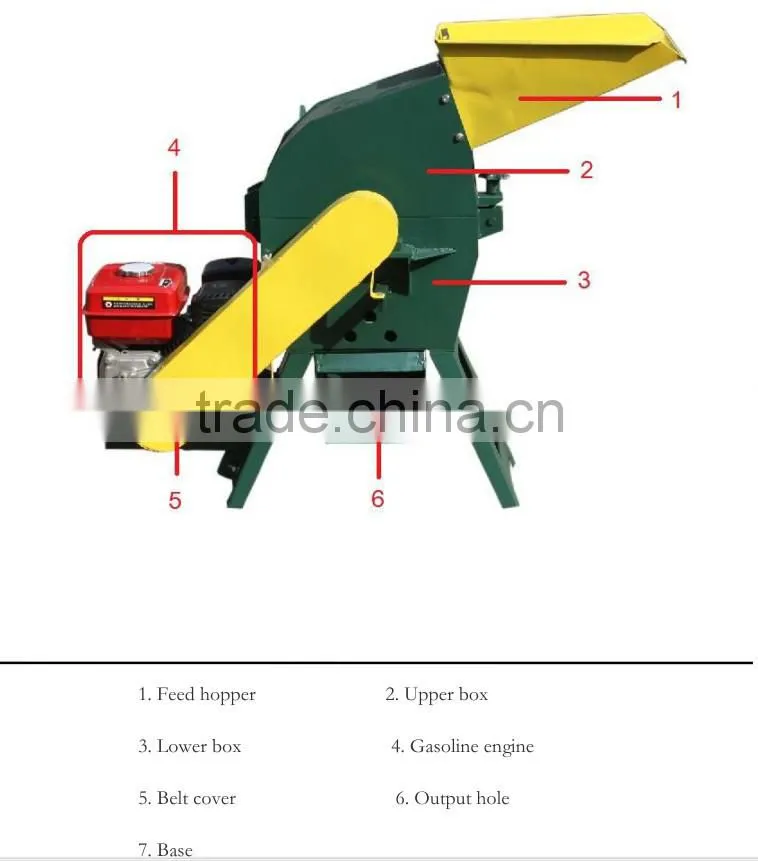

The main working part of Hammer mill is the rotor with hammers. The rotor consists of main shaft, disk, hinge pin and hammers. A sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
| Model No. | Remark | Power | Putput(kg/h) | Packing size(cm) | Net weight(kg) | Gross weight(kg) |
| CF158 | CE motor | 1.5kw/220V | 50~180 | 48*58*63 | 75 | 95 |
| CF198A | gasoline engine | 7.5hp | 150~450 | 90*50*102 | 120 | 140 |
| CF198B | CE motor | 4kw/380V | 150~450 | 90*50*102 | 120 | 140 |
| CF420A | diesel engine | 22hp | 400~850 | 147*74*111 | 350 | 390 |
| CF420B | CE motor | 11kw/380V | 300~800 | 112*82*107 | 320 | 360 |
| CF500A | diesel engine | 55hp | 850~1500 | 150*142*123 | 800 | 840 |
| CF500B | CE motor | 22kw/380V | 600~630 | 124*97*106 | 600 | 630 |
Wholly (China) Marketing Co., Ltd. is one of the leading supplier of biomass macinery in China.hammer mill is one of our main products.
We have more than 10 years exporting experience about the biomass machinery. And choose us, you will get a very trustworthy partner. The quality of our products and service of our sales are A-class.
If you have any question, feel free to contact us:
