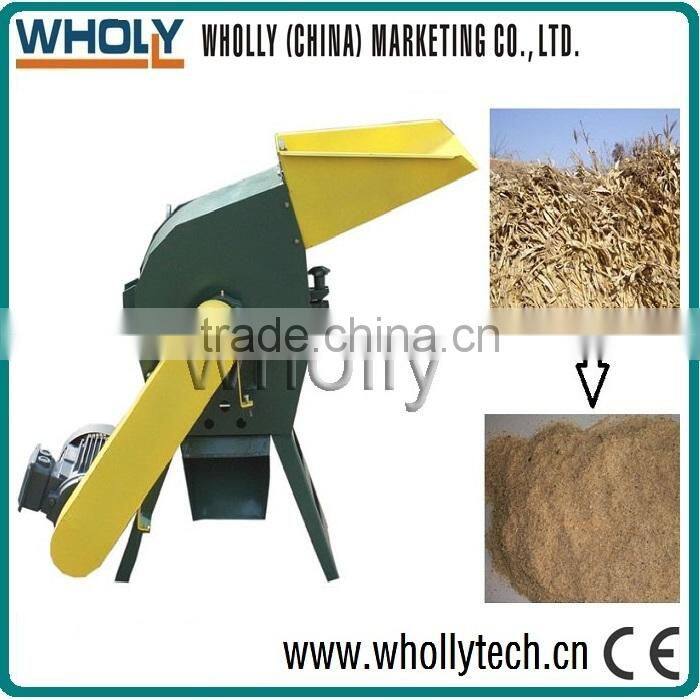

2015 Multifunctional sawdust rice husk hammer mill for wood chip
- 500 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | WHOLLY |
Model Number: | CF | Type: | Other, Mill Machine, Briquetting Machine | Voltage: | 220v/380v |
Power(W): | 2.2kw/4kw/7.5kw/11kw/22kw | Dimension(L*W*H): | Different machine have different dimension | Weight: | 500 kg, According to your machine |
Certification: | CE,SGS,ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

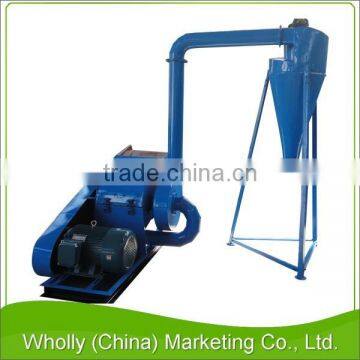

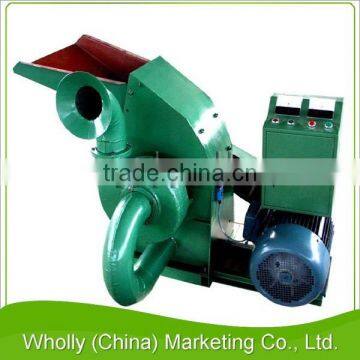

2015 Multifunctional sawdust rice husk hammer mill for wood chip
Specifications
1.Simple structure and large crushing ratio.
2.High production efficiency.
3.Uniform particle size.
4.Best service.
2015 Multifunctional sawdust rice husk hammer mill for wood chip
Introduction of 2015 Multifunctional sawdust rice husk hammer mill for wood chip
Hammer mill is developed according to the need of the industry production on the basis of year’s study and design. Because of the rational design, compact structures, safe, durable, high production efficiency, it receives a good effect after the promotion. The whole set equipment is driven by a motor.
Working Principle of 2015 multifuncational sawdust rice husk hammer mill for wood chip

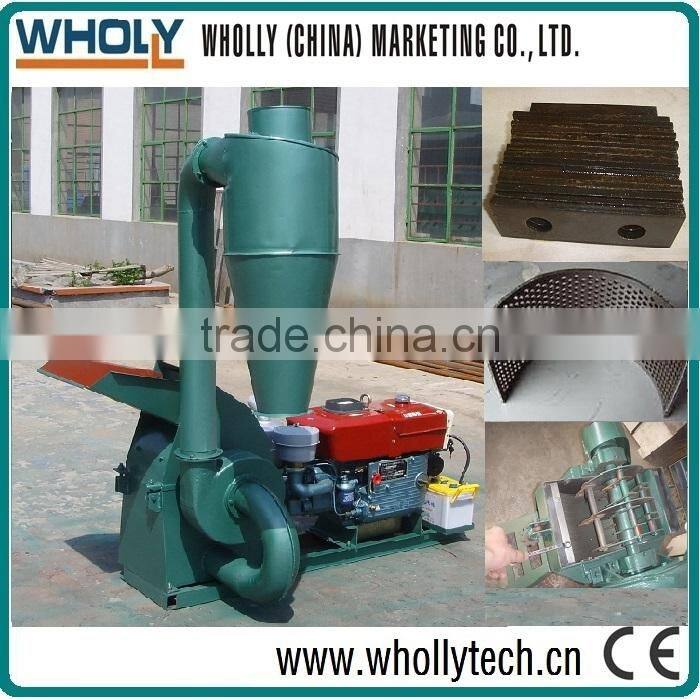

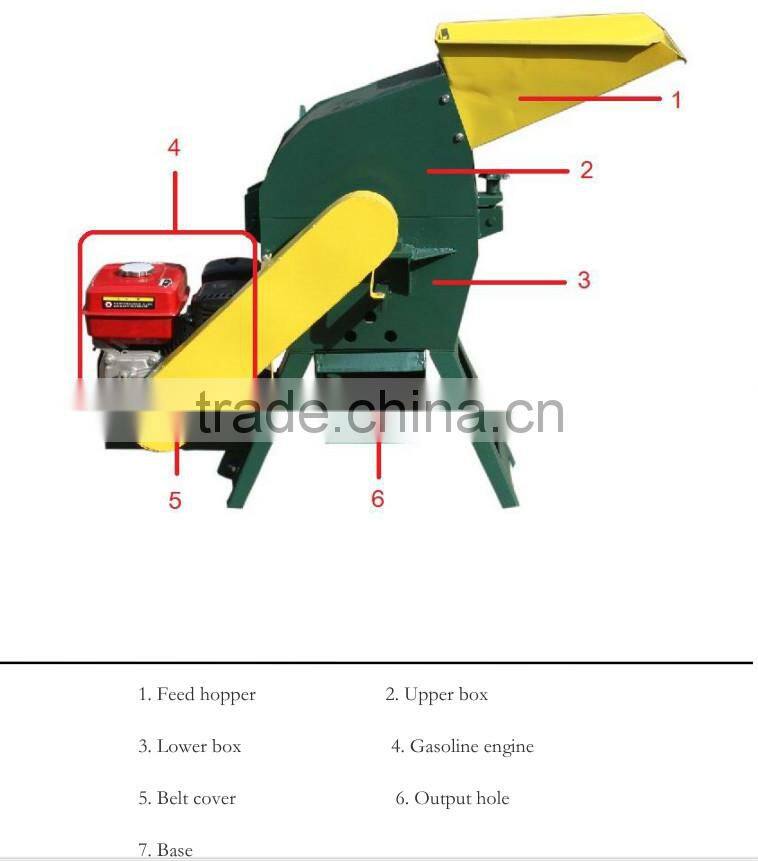

The main working part of Hammer mill is the rotor with hammers. The rotor consists of main shaft, disk, hinge pin and hammers. A sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
Model No. | Remark | Power | Putput(kg/h) | Packing size(cm) | Net weight(kg) | Gross weight(kg) |
CF158 | CE motor | 1.5kw/220V | 50~180 | 48*58*63 | 75 | 95 |

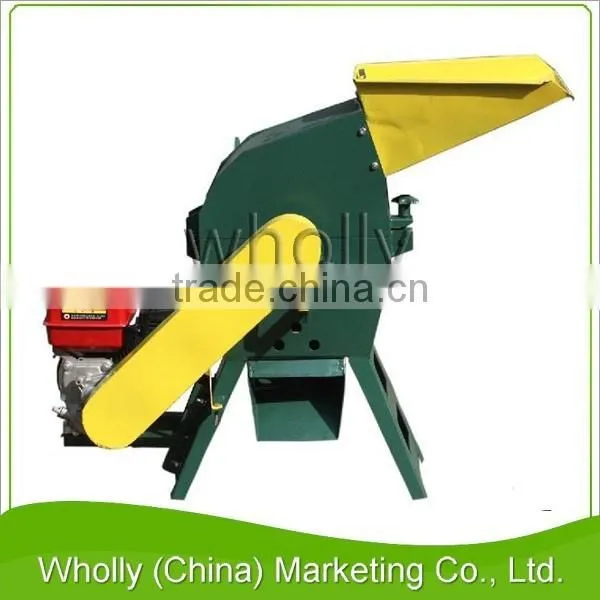

CF198A | gasoline engine | 7.5hp | 150~450 | 90*50*102 | 120 | 140 |
CF198B | CE motor | 4kw/380V | 150~450 | 90*50*102 | 120 | 140 |

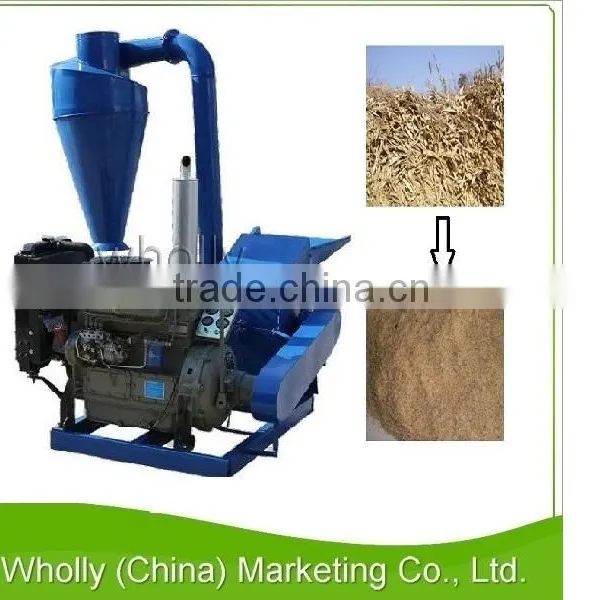

CF420A | diesel engine | 22hp | 400~850 | 147*74*111 | 350 | 390 |
CF420B | CE motor | 11kw/380V | 300~800 | 112*82*107 | 320 | 360 |
CF500A | diesel engine | 55hp | 850~1500 | 150*142*123 | 800 | 840 |
CF500B | CE motor | 22kw/380V | 600~630 | 124*97*106 | 600 | 630 |
Wholly (China) Marketing Co., Ltd. is one of the leading supplier of biomass macinery in China.hammer mill is one of our main products.
We have more than 10 years exporting experience about the biomass machinery. And choose us, you will get a very trustworthy partner. The quality of our products and service of our sales are A-class.
Why choose us
(1) We have produced the biomass machine for more than 10 years.
(2) Our clients are all over the world, main in European.
(3) We all have passed the CE, ISO.
(4) We have better service attitude than most of Chinese suppliers.
If you have any questions, please contract us anytime
Contact Us
- Wholly (China) Marketing Co., Ltd.
- Contact nameDean Wholly
- Phone86-532-85841183
- Address12 NANJING ROAD,QINGDAO,CHINA Qingdao,Shandong
