Note：
1) SKD-11 is stell grade of Japanese JIS standard.
2)Max. capacity of the machine is subjece to diameter of screen mesh size and composition of material.
3) To avoid plastic from sticking to the blades,all materials should be crushed at normal temperature.
4) "P" Adjustable Paddle-blade type, without "P" adjustable claw-blade type
Features :
1)Quiet and Efficient .
2)Blades are made of SKD11.Adjustable blade can be sharpened up while blunt and reused to prolong its life.
3)Special claw and paddle blade designs can crush any hard or soft material extremely easier.
4)The separation design of the crushing chamber and material bin allows the mesh screen to discharge and clean easily.
5)QE4050 up unique the cooling water cycle system,which transfers the heat out,prevent granulated material from melting and lumping .
6)The compact and sturdy construction decides its function would not be affected by long term usage.The whole machine is made of stainless steel.
7)Heavy burden type bearing with oil-sealed device and soundproof ply can keep the unit from shocking and noise,and prevent the material form pollution.
8)Equipped with protective device for motor and chained power-off system to ensure safe operation,and cleaning is also safe .
9)Cutting chamber made of high rigidity material, and easy for maintenance and repairing.Optimized structure and hermetic double sound-proof layers keep noise level low.
10)QE series granulator electrical components use trusted international brands.
Blade of claw-blade
Blade is made of impored material, SKD-11, torough special manufacture process and heat treatment,the blades become mote durable.
Blade of paddle-balde
Blade can be sharpened up while blunt and reused to prolong its life.

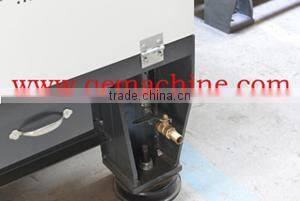

Cooling device
It has unique cooling water cycle system, which transfer the heat produced to outside area, can prevent granulated material from lunping efficiently.
Feature: It has unique cooling water cycle system, which transfer the heat produced to outside area, can prevent granulated material from lunping efficiently.
Screen
The separation design of the crushing chamber and material bin allows the mesh screen to discharge and clean easily.
Electronic component
Siemens.

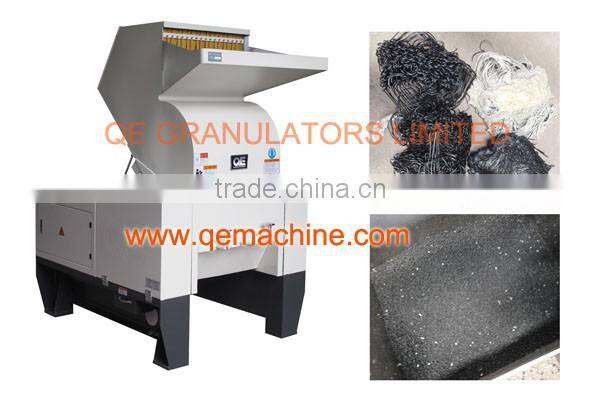

whole machine
Feature:The whole machine is made of stainless steel.
Its comtact and sturdy comstruction decides its function would not be affected by long term usage.
Heavy buredn type bearing with oil-sealed device and soundproof ply can keep the unit from shocking and noise, and prevent the material from pollution.
Equipped with protective device for motor and chained power-off system to ensure safe operation,and also equipped with protective device for the safe cleaning.
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
Warranty 12 months since machine arrives clients factory
