CS 2015 Hot Sale High Quality Self-Raising Tower Crane QTZ125 (TC6015) Tower Crane

QTZ125 (TC6015) Tower Crane

Our manufactruing qualification is from AQSIQ

Your personal visit to our factory is warmly welocme,and we hope to do our best host for you then.

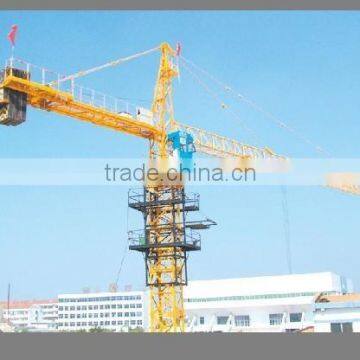

QTZ125 (TC6015) Tower Crane is a kind of upper-slewing fixed type tower crane.

QTZ125 (TC6015) Tower Crane can be used into every kind of industrial and civil construction, especially suitable for the construction site which is narrow and landform is complicated.

QTZ125 (TC6015) Tower Crane  has hoisting, slewing and trolleying mechanisms.

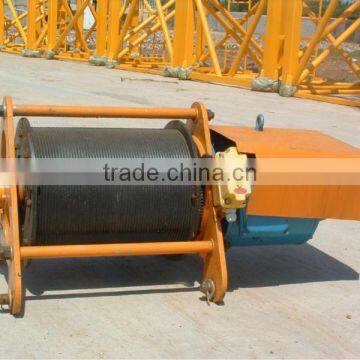

self erecting tower cranes  can work respectively or together to raise working efficiency. Hoisting mechanism adopts double-speed electromotor

QTZ125 (TC6015) Tower Crane has two kinds of work speed: Lifting and slowly in position, so as to satisfy different work requirement. Jib can rotate 360° Freely. Level arm frame, trolley range-changing, agile and reliable, lifting in position is accurate.

self erecting tower cranes  can satisfy vertical and level transport demand of construction at a time.Safety devices of this tower crane are reliable

tower crane for Turkey market is equipped with reliable mechanical type moment limiter and lifting weight limiter, it also has lifting height, work range and slewing limiters, so as to ensure the work safety.

QTZ125 (TC6015) Tower Crane is designed reasonably, quality is high, structure is compact, and operation is convenient; It is an ideal liftingmachine of construction team.

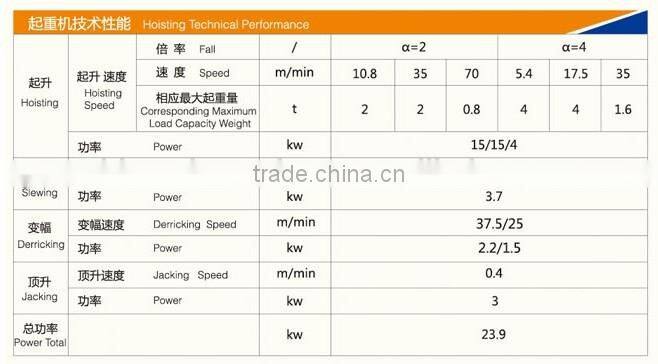

 Spec:  QTZ125 (TC6015) Tower Crane

1. Version:       Stationary on fixing angles type

2. Jib Length:    60M

3. Max. Load:    8Ton

4. Tip Load:       1.5Ton

5. Hook Height:    ( Free Standing Height 35M)

6. Section Size: 1.835*1.835*2.8m

7. Section Quantity:  11 units

8. Power Supply:   380V50Hz/440V50Hz;

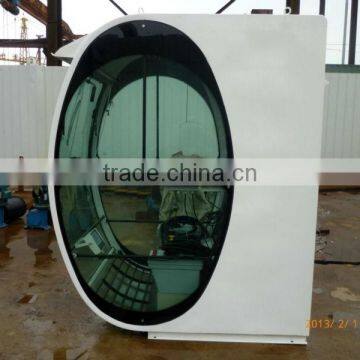

9.. Structure:     1 set of fixing angels;  11units mast sections; slewing mast; slewing turntable and cabin with air condition; counter-jib; 48m jib;  29m electrical cables; set of anchorage frame; with full set accessories and safety protection device, Schneider Inverter, PLC, electrical components and plug connection.

10. Safety Device: 1) Hoist height limit 2) Trolley distance limit 3) Over speed limit

4) Over load limit5)Trolley moment limit 6) Slewing angle limit 7) Emergency stop button

8) Obstruction light (tip of jib, tower head and counter-jib) 9) Wind lock device

 Advantages:  QTZ125 (TC6015) Tower Crane
1. Elements from Simens and Schneider are adopted in electrical system, performance of which is stable and reliable.
2. Main ports of tower crane is welded with CO2 gas protected welding and full-auto submerged arc welding that makes the stability of the whole machine be improved considerably.
3. The whole machine runs stably with good adjustable performance.

Performance introduction:

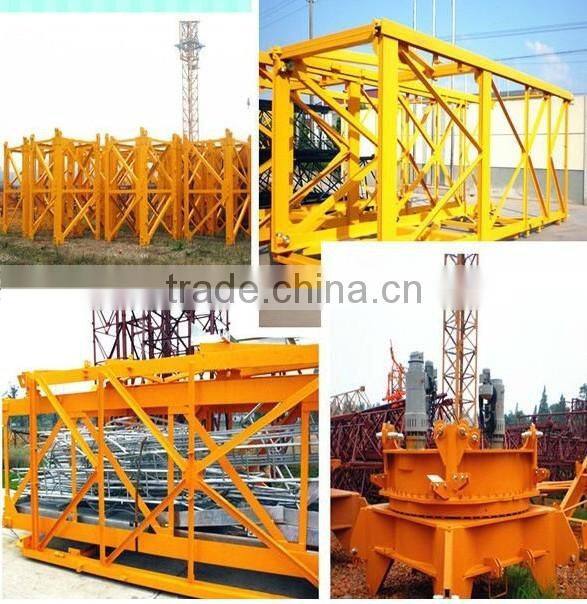

The standard section of QTZtower crane is manufactured using on-chip-type or standard section. Rotary uses double-slewing mechanism, hoisting mechanism is dragged by double-speed wound motor, run smoothly.

4.High working speed and efficiency, great speed-adjustment performance, and stable running;
5.Wide working range, various working methods, and great applicability;
6.The whole machine is of reasonable arrangement and beautiful in design;
7.Complete safety devices, all mechanism are equipped with brake device to ensure the safe and reliable running.
