Specifications

animal feed pellet machinery for making feed pellets
1.Engineers available overseas
2.CE/ISO approval
3.Cost-effective

animal feed pellet machinery for making feed pellets

Pls kindly note: to save your best time



You can contact us directly



by Skype:oncle_hugo



Email:info AT



+86-13884987877







Brief introduction of Home Use Animal Pellet Making Machine:



1 the   animal feed pellet making machine are best selling for these days, this animal feed pellet making machine are  specially for home use. it is made specially to press feed pellet from grain such as corn, wheat,

   soybean, bean.



2 it can press pellet with 3-12mm diameter, the finished pellet length can be adjusted by device

   on the machine according to cusmtoer's special order.



3 there is no adhesive and chemical processing need during the pellet processing, so the end products



   and the raw materil's moistuer are the same, which is very easy for the finished products to store.



4 Animal Feed Pellet Maker Machine can be connetcted with both 380v and 220v power pressure, so it is can be accoding to your actual need.



5 Animal feed pellet machine can be driven by both diasel engine and electrical  motor.





6 Animal Feed Pellet Machine is driven by rear axle, structure is more beautiful and safe when operated.



7 Animal Feed Pellet Making Machine spare parts are consisted of two rollers and one die. Both of these spare parts are made of alloy steel material, their life span is about 800 hours, what's more, spare parts are handle by CNC system, ensuring the accurancy of the pellets.



8 Animal Feed Pelelt Making Machine are with flexible coupling, more safty and more convernite.





9 Die of this Animal Feed Pellet Making Machine has unique structure desigend by our technology department, per hour capacity is improved a lot, life is 2 times longer than the normal structure.





Apllication of  Animal Feed Pellet Making Machine:





Animal Feed Pellet Machine can be used in large scale, medium scale, small scale feed process farms and individual farms.





Working principle of Animal Feed Pellet Making Machine:





Ther are two roller and one die in the feed pellet machine, when pellet mill working, rollers move, die keep stable, then the frication made from the roller and the die can reach about 70 degree, then become to paste and will be pressed into pellet, the finished pellet go through the hole on the die, then pellet is made.









Technical parameter of home use animal pellet making machine :

Model	Capacity (t/h)	Power (kw)	Diameter(mm)	Weight (t)	Dimenstion (mm)
PM160	0.20	5.5	Φ3-8	0.165	865*576*985
PM260	0.35	11	Φ3-8	0.465	1380*668*1210
PM360	0.65	22-30	Φ3-8	1	1680*680*1380
PM460	1-1.5	37-45	Φ3-8	1.55	1685*750*1380
PM560	1.5-2.0	45-55	Φ3-12	2	1688*780*1380
PM800	2-2.5	90	Φ3-20	3.98	1980*1100*2100





 Notification:



1Please wash the machine before using it.



2 Please oil the machine for the first time before using it.



3 Please operate the machine according to the manural.



4  We will guaranteed the machine for about 13 months except the die and roller.



5 My suggestion: buy extra set die and roller.



6 For feed pellet, modulator is usually used.





 Picutre of home use animal pellet making machine :

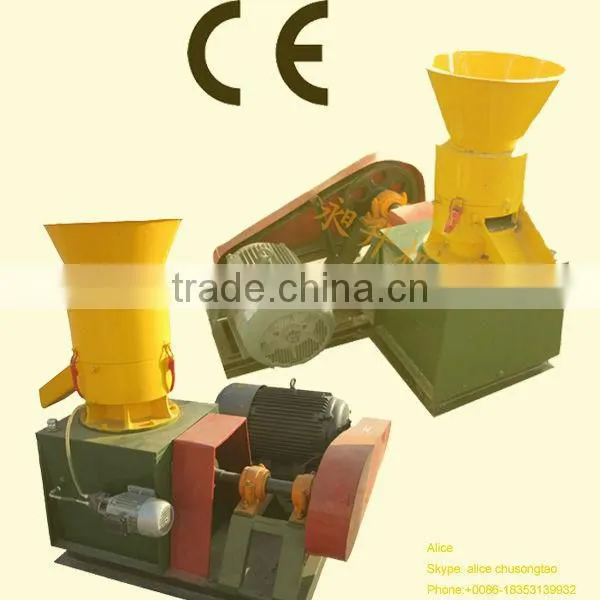

Rear -axle- driven -type:

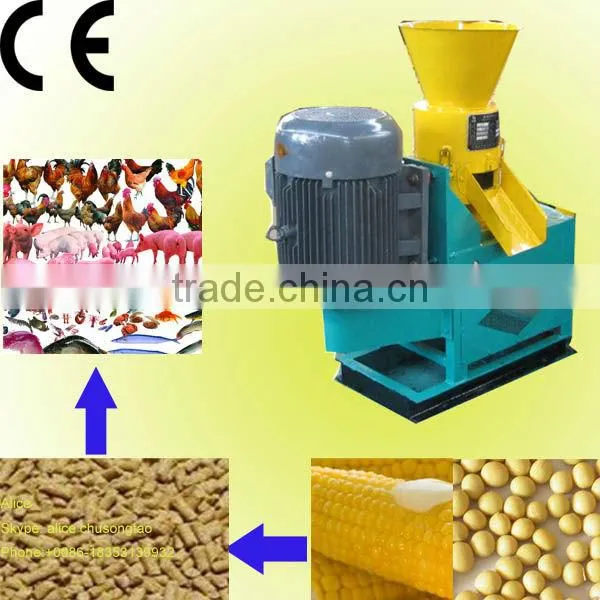

 Belt _driven_type:

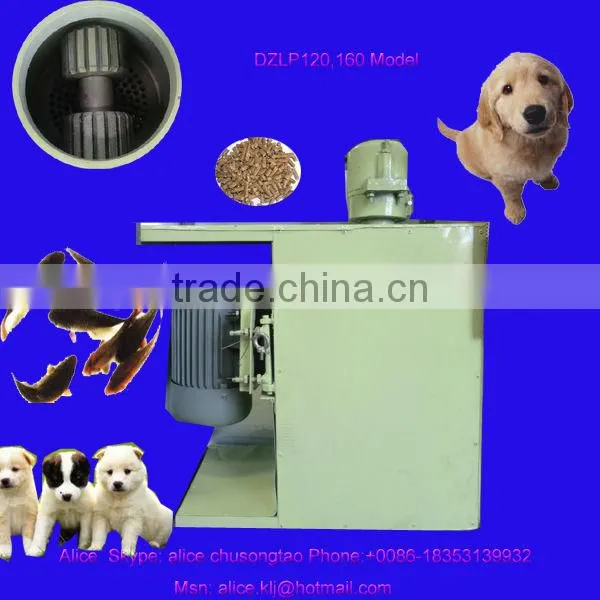

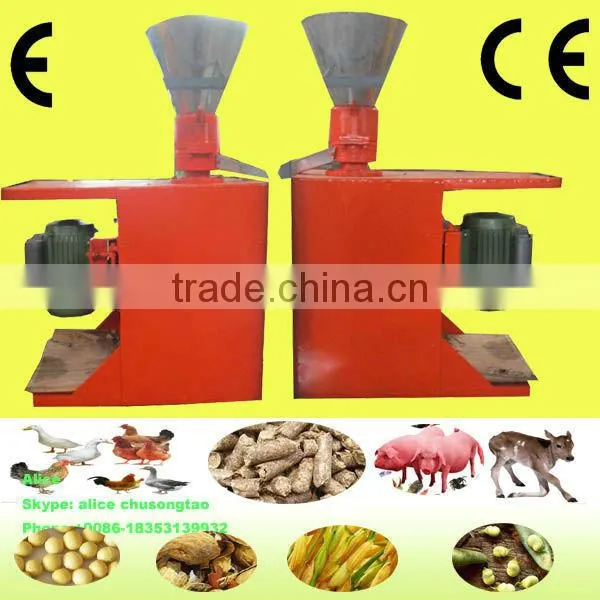

Smaller _type_feed_pelet_machine:

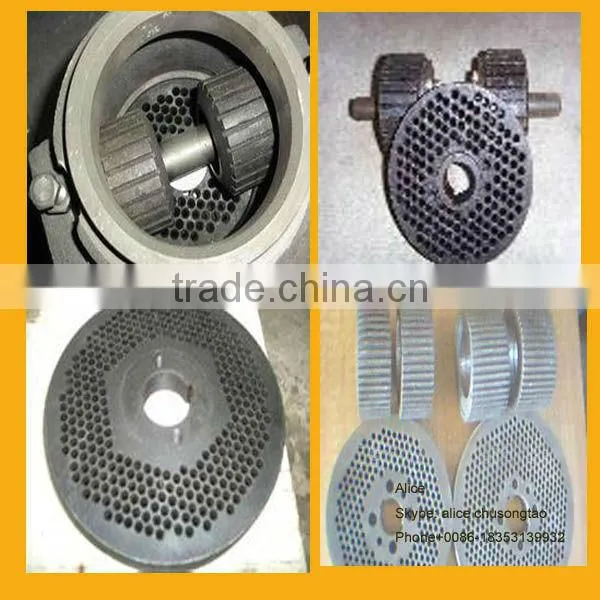

Spare_parts_roller_and_die:

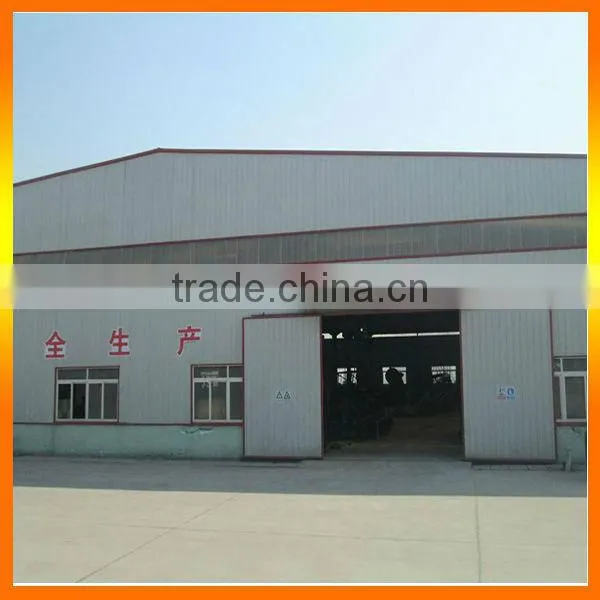

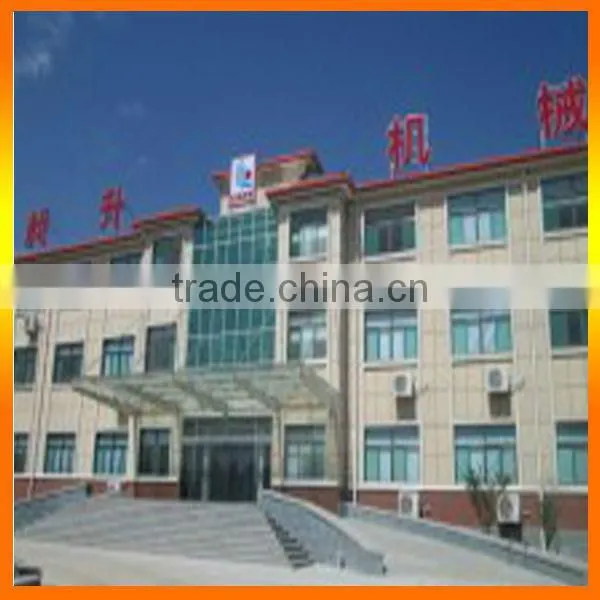

OUR_FACTORY:





Seeing is believing!

Personal visiting is believing!

Your personal visit to our factory will be warmly welcome.

We hope to do our host for you!

Hope to join your sincere hands!
