Perfume Glass Screen Printing Machine

Perfume Glass Screen Printing Machine photo-1
US$ 30,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
LONGER
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name LONGER
Model Number CNC06
Usage Other, screen printing machine
Automatic Grade Automatic
Voltage 380VAC
Gross Power 25Kw
Dimensions(L*W*H) 3000*2200mm*2500mm
Certification ISO

 Screen printing machine



Applications:

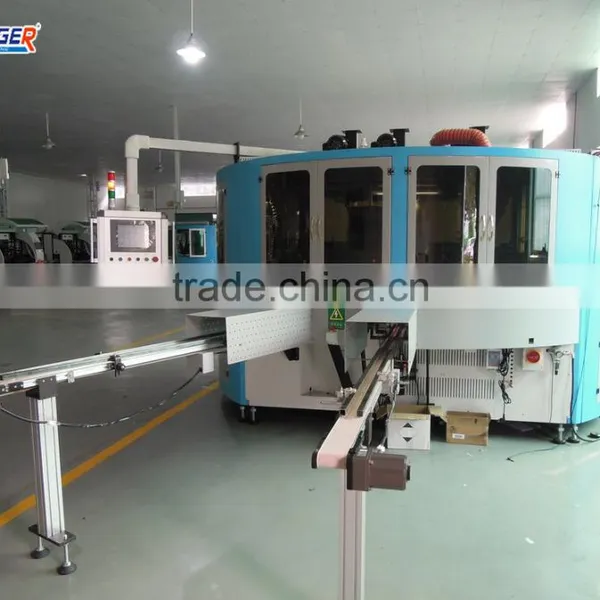

6 Color Automatic UV screen printing machine  can print all shapes of glass containers.
It can decorate container with or without ramp which is for Color registration. It is suitable for glass bottle ,
glass cups, glass containers,glass jars etc printing with thermoplastic ink,UV ink or LED ink.

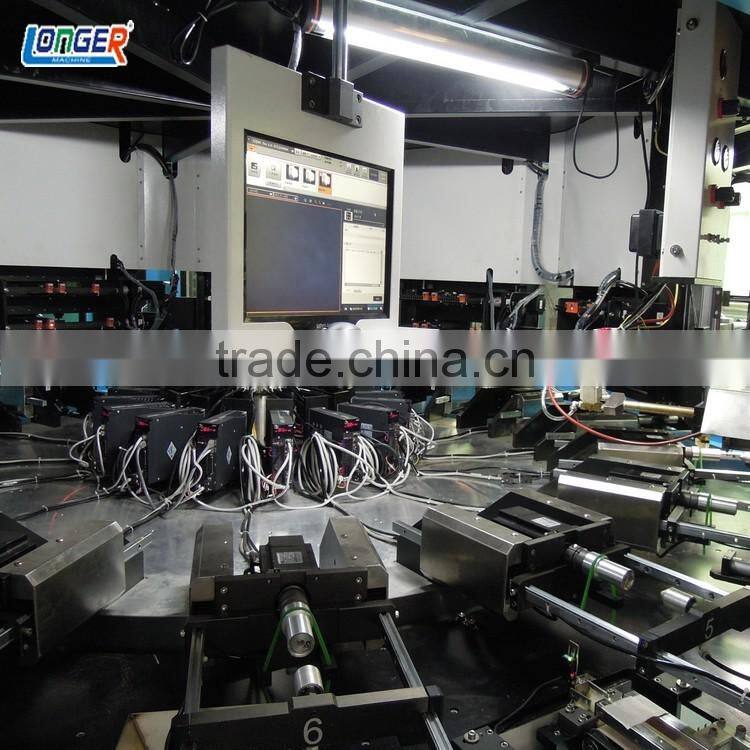

The CNC screen printer is controlled by high accurateindexer,fully servo driven system.Vision system and
mechanical registration optional.

Mostly used for wine bottles printing. It can print any shape of containers,jars, cups  all around at one time printing.

Features:

1.Automatic loading and unloading system
2.Automatic printing system with all servo driven: printing head,mesh frame,rotation,container up/down
  all driven by servo motors.
3.All tooling with individual servo motor driven for rotation
4.Fast tooling changeover time, All parameters automatic setting by touch screen. .
5.PLC control & touch screen operation system, it is available for future
   maintenance and   program upgrading by romote controlling.

Options:

1.Camera vision system to check the mold line for cylindrical bottles, to avoid printing on the line
2.Flame treatment system for best adhesion on glass for UV ink printing
3.Electrode UV system ,can be equipped with heating system for thermo plastic ink due to the packing size.

Parameters:

1:Max.Printing size: Round bottle: φ30mm--φ100mm

                              Square bottle width:25-100mm
                              Bottle height: 25-330mm
2:Printing Speed: 1800-3000pcs/min
3.Air Pressure: 0.6-0.7 Mpa
4.Net Weight: 12000Kg
5.Power: 380V 50Hz 30Kw
6.Machine Size: φ4000mm*2200mm(height)

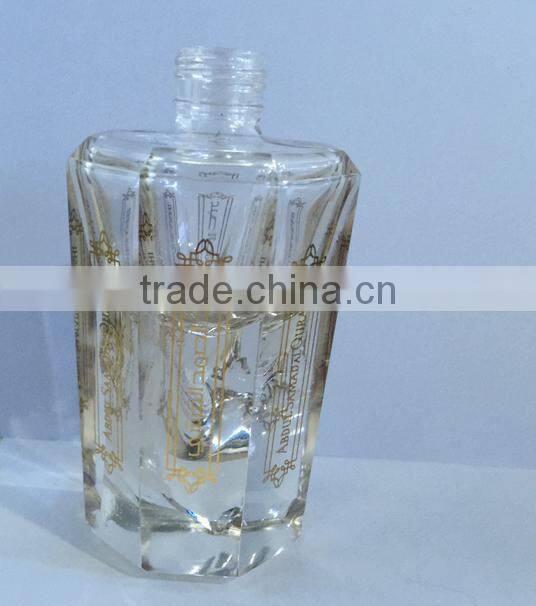

You can print the following shapes:

perfume glass screen printing machine



perfume glass screen printing machineperfume glass screen printing machine





perfume glass screen printing machine
