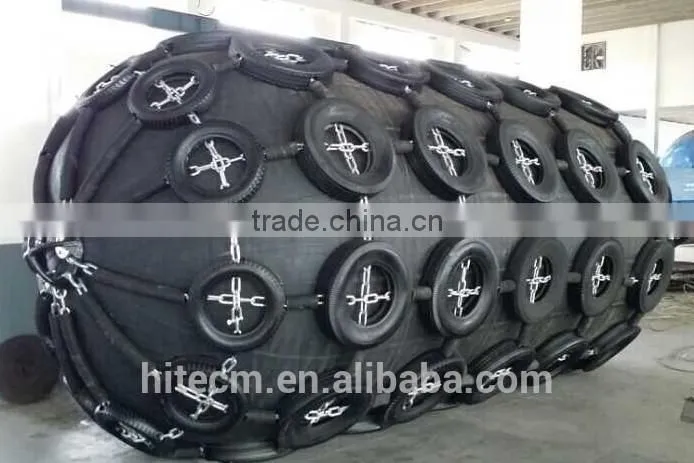

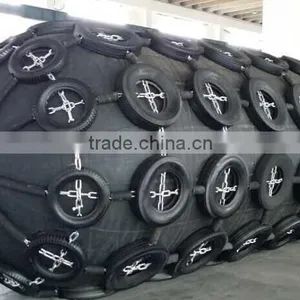

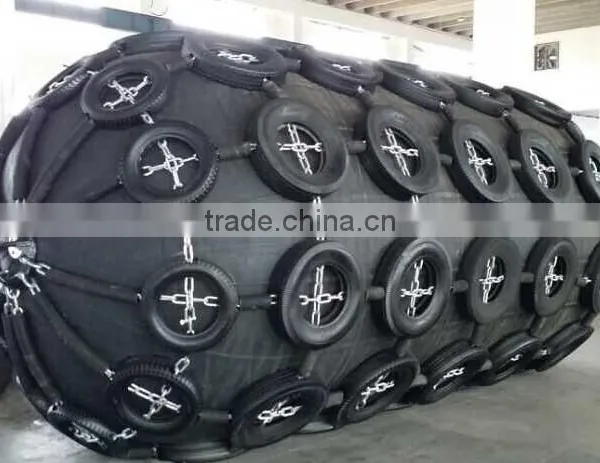

Inflatable Marine Pneumatic Natural Rubber Fender for Ship Berthing

Name: Inflatable Marine Pneumatic Natural Rubber Fender for Ship Berthing
Brand: yokohama pneumatic rubber fenders
SKU: 139269717

US$ 100 - 100,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

yokohama pneumatic rubber fenders

Model Number:

Inflatable marine pneumatic natural rubber fender for ship berthing

Qingdao Hitec Hardware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name yokohama pneumatic rubber fenders

Model Number Inflatable marine pneumatic natural rubber fender for ship berthing

Part Other, Inflatable marine pneumatic natural rubber fender for ship berthing

Specifications

Inflatable marine pneumatic natural rubber fender for ship berthing
1 Meet Euro Standard
2 ISO17357
3 CCS BV
4 high qual

Inflatable marine pneumatic natural rubber fender for ship berthing

(1)Diameter: from 500mm to 4500mm

(2)Effective length: from 1000mm to 12000mm

The above specifications only are our standard specifications arrange. Can be supplied customized size upon customers' request.

Technical Data Sheet

Size	Initial Internal Pressure 0.05MPa		Weight ±10%	Initial Internal Pressure 0.08MPa		Weight ±10%
D*L(mm)	R(KN)	GEA(KJ)	Kg	R(KN)	GEA(KJ)	Kg
500*1000	64	6	25	83	8	25
600*1000	74	8	32	96	11	32
700*1500	137	17	50	178	24	50
1000*1500	182	32	80	235	44	80
1000*2000	257	45	100	335	63	125
1200*2000	297	63	120	386	86	165
1350*2500	427	102	165	554	140	226
1500*3000	597	153	315	751	211	370
1700*3000	639	191	405	830	263	436
2000*3500	875	308	590	1138	424	632
2500*4000	1381	663	1050	1815	925	1110
2500*5500	2019	943	1333	2653	1317	1410
3000*5000	2104	1210	1880	2709	1571	2155
3000*6000	2583	1485	2160	3292	1888	2470
3300*4500	1884	1175	2020	2476	1640	2300
3300*6500	3015	1814	2700	3961	2532	3080
