Description

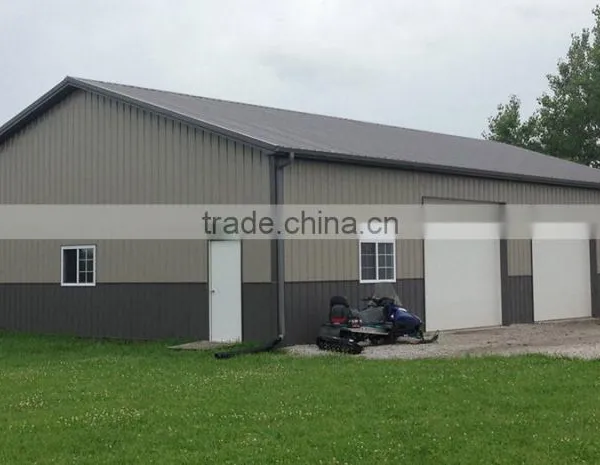

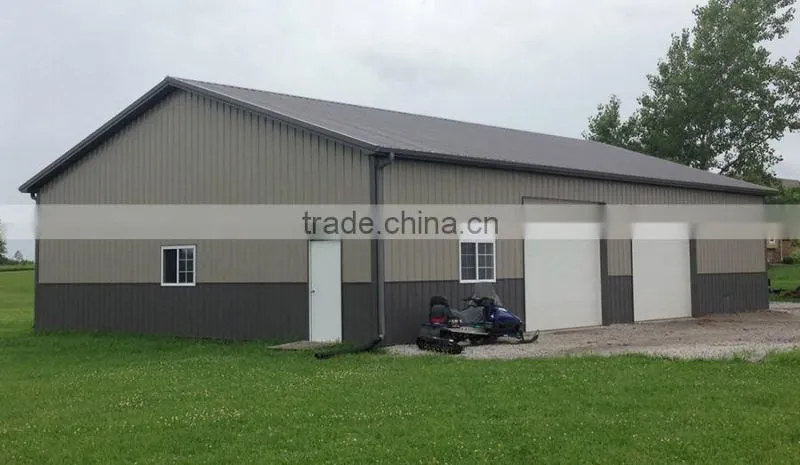

Steel Structure equipment warehouse
Advantage
Easy assemble and disassemble, could be recycle again and again
The price is economic, with service time around 15 years.
The layout and house height could be customized as requests.
Could be single floor or double floor
Application
Economic family living room, houseing project, office, guard house
House introduction

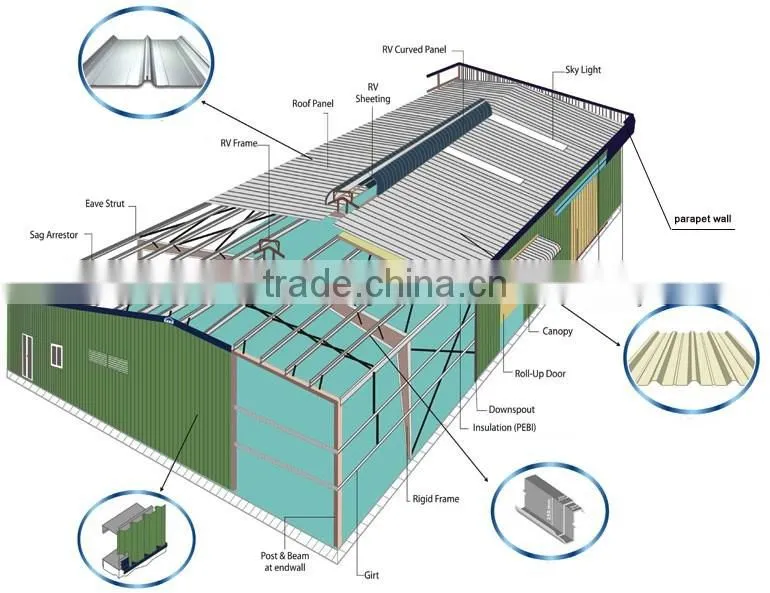

Fundamental frame
pillars are made of square tube 100*100*2.5mm or 120*120*2.5mm
purlin is made of section steel C120*50*20*2.5
Roof, exterior wall and partation wall
Roof sandwich panel: EPS panel or rock wool panel or other material that be commanded.
Wall sandwich panel: EPS panel or rock wool panel or other material that be commanded.
Roof permitted loading: 0.5KN/ m2=50kg/m2
Partition wall in the WC is melamine board
Floor construction
Second floor:
General room floor consists of 25mm plywood board + 1.7mm floor leather
The floor of WC and bath room will be warter proof teated by polyurethane
Floor permitted loading: 2.5KN/ m2=250kg/ m2
First floor:
Conctete ground covered with 1.5mm floor leather or ceramic tile
Ceiling
PVC ceiling or gypsum board ceiling
Doors and windows
Sandwich panel door, steel door or wood door, all the installation fittings included.
PVC windows or aluminum window: 4mm single or double glass, sliding windows with fly screen aluminum window frame, hinges, edge cover and all the installation fittings included.
Staircase
Steel stair
Main frame is made of “C“ section steel 160x70x20x2.5
Hand rail is made of square tube 40x40x2.5mm
Step board is made of 3mm steel board
Pillar is “L“ section steel 36x3
Assembly material
Nails, glue, bolts, polyurethane, edge cover and all the assemble fittings will be offered.
Electro
Power distribution box: Box+ control switches + Leakage protection
Sockets 16A
Switches
Ceiling light
Fluorescent
Cable
Cable canal
All the electro will be offered according to the local electrical requests.
Sanitary equipment
WC closes tool
Washing basin
Urinal
Shower room
