The capsules encapsulation machine is consisted of three parts: main machine, melting equipment and drying device, we produce full series irregular soft gel moulds.
Technical Specification:
1. Main Machine
Filling tolerance<±1.5%
Maximum single plunger dosage- 2ml
Die Roll Size — 80x100mm
Die Roll Speed — 0~5rpm, stepless adjustable
Main Motor Power— 0.75 kW
Main Machine Power — 3kW
Power — 3 Phase 220V/380V/415V,50Hz/60Hz
Overall Dimensions(L x W x H) — 1650 x 800 x 2050mm
Weight — 600kg
The cooling drums are cooled by both water and air.
Consumption of compressed air — 50NL/h
Consumption of gelatin — 2.5L/h( at 3 rpm)
Material consumption — 4.6L/h(at 3 rpm)
Lubrication oil consumption — 70g/h(Based on 3 rpm)
The requirement for space — ≈20m2

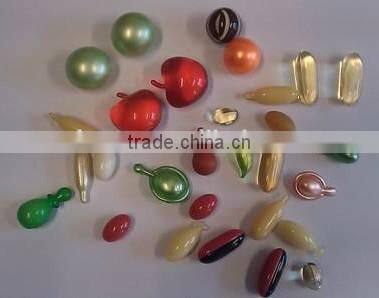

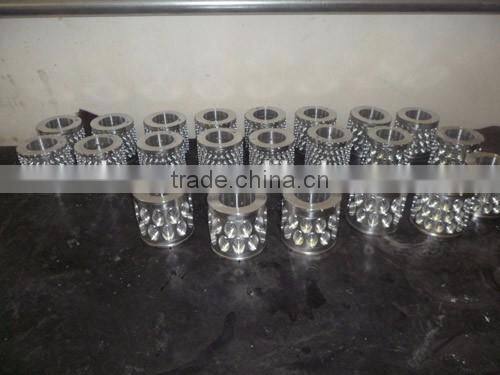

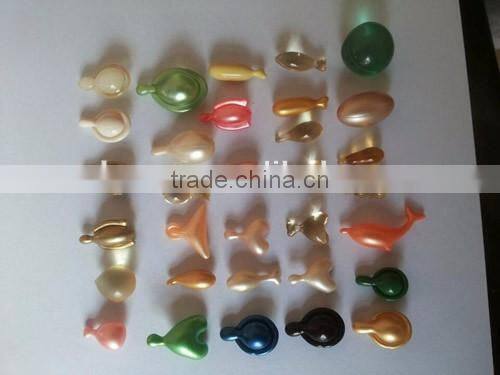

Irregular moulds supported:
