Specifications:

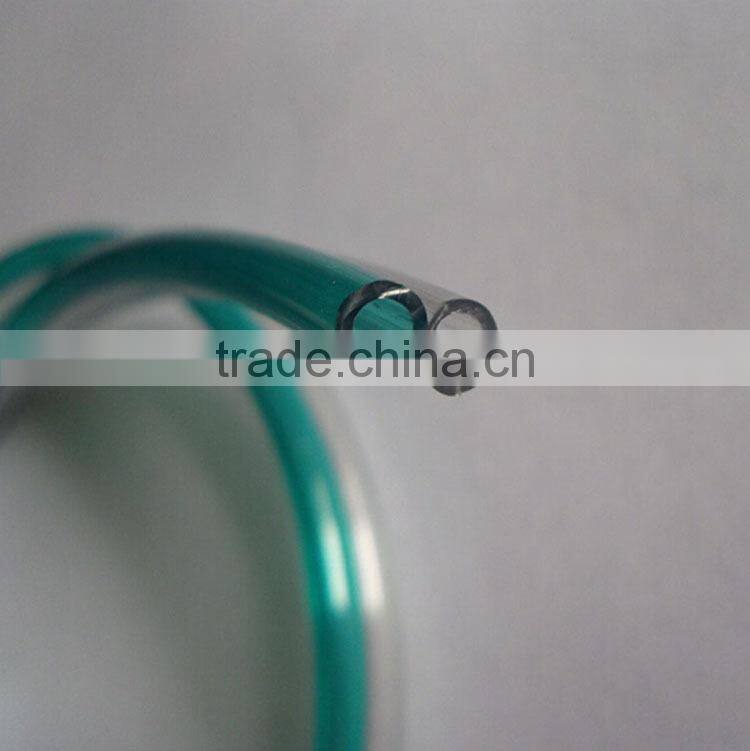

Hot selling non smell transparent PVC Flexible Hose :
1.Item NO.: |
XYGG001~ XYGG199 |
2.Main Material: |
U-PVC |
3.Product Size: |
20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm, 160mm,200mm,250mm,315mm,400mm 1/2",3/4",1",1-1/4",1-1/2",2"3",4",5",6",8",10" |
4.End Connector: |
Socket, thread,Ring Belll |
5.Working Pressure: |
PN6~PN16,0.6Mpa~1.6Mpa,6Bar~166Bar |
6.Working Mediums: |
Electricity |
7.Connection |
Socket |
8.Standard |
GB,ISO,DIN,JIS,ANSI,ASTM,BS,SCH40,SC80 |
| Item | Spec. | CNS | JIS | DIN | ANSI | BS | SCH80 | SCH40 | |||||
| mm | inch | O.D | Thickness | O.D | Thickness | O.D | Thickness | O.D | O.D | O.D | Thickness | O.D | Thickness |
| 10 | 3/8" | 18±0.2 | 2.2±0.6 | 18±0.2 | 2.5±0.2 | 16±0.2 | 17.14 | 17.14 | |||||
| 15 | 1/2" | 22±0.2 | 2.7±0.6 | 22±0.2 | 3.0±0.3 | 20±0.3 | 2.0±0.4 | 21.34 | 21.34 | 21.3±0.1 | 3.985±0.255 | 21.3±0.1 | 3.025±0.255 |
| 20 | 3/4" | 26±0.2 | 2.7±0.6 | 26±0.2 | 3.0±0.3 | 25±0.3 | 3.0±0.5 | 26.67 | 26.67 | 26.7±0.1 | 4.165±0.255 | 26.7±0.1 | 3.125±0.255 |
| 25 | 1" | 34±0.3 | 3.2±0.6 | 32±0.3 | 3.5±0.3 | 32±0.3 | 4.0±0.6 | 33.40 | 33.40 | 33.4±0.13 | 4.815±0.265 | 33.4±0.13 | 3.635±0.255 |
| 32 | 1+1/4" | 42±0.3 | 3.2±0.6 | 38±0.3 | 3.5±0.3 | 40±0.3 | 4.6±0.7 | 42.16 | 42.16 | 42.16±0.13 | 5.14±0.29 | 42.16±0.13 | 3.815±0.255 |
| 40 | 1+1/2" | 48±0.4 | 3.6±0.8 | 48±0.4 | 4.0±0.4 | 50±0.3 | 5.3±0.8 | 48.26 | 48.26 | 48.26±0.15 | 5.385±0.305 | 48.26±0.15 | 3.94±0.25 |
| 50 | 2" | 60±0.5 | 4.1±0.8 | 60±0.5 | 4.5±0.4 | 63±0.3 | 6.0±0.9 | 60.32 | 60.32 | 60.32±0.15 | 5.87±0.33 | 60.32±0.15 | 4.165±0.255 |
| 65 | 2+1/2" | 76±0.5 | 4.1±0.8 | 76±0.5 | 4..5±0.4 | 75±0.3 | 6.6±1.0 | 73.02 | 73.02 | 73.02±0.18 | 7.43±0.42 | 73.02±0.18 | 5.465±0.305 |
| 80 | 3" | 89±0.5 | 5.1±0.8 | 89±0.5 | 5.9±0.4 | 90±0.3 | 7.3±1.1 | 88.90 | 88.90 | 88.9±0.2 | 8.075±0.455 | 88.9±0.2 | 5.82±0.33 |
| 100 | 4" | 114±0.6 | 6.6±1.0 | 114±0.6 | 7.1±0.5 | 110±0.4 | 8.0±1.2 | 114.30 | 114.30 | 114.3±0.23 | 9.07±0.51 | 114.3±0.23 | 6.375±0.355 |
| 125 | 5" | 140±0.8 | 7.5±1.2 | 140±0.8 | 7.5±0.5 | 140±0.4 | 9.3±1.4 | 141.30 | 141.30 | ||||
| 150 | 6" | 165±1.0 | 8.5±1.4 | 165±1.0 | 9.6±0.7 | 160±0.5 | 10±1.5 | 168.28 | 168.28 | 168.3±0.28 | 11.63±0.66 | 168.3±0.28 | 7.54±0.43 |
| 200 | 8" | 216±1.3 | 10.5±1.4 | 216±1.3 | 11.0±0.7 | 225±0.7 | 12±1.8 | 219.08 | 219.08 | 219.1±0.38 | 13.46±0.76 | 219.1±0.38 | 8.675±0.495 |
| 250 | 10" | 267±1.6 | 13.0±1.8 | 267±1.6 | 13.6±0.9 | 250±0.8 | 12.6±1.9 | 273.05 | 273.05 | 273.1±0.38 | 15.96±0.9 | 273.1±0.38 | 9.83±0.56 |
| 300 | 12" | 318±1.9 | 15.5±2.2 | 318±1.9 | 16.2±1.1 | 315.0 | 14±2.1 | 323.85 | 323.85 | 323.9±0.38 | 18.49±1.04 | 323.9±0.38 | 10.93±0.62 |
| 350 | 14" | 370±2.2 | 18.0±2.6 | ||||||||||
| 400 | 16" | 420±2.6 | 20.5±3.0 | ||||||||||
| 450 | 18" | 470±3.0 | 22.9±3.4 | ||||||||||
| 500 | 20" | 520±3.5 | 25.3±3.8 | ||||||||||
| 600 | 24" | 630±4.0 | 30.7±4.0 | ||||||||||
Advantage:
1) Light weight, easy to load and unload
2) Good chemicals and drugs resistance
3) Small resistance to fluidity
4) Strong mechanical strength
5) Good electrical insulation
6) Water quality unaffected
7) Simple installation
Properties:
1) Healthy, bacteriological neutral, conforming to drinking water standards
2) Resistant to high temperatures, good impact strength
3) Convenient and reliable installation, low construction expenses
4) Excellent heat-insulation property from minimum thermal conductivity
5) Lightweight, convenient to transport and handle, good for labor-saving
6) Smooth inner walls reduce pressure loss and increase flow speed
7) Sound insulation (reduced by 40% compared to galvanized steel pipes)
8) Light colors and excellent design ensure suitability for both exposed and hidden installation
9) Recyclable, environment-friendly, accords with GBM standards
10) Extremely long usage life for at least 50 yearsItems
Application:
1)Structure Engineering
2)Pipes for Chemical Industrial use
3)Water supply system
4)Special Purpose Pipes for Agriculture Irrigation
5)Soil, Waste and Vent Pipes
6)Wire Protection System
7)Freeway engineering
8)Golf sourse engineering
Contact:
We will reply your email or fax within 24 hours.
You can call us at any time if there is any question on our production.
For more information,pls visit our webside /
