Agriculture Lateral Move Irrigation Machinery Equipment for Agriculture Farmland
Four or three wheels are assembled on the center part of the pivot, which makes the system moved by pulling the cables on the pivot point with tractor. This system is called Towable Irrigation System. It is efficient and economic because they can be used in two or three pieces of land. This towable irrigation system combines the characteristics of flexiable and center pivot irrigation . Can irrigate more than one field, after finish one field, you just need to tow it to the next field.
Towable Irrigation System allocation standard:
Main pipe diameter |
6-5/8” (168mm×3.2mm,high frequency welded steel pipe) |
Standard span |
6-5/8"(168mm) ×54.5m(8 pipes) |
King-sized span |
6-5/8"(168mm) ×61.3m (9 pipes) |
Cantilever pipe |
5-9/16″(141mm) |
King-sized cantilever pipe |
4″(101mm) |
Pipe length |
22 feet/one,(6.7m) |
Main pipe Flange thickness |
10mm, Flange and pipe adopt double welded technology. |
Working voltage |
460--380V/50--60HZ |
Tire type |
14.9 X 24 vacuum irrigation tire |
Motor speed reducer |
electric transmission gear box (American UMC) |
Motor power |
0.75~1.5 horse power |
Motor speed reducer |
output speed of electric transmission gear box :28--86RPM |
Span body tower structure |
“V” type model tower |
Sprayer |
USA Nelson D3000; USA Nelson R3000 |
All the equipment with |
the pressure of Nelson pressure governor:15 PSI (20 PSI |
Main cable |
4*4mm²+6*1.5mm²(resisting ultra violet and aging) |
The end has |
LED working status instruction light |
Irrigation intake |
1 water inlet in center point, quick pipe joint connected structure |
Irrigation intake caliber |
8 inches, the spot water supply pipe is more than 6 inches. |
Irrigation intake pressure |
0.20—0.35mpa |
Standard truss height |
3.2m |
Sprayer spacing |
2.2-4m(the quantity:2-3 sprayer/water pipe |
Yulin Irrigation Equipment Co., Ltd is the leading manufacturer for irrigation equipment in China. We had started to supply the center pivot irrigation systems for world famouse irrigation company of American Lindsay since 2000. We are the OEM rpoduction manufacturer of Lindsay from 2000 to 2008,and also the only one factory was certified by them on teconology,process,quality and understand.We had supplied more than 1000 sets of large scale irrigation for many irrigation companies all over the world.
Yulin will dedicated to the construction and development of Modern Agriculture .We will supply advanced irrigation facilities, efficient installation &training programs for the customers all over the world.We also own one professional after-sale service team to service for you at any time.We hope to set up long business relationship with you in the near future.
Packing&Shipping:We will supply the standard exporting wooden box to load the irrigation accessories,and then put these boxes and the whole irrigation parts into the 40'OT or HQ container,and ready to ship to other countries all over the world throughout the famouse shipping line such as COSCO,ZIM,CMA or the appointed shipping agent of foreigner clients.

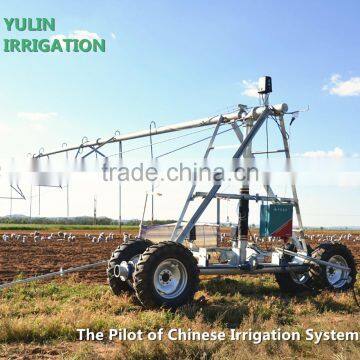

Three Wheels Towable Irrigation System

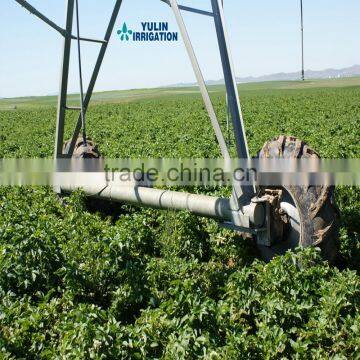

Flexiable and Fixed tires,when you want to tow the irrigation from one land to another land you can setting the tire to the fixed angle and tow it by tractor,and then fixed the tire when you arrive in the destination.After confirming the fixed angle of thr tire,this towable irrigation will begin to work again.
These working springklers from American Nelson,which is near to the land to save more water &labour and increase the irrgation ratio each hour.
Collector Uasage:continous power supply for the structure of rotating machinery in electrical system
End Gun
