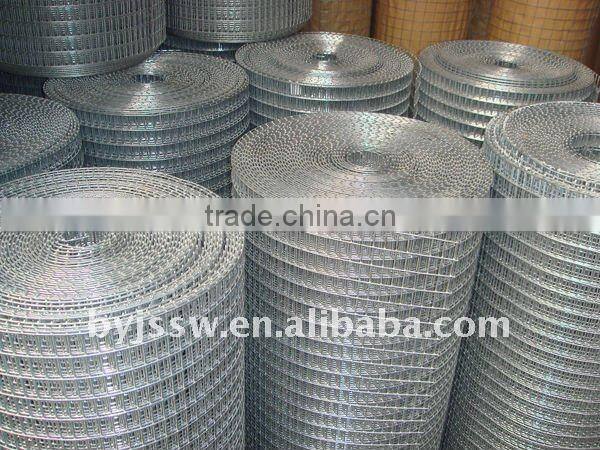

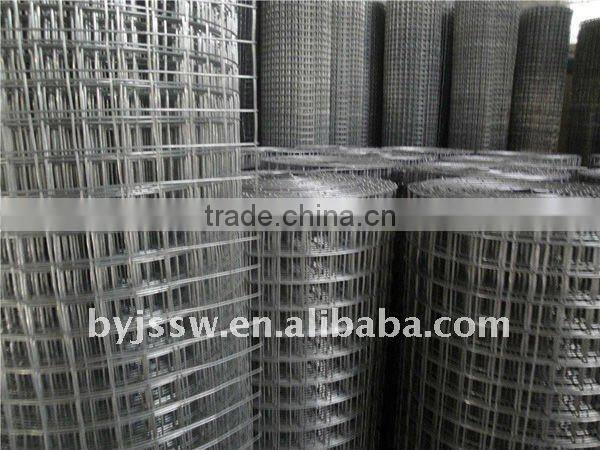

Galvanized Welded Wire Mesh

Specifications

galvanized welded wire mesh
1.wire diameter:0.4-3mm
2.opening:1/4"-4"
3.roll:3"x100',4"x100",...
4.surface: gi or PVC coated

Galvanized Welded Wire Mesh



The available varieties of welded wire mesh:
a. Welded wire mesh: Electro galvanized before welded
b. Welded wire mesh: Electro galvanized after welded
c. Welded wire mesh: Cold galvanized
d. Welded wire mesh: Hot dipped galvanized before welded
e. Welded wire mesh: Hot dipped galvanized after welded
f. Welded wire mesh: PVC coated welded wire mesh
g. Welded wire mesh: Stainless steel welded wire mesh
h. Welded mesh sheet: Electro or hot dipped galvanized.

Features:quality wire materials and economic cost.

Materials:Galvanized iron wire, hot-dip galvanized iron wire, PVC coated wire, stainless steel wire.

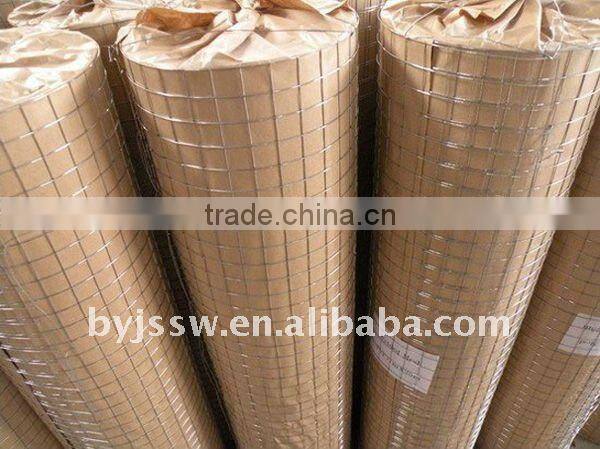

Forms of supply: welded wire mesh is supplied in rolls or panels.

Specifications

Standard Welded Wire Mesh (in 30m length, Width of 0.5m-1.8m)
Mesh		Wire Gauge (BWG)
Inch	MM
1/4" x 1/4"	6.4mm x 6.4mm	22-24
3/8" x 3/8"	10.6mm x 10.6mm	19-22
1/2" x 1/2"	12.7mm x 12.7mm	16-23
5/8" x 5/8"	16mm x 16mm	18-21,
3/4" x 3/4"	19.1mm x 19.1mm	16-21
1" x 1/2"	25.4mm x 12.7mm	16-21
1-1/2" x 1-1/2"	38mm x 38mm	14-19
1" x 2"	25.4mm x 50.8mm	14-16
2" x 2"	50.8mm x 50.8mm	12-16
1/4" x 1/4"	6.4mm x 6.4mm	12-16



PVC Coated Welded Mesh (in 30m Length, Width of 0.5m-1.2m)
Mesh		Wire Gauge (BWG)
Inch	MM
1/2" x 1/2"	12.7mm x 12.7mm	16-21
3/4" x 3/4"	19mm x 19mm	16-21
1" x 1"	25.4mm x 25.4mm	15-20
