Specifications
plain weave stainless steel wire mesh1.material:SUS 304,306,316
2.wire diameter:0.02mm-2.50mm
sh:2-400
4.width:0.5-2.5m

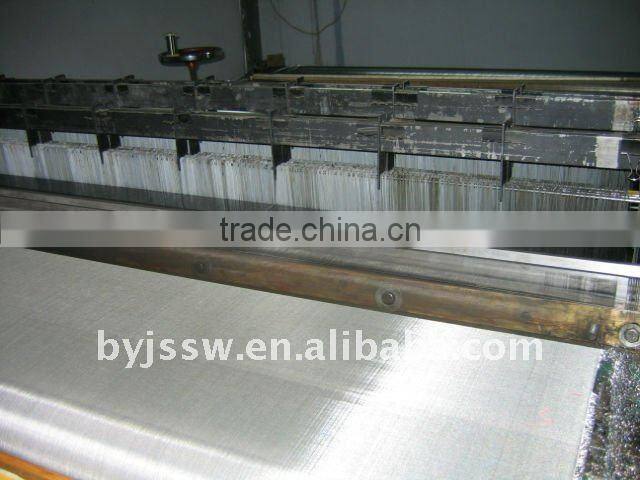

Plain Weave Stainless Steel Wire Mesh Production of plain weave stainless steel wire mesh
1.Plain Weave Stainless Steel Wire Mesh Opening:
Stainless Steel Square Wire Mesh produced by Ante is classified into plain weave, twill weave, dutch weave.
2.Stainless Steel Wire Mesh Plain weave
most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
3. Twill Weave Stainless Steel Wire Mesh
made by each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Stainless Steel Square Wire Mesh Varieties according to materials:
4. Plain Weave Stainless Steel Wire Mesh Uses
Stainless steel wire mesh screen products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc.
5. Plain Weave Stainless Steel Wire Mesh Sizes
Standard roll width of stainless steel wire mesh : 1m to 48"
Standard roll length of stainless steel wire mesh: 30m to 100"
Plain Weave Stainless Steel Wire Mesh | ||
Mesh/Inch |
Wire Gauge SWG |
Aperture mm |
40meshx40mesh |
36 |
0.44 |
50meshx50mesh |
38 |
0.36 |
60meshx60mesh |
40 |
0.30 |
80meshx80mesh |
42 |
0.21 |
100meshx100mesh |
44 |
0.17 |
120meshx120mesh |
44 |
0.13 |
150meshx150mesh |
46 |
0.108 |
160meshx160mesh |
46 |
0.097 |
180meshx180mesh |
47 |
0.09 |
200meshx200mesh |
47 |
0.077 |
250meshx250mesh |
48 |
0.061 |
270meshx270mesh |
48 |
0.058 |
300meshx300mesh |
49 |
0.054 |
325meshx325mesh |
49 |
0.051 |
350meshx350mesh |
49 |
0.042 |
400meshx400mesh |
50 |
0.0385 |
| ||
6.Characteristics:Acid-resisting, alkali-resisting, heat-resisting and wear- resisting.

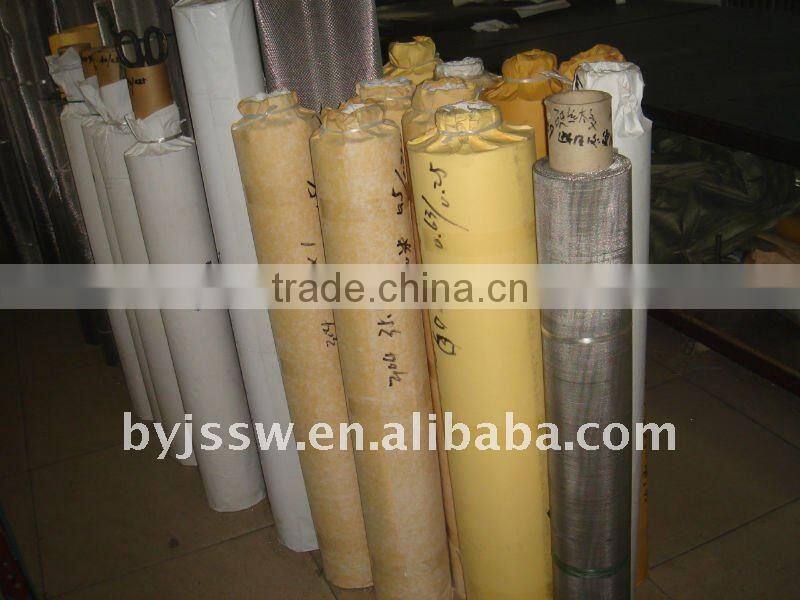

7.Packing of plain weave stainless steel wire mesh

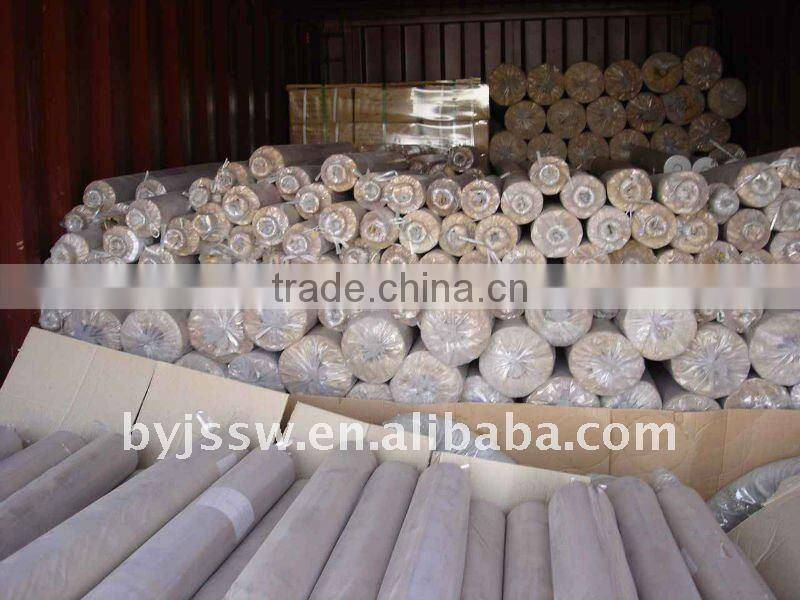

8.Stainless steel wire mesh screen loading in container
We are factory of stainless steel wire mesh!
