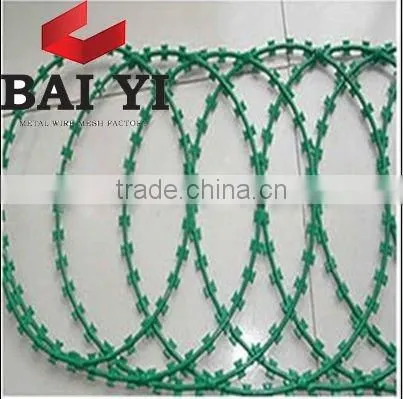

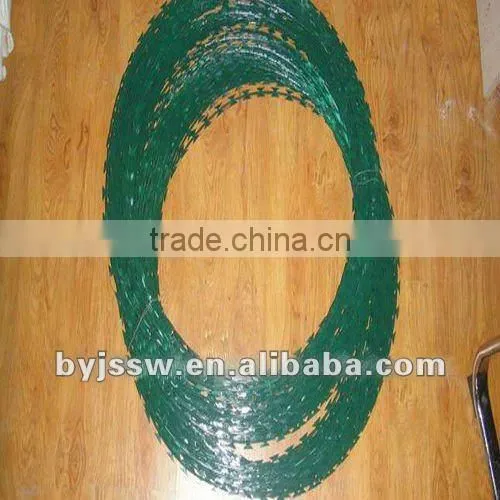

Help CenterPlastic Razor Barbed Wire(BTO-22,CBT-65)( Factory )
Related Products
-
4 Barbed Points Double Stands Barbed WireUS$ 750 - 900MOQ: 15 Rolls -
Single Strand Barbed Wire From Direct FactoryUS$ 750 - 900MOQ: 15 Rolls
-
Vinyl Coated Barbed WireUS$ 750 - 900MOQ: 20 Rolls
-
PVC Coated Barbed Wire For Farm FenceUS$ 700 - 950MOQ: 20 Rolls
-
500 Meters Galvanized Barbed WireUS$ 700 - 950MOQ: 20 Rolls
Specifications
1.Blade type:BTO-12,BTO-18,BTO-22,CBT-652.Coil Diameter:450,500,600,700,800,900,960mm
3.Barb distance:26-100mm
1.Material: hot galvanized steel sheet and wire, stainless steel sheet and wire
2.Features: Razor Wire is also named Tape Wire, Razor Tape Wire, Barbed Tape or
Barbed Tape Wire. It can be installed to achieve the result of frightening and
stopping to the aggressive perimeter intruders, with piecing and cutting razor
blades mounted at the top of the wall, also the special designs making climbing
and touching extremely difficult. The wire and strip are galvanized to prevent
corrosion.
3.Application: Razor Wire is widely used by in military field, prisons, detention
houses, government buildings and other national security facilities; it is also
used as fence for cottage and society fence, and other private buildings.
Razor Blade Specification:
(1) Straight Type Razor Wire
(2) Concertina Single Razor Wire
(3) Concertina Cross Razor Wire
(4) Flat Razor Wire
(5) Welded Razor Wire Mesh
Mainly specification:
Razor specification form | |||||
Specification |
Razor thickness |
Diameter |
Razor length |
Razor width |
Razor distance |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
13±1 |
26±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
96±2 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Razor specification size | ||||
Outside diameter |
Number of turns |
Standard cover length |
Product form |
Note |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-10.15.22 |
Cross type |
600mm |
86 |
14M |
BTO-10.15.22 |
Cross type |
700mm |
72 |
12M |
BTO-10.15.22 |
Cross type |
800mm |
64 |
10M |
BTO-10.15.22 |
Cross type |
960mm |
52 |
9M |
BTO-10.15.22 |
Cross type |
