Help CenterHot Dipped Galvanized Spool Barbed Wire ( Direct Factoty )
Related Products
Specifications
galvanized spool barbed wire1.wire gauge:BWG10-18
2.barb length:1.5-3cm
3.babr space:7.5-15cm
4.25kg/50kg per roll
Hot Dipped Galvanized Spool Barbed Wire
Production of hot dipped galvanized spool barbed wire
1.Barb wire specification:
2.Barb wire Gauge: 18#-10#
3.Barb Wire Gauge: 16#-12#
4.Barb length:1-3cm
5.Barb spacing:7.5-15cm
6.Barb Wire Weight:25kg,50kg
7.Barb Wire Weaving way: Twist, standard
8.Barb Wire Surface finished: Electro galvanized,Hot dipped galvanized,PVC coated
9.Barb wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
* Single circle barb mesh
Single circle thorn mesh does not need cramp, it should be installed with the natural form
* Beline barb mesh
Beline barbed mesh has many span species to sellect.it not only saves fees but also constructs quickly when reaching effect.
* Fense barb mesh
Fense barbed mesh is a kind of fencing mesh made by the barbed thorn mesh. The barbed is beautiful and practical.mainly used in fence window military protecting.length and dia can be met according to the requirements of the customer.
Ω Hot dipped Galvanized / PVC/ PE Coated Barbed Wire Fencing in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).
Galvanized Barbed Iron Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
Ω Patterns Available for Barbed Wire Fencing:
√ Single Twisted Barbed Wire
√ Double Twisted Barbed Wire
√ Traditional Twisted Barbed Wire
Ω Features:Barbed wire fencing offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts
Specifications of galvanized spool barbed wire
Barbed Wire Specification | ||||
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barb wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
BWG11#-20# |
BWG8#-17# |
|||
SWG11#-20# |
SWG8#-17# |
|||
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
||

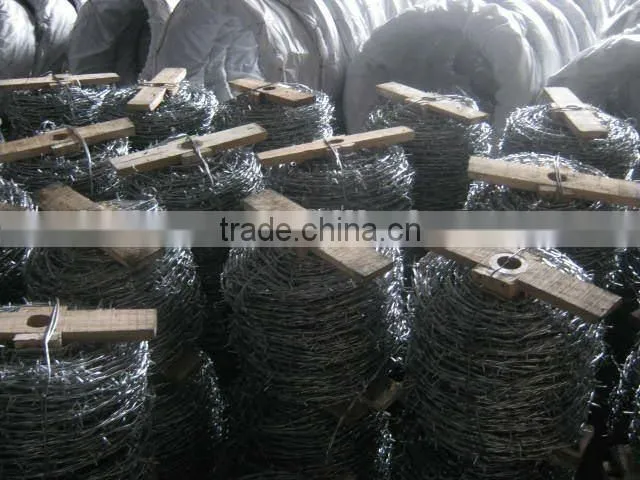

Galvanized Spool Barbed Wire Packing
Loading in container of galvanized spool barbed wire
Usage of galvanized spool barbed wire
Hot Dipped Galvanized Barbed Wire serves in protecting of grass boundary, railway, highway and also widely used in military, jail, industry, agriculture, animal husbandry, dwelling house, plantation for fencing.
PVC coated galvanized spool barbed wire fencing
We are galvanized spool barbed wire manufacturer!
Sincerely welcome your visiting and inquiry!
