Specifications
colored barbed wire different types1.wire gauge:BWG10-18
2.barb length:1.5-3cm
3.babr space:7.5-15cm
4.25kg/50kg per roll

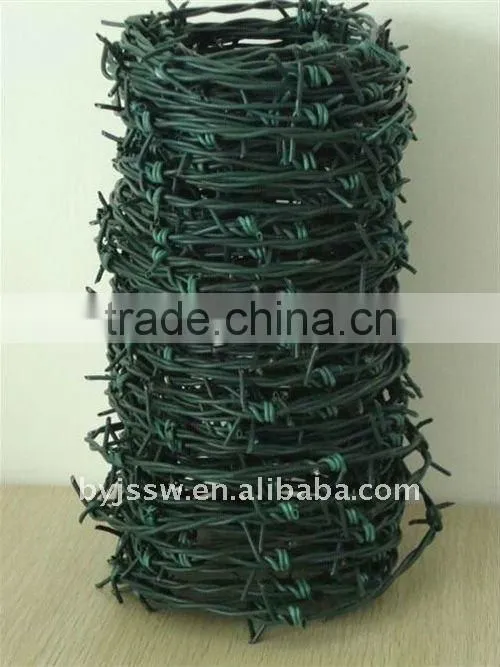

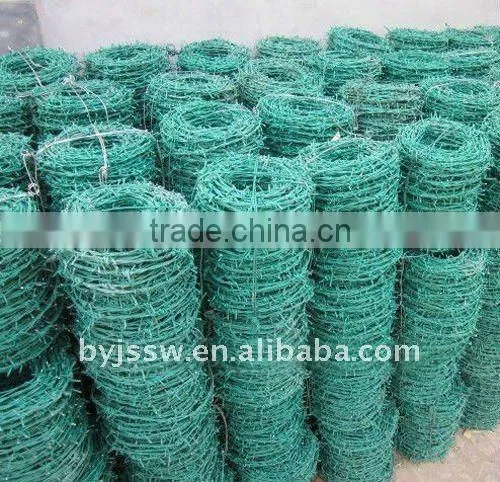

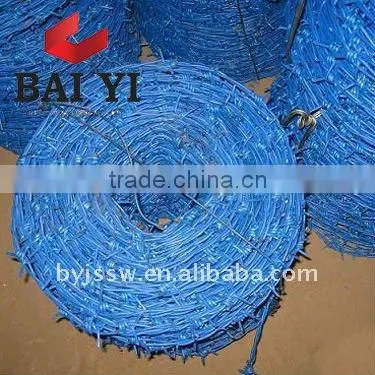

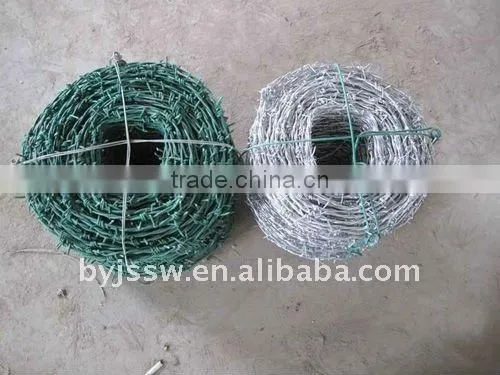

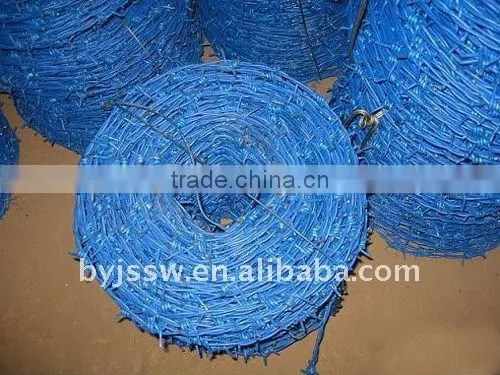

Colored Barbed Wire Different Types

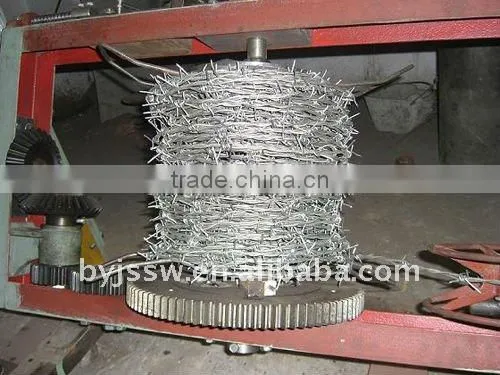

Production of different types barbed wire
1.Colored barbed wire specification:
2.Barb wire Gauge: 18#-10#
3.Barb Wire Gauge: 16#-12#
4.Barb length:1-3cm
5.Barb spacing:7.5-15cm
6.Colored barbed Wire Weight:25kg,50kg
7.Colored barbed Wire Weaving way: Twist, standard
8.Colored barbed Wire Surface finished: Electro galvanized,Hot dipped galvanized,PVC coated
9.Colored barbed wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
* Single circle barb mesh
Single circle thorn mesh does not need cramp, it should be installed with the natural form
* Beline barb mesh
Beline barbed mesh has many span species to sellect.it not only saves fees but also constructs quickly when reaching effect.
* Fense barb mesh
Fense barbed mesh is a kind of fencing mesh made by the barbed thorn mesh. The barbed is beautiful and practical.mainly used in fence window military protecting.length and dia can be met according to the requirements of the customer.
Ω Hot dipped Galvanized / PVC/ PE Colored Barbed Wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).
Galvanized Barbed Iron Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
Ω Patterns Available for Colored Barbed Wire:
√ Single Twisted Barbed Wire
√ Double Twisted Barbed Wire
√ Traditional Twisted Barbed Wire
Ω Features:Colored barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts
Specifications of colored barbed wire different types
Barbed Wire Specification | ||||
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated colored barbed wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
BWG11#-20# |
BWG8#-17# |
|||
SWG11#-20# |
SWG8#-17# |
|||
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
||

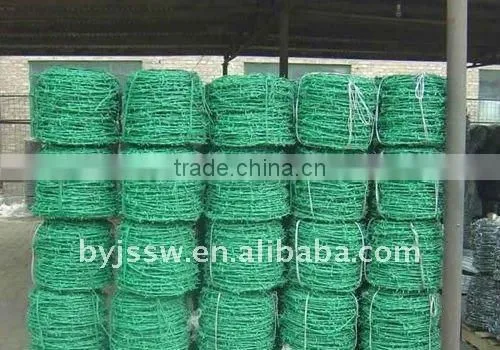

Loading in container of barbed wire
Usage of colord barbed wire
Barb Wire mainly serves in protecting of grass boundary, railway, highway and also widely used in military, jail, industry, agriculture, animal husbandry, dwelling house, plantation for fencing.
We are colored barbed wire manufacturer!
