Specifications
Perforated Metal Mesh/SheetWire dia: 0.2mm-12mm
Opening: 0.8mm-100mm
Open area: 10%-70%
Hole shape: round, square, diamond
Application :
perforated mental mesh is widely used for environmental protective screen of noise abatement of municipal facilities of traffic, such as expressway, railway, subway which are passing through the cities; wall of the building, generator room, factory workshop and other acoustical boards for reducing the noise.

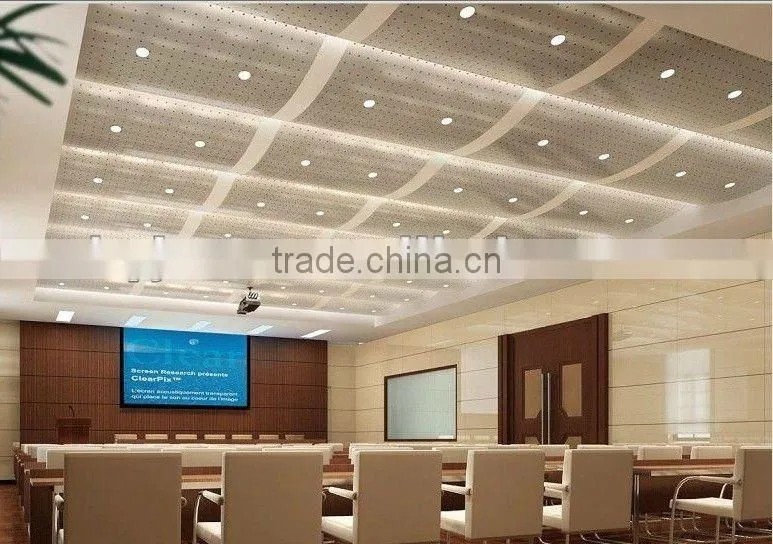

Can be used in the ceiling of the building , the acoustical material of the wallboard,

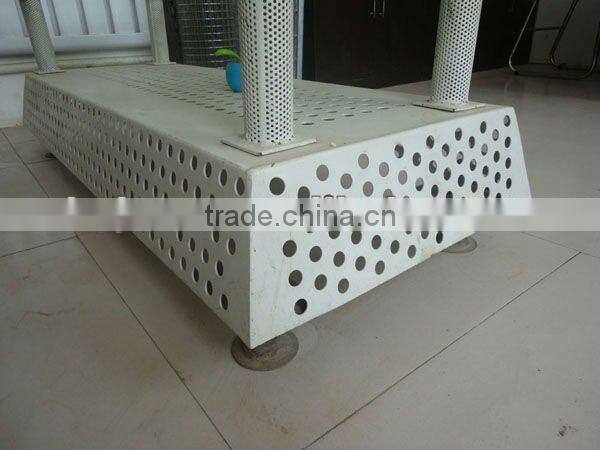

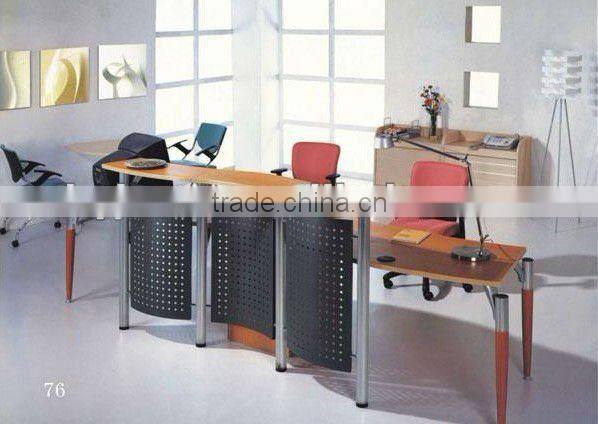

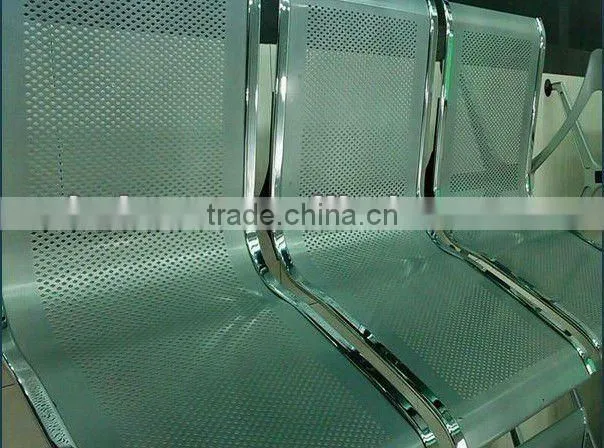

Can be used in the exquisite ornament punching board of the building stair, balcony, environmental protection desk or chair
Can be used in protective cover of mechanical equipment; the mesh cover of magnificent audio amplifiers; the grinding sieve, mine sieve of grain, feed and mine; stainless steel fruit basket, food cover fruit plate for cooking apparatus
and also shelve mesh for market, decorating exhibition platform, ventilating mesh for grain depot, lawn Infiltration mesh for pitch, etc.
Specifications of Perforated Metal Sheet for your reference:
1.Material
Low carbon steel plate, stainless steel plate, brass plate, Aluminum plate, nickel plate an several of nonmetal plate.
2.Hole Type:
Long hole, Square Hole, Circular Hole , Triangle Hole, Hexagon Hole , Fish scale Hole.
3.Shape:in rolls or in panels
Hole Diameter |
Staggered Centers |
Sheet Thickness |
Open Area |
||
0.045" |
1.14mm |
0.066« |
0.033-0.039" |
0.84-0.99mm |
37.00% |
1/16" |
1.59mm |
3/32" |
0.027-0.033" |
0.68-0.84mm |
41.00% |
1/16" |
1.59mm |
1/8" |
0.027-0.066" |
0.68-1.68mm |
23.00% |
5/64" |
1.98mm |
1/8" |
0.027-0.053" |
0.68-1.35mm |
35.00% |
0.081" |
2.06mm |
1/8" |
0.053-0.066" |
1.35-1.68mm |
38.00% |
3/32" |
2.38mm |
5/32" |
0.053-0.066" |
1.35-1.68mm |
33.00% |
1/8" |
3.17mm |
3/16" |
0.027-0.127" |
0.68-3.23mm |
40.00% |
5/32" |
3.97mm |
3/16" |
0.027-0.066" |
0.68-1.68mm |
63.00% |
3/16" |
4.76mm |
¼" |
0.027-0.127" |
0.68-3.23mm |
50.00% |
1/4" |
6.35mm |
3/8" |
0.033-0.111", 0.25" |
0.84-2.82mm, 6.35mm |
40.00% |
3/8" |
9.52mm |
½" |
0.053-0.082", 3/16" |
1.35-2.08mm, 4.76mm |
51.00% |
3/8" |
9.52mm |
9/16" |
0.059", 0.119" |
1.50mm, 3.02mm |
40.00% |
1/2" |
12.70mm |
11/16" |
0.033-0.127", 3/16" |
0.84-3.23mm, 4.76mm |
48.00% |
1/4" Hex |
6.35mm Hex |
0.285 |
0.027-0.033 |
0.68-0.84mm |
76.00% |
3/8" Sq. |
9.52mm Sq. |
Cane« |
0.053-0.066" |
1.35-1.68mm |
51.00% |
Contact Information:
Anping Baiyi Metal Wire Mesh Products Co., Ltd
Tel: 86-0311-80686519
Fax:86-0311-67660919
Mobile: 86- 13673181270
Mail: sales02(at)
Skype: gaoxing0720
MSN: alicegaoxing(at)
Yahoo: wiremeshdys(at)
Google talk: wiremeshdys(at)
Trademanager: cn100725381
QQ: 1935942784
