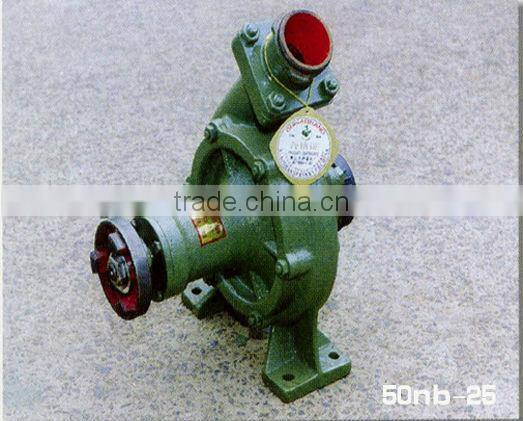

agricultural sprinkler irrigation system model 50NB-25 with water pump
Specifications;
High water distribution with spacing up
Color-coded bayonet nozzles for easy service
Integrated stream-straightening vane for maximum range
Heavy-duty plastic materials provide resistance to corrosion, chemicals and radiation
Specifically designed for field edges irrigation
Save water,save energy,easy using
Irrigation System have many types for choice.
Mainly consist of Diesel engine, Pump, Sprayer, Pipe. We can also provide a trolley and this irrigation system set can be
moved very easily.
can be used on farms, gardens. We have different types for choice according to your different using.
Irrigation System Introduction:
Hose reel irrigation system is turbine-driven machines designed for fully mechanized and labor-saving irrigation. The main component parts such as turbine, automatic layering mechanism and crop-protecting sprinkler balancing mechanism enjoy the international patents and have been improving constantly.
Technical parameter:
1. Precision water turbine driving
High efficiency and energy saving and the water turbine can realize stepless speed regulation of recovery speed
2. Tube recovery system: Advanced tube recovery system to make sure every layer PE sprinkler irrigation pipe can be arranged in place and accurate.
3. Strong recovery power
Even in very low flow conditions, water spray car still can retrieve the tube fast, the fastest speed can be up to 35 m/hour, which make it easier to adjust the irrigation quantity according to adjust crop demand.
4. Chain transmission: Running noiseless, equipment work more smoothly
5. Advanced anti-reversal automatic brakes apparatus
Changing the original brakes apparatus, easier to drag PE pipe human, and avoid reel reverse.
6. Best quality PE pipe: Secret formula makes PE pipe high-quality and resistance to use.
7. Efficient anticorrosion: Frame and water spray car all use galvanized steel parts, provides best anticorrosion protection for metal parts with long service life.
Farm sprinkler irrigation system General Features:
1 Small & flexible
2 Easy operation
3 Save water design
4 Long life & low maintenance
15~18HP farm movable sprinkler irrigation system
Quick Details;
Type: |
Irrigation System |
Usage: |
Agriculture |
Condition: |
New |
Place of Origin: |
Hangzhou China (Mainland) |
Brand Name: |
SL |
Model Number: |
50NB-25 |
Material: |
Metal |
Feature: |
Water saving/water sprinkling |
Diameter: |
3 inch |
After-sales Service Provided: |
No overseas service provided |
Matched power: |
11kw |
Pump speed: |
2900R/min |
Head: |
55m |
Flow-ratio: |
45CBM/h |
Continuous suction: |
7-9m |
Self-priming time: |
130s/5m |
Spray cup: |
PY20 |
Jet size: |
6x3.1mm |
Range: |
19.5m |
No. Matched: |
14pcs |
||
Sprinkler Irrigation is a method of applying irrigation water which is similar to rainfall. Water is distributed through a system of pipes usually by pumping. It is then sprayed into the air and irrigated entire soil surface through sprinkler heads so that it breaks up into small water drops which fall to the ground.
Suitable for almost all field crops like Wheat, rice, Pulses, sugarcane, Cotton, Soya bean, Tea, Coffee, and other fodder crops of different land forms such as mountain, downland and flat land. Also suitable for lawn, stadium, garden and park.
All our sprinklers undergo extensive quality testing by China's ministry of water resources. Moreover, performance of the products is also tested in the field to ensure uniform water distribution and higher efficiency.

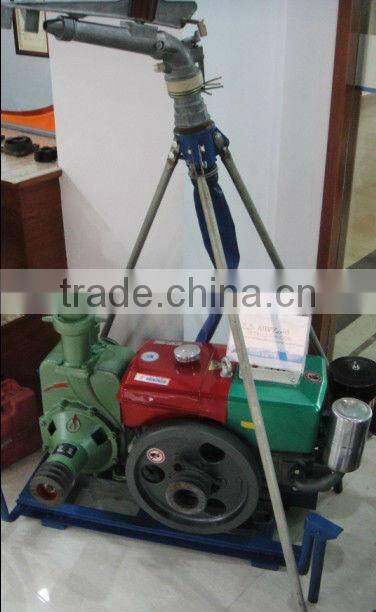

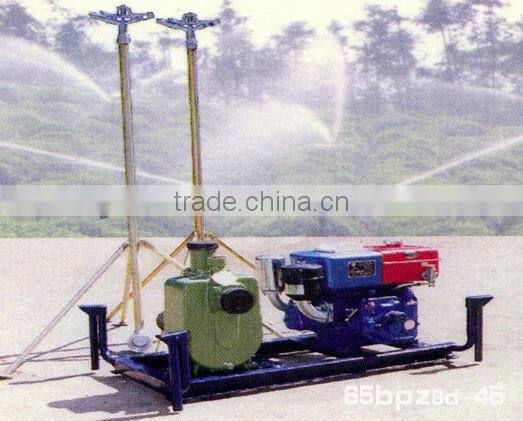

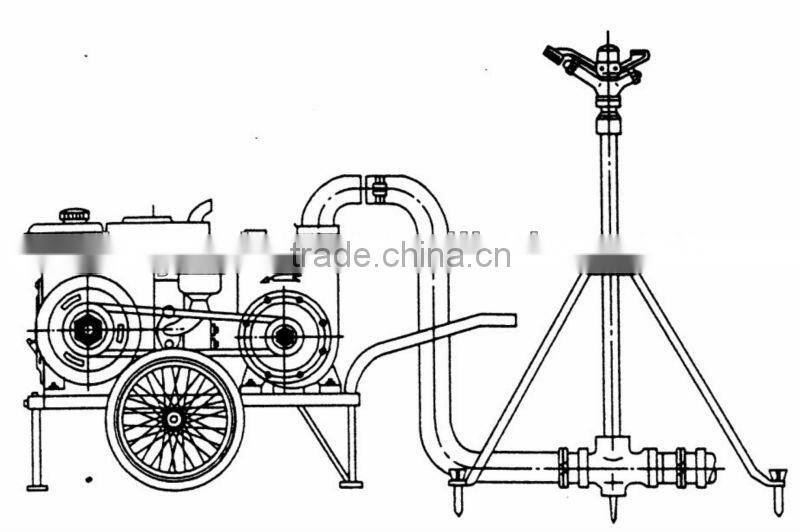

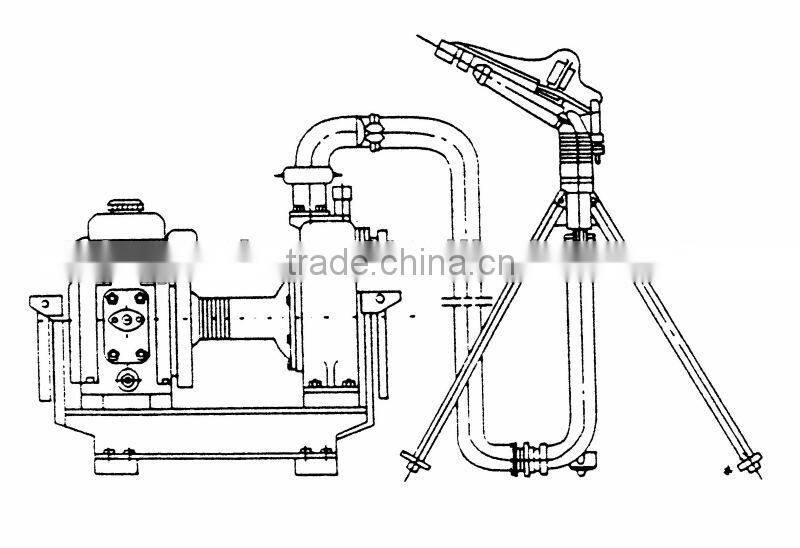

Sprinkling machine is assembled by power machine, pump and pipeline, spray head, fixed or mobile devices into irrigation machinery with integrity in a certain way. Its structure is compact, operation rate of machinery is high, low investment of unit irrigation area. Go especially well with area where source water widely distributed.
The CP series light-small size and light-medium size sprinkling machine, its performance index has advanced level, Sprinkling machine provide efficient coverage for small to large areas and are suitable for use on all types of properties. It is also adaptable to nearly all irrigable soils since they are available in a wide range of discharge capacity.
A, Power: 11kw (15HP), Pump flow: 50m3/h, Rotation speed: 2900r/min.

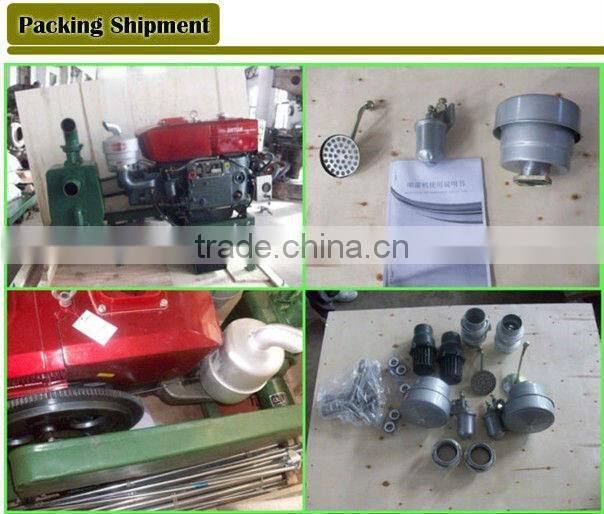

B, Standard Accessories:

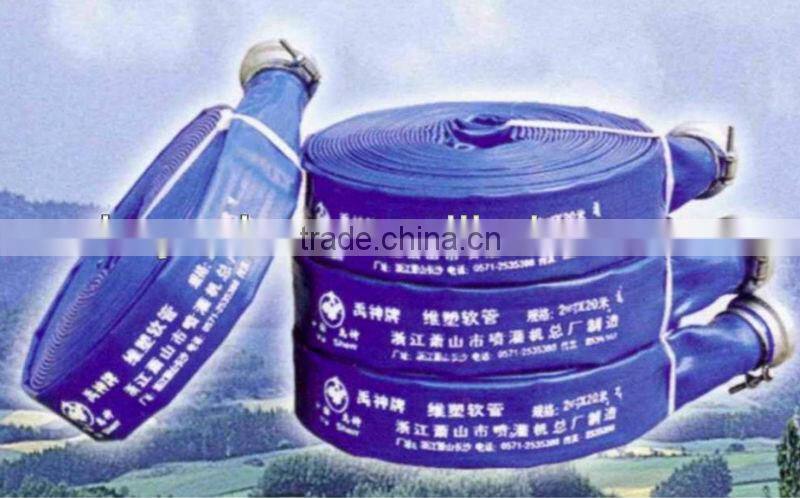

Diesel engine 1 set, pump 1 set, dia80mm rubber inlet pipe 8 meters, frame for hand carring, bolts for installation, sprinklers and brackets 14 sets, and dia80mm PVC flexible high pressure hose 280 meters.
C, one set machine can irrigate 22.5 acres. Irrigation period: 5 days. Once irrigate cover 1.5 acres, and the operation time is 2.4 hours. Distance between sprinklers is 20m.
Quality Warranty
1.We send the same quantity products free or send payment back once customers find problem when get goods.
2.We will reply you within a workday and come up with solutions within 5 workdays when we receive your claim.
3.We will reply you within a workday when receive your inquiry.

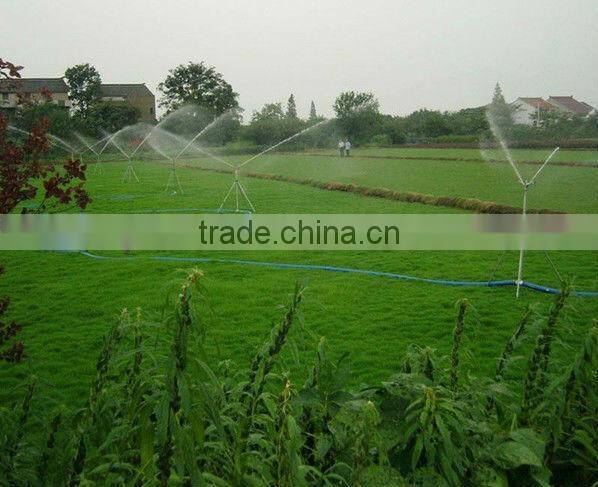

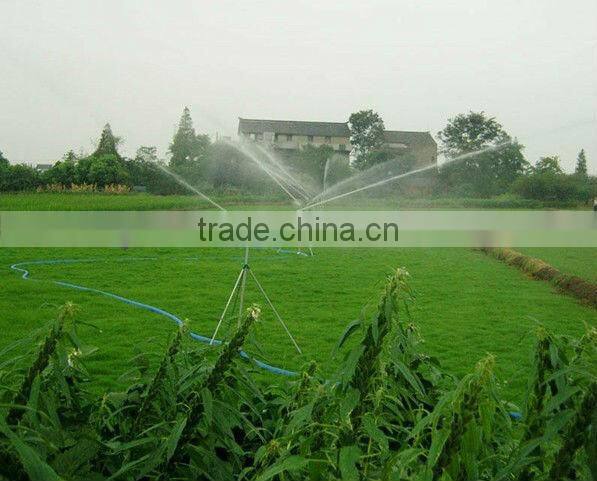

Working photos:
related photos for show;
