Specifications
1) Iron alloy die-casted gearbox2) Compact structure saves mounting space
3) High effiency steady

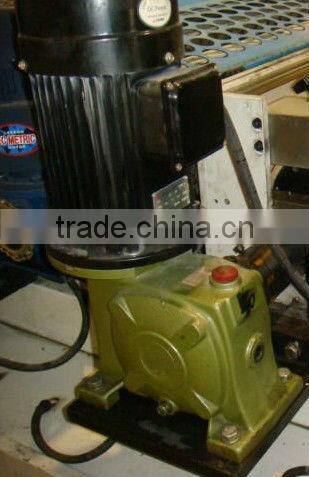

wide transmission rate iron worm reducer with gear motor
Characteristics:
1. High quality iron material.
2. High efficiency.
3. Small size, compact constructure and light weight.
4. Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
Technical Data
1. Input power: 0.06kW-15kW
2. Output torque: 7.8-1195N.m
3. Speed ratio: (5-100) 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
4. Adapt for IEC, NEMA, SERVO
Materials:
1. iron housing.
2. Seal: NAK Seal from TAIWAN
3. Bearing :NSK Brand Bearing or domestic products
Color:
1. green
2.Blue
3. Silver,etc
Quality control:
1.Quality guarantee: 1 year
2.Certificate of quality: ISO9001:2009
3.Every product must be tested before packing
1)Step one: Checking Oil leakage
2)Step Two:Checking Overheating & Noise
Features
· Wide transmission rate, strong output torque
· Structure: base-mounted, input shaft, input flange, additional single or double output shafts
· Compact mechanical structure, light weight, small volume
· Good temperature change resistance
· Smooth operation with lower noise or vibration
· Easy mounting, free linking, high efficiency
· Wide range of application
Applications
· Widely used in flow-line devices,like conveyor belts,etc,driven by motors or other engines with requirements to lower the speed.
General Technical data;
| item name | WPWDT -PC14 |
| size No.: |
025-150
|
| Transmission ratio |
5:1~100:1
|
| color |
RAL5010,blue,silver or customzed
|
Worm shaft |
20CrMnTi with carburizing and quenching. |
The hardness of surface |
56-62HRC with carbonized layer 0.5-0.8mm |
Worm wheel |
worm mandrel is HT250,and worm ring gear,ZQSn10-1 |
| material |
housing-casting iron-HT200-250#/aluminum
worm gear-KK alloy
shaft-chrominum steel-45# |
| packing | paper carton/plywood |
| seal | NAK seal from Taiwan |
| bearing | domestic or NSK |
| warranty | 1 year |
| input power | 0.06-15kw |
| application |
In industrial machine:food stuff,ceramics,chemical,packing, printing,dyeing,woodworking,glass and plastics |
| IEC flange | 56B5,63B5,71B5,80B5,90B5,100B5,112B5,132B5 |
| Lubricant | Synthetic&Mineral |
related photos;
factory pictures as following;
Basic information;
loading container photo;
Advantage:
1. Low MOQ with full types of worm gear reducers: It can meet your variety needs very well.
2. OEM Accepted: We can put clients logo.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
General Order Information
We take great pride in our work and in the wide variety of products that we offer.
We are experienced in servicing the Asia market, European market,USA market,Brasil market,Russia market and Africa market .
Please be aware thatour production lead times depend on specific items and item quantities.
Our success has been basedon our understanding of the demands and nature of promotional and marketing deadlines.
That's why we always ensure that every order is delivered on time.
110th canton fair booth photo;
