NRV Transmission Reduction Gearboxes

Name: NRV Transmission Reduction Gearboxes
Brand: Yushen
SKU: 139236953
Availability: InStock

US$ 20 - 300 MOQ: 10 Sets

Key Specifications

Gearing Arrangement:

Worm

Output Torque:

2.6-1195

Rated Power:

0.06-15kw

Hangzhou Yushen Speed Reducer Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Gearing Arrangement Worm

Output Torque 2.6-1195

Rated Power 0.06-15kw

Input Speed 1400rpm

Output Speed 14-280rpm

Place of Origin Zhejiang, China

Model Number NRV-VS

Brand Name Yushen

Specifications

(1)High quality cast iron worm gear gearbox,
(2)large output torque, stable transmission with lower noise.

NRV transmission reduction gearboxes

Specifications

(1)High quality cast iron worm gear gearbox,
(2)large output torque, stable transmission with lower noise.

Features

· Wide transmission rate, strong output torque

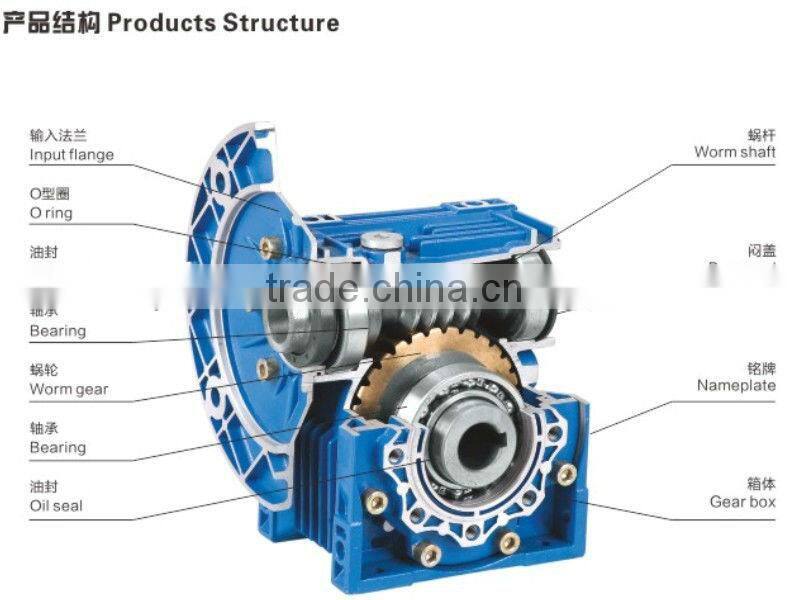

· Structure: base-mounted, input shaft, input flange, additional single or double output shafts

· Compact mechanical structure, light weight, small volume

· Good temperature change resistance

· Smooth operation with lower noise or vibration

· Easy mounting, free linking, high efficiency

· Wide range of application

Applications

· Widely used in flow-line devices,like conveyor belts,etc,driven by motors or other engines with requirements to lower the speed.

Basic information;

model:NRV025 030 040 050 075 090 110 130 150

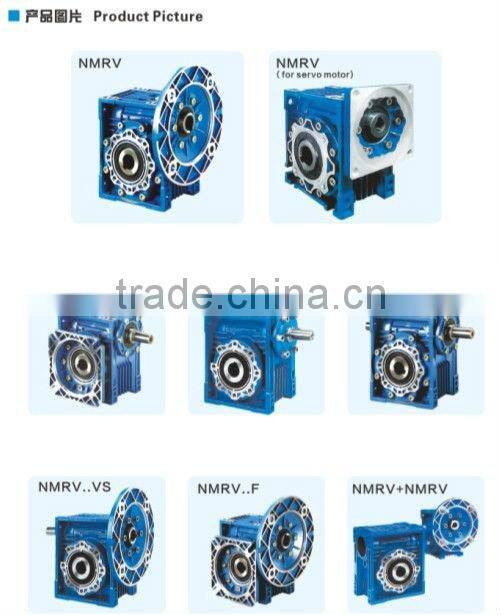

single unit versions	NMRV-fitted for motor flanged coupling NRV-with input shaft NMRV-VS motor flanged coupling with worm extension shaft NRV-VS motor double extension worm shaft
single unit reduction ratio	1:5/7.5/10/15/20/25/30/40/50/60/80/100
output torque	2.6-1195N.M
power	0.06-15kw
after sale service	free components or complete units will be supplied to replace the damaged ones of quality problems during guarantee period,free technical support all the time	color:	blue,silver or customized
bearing material:	Ball bearing or Tapered roller bearing/SKF;NSK;TIMEN;C&U	body material:	aluminum alloy and cast iron
Worm shaft:	20CrMnTi with carburizing and quenching.	oil seal :	SKF,TTO,NAK
The hardness of surface	56-62HRC with carbonized layer 0.5-0.8mm	Worm wheel	worm mandrel is HT250,and worm ring gear, ZQSn10-1
