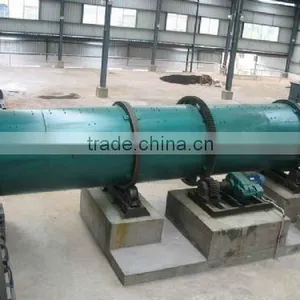

NPK Fertilizer Granulator Rotary Drum Type Machine

Specifications

1High granulation ratio
2Corrosion-resistant
3Long service life-span
4Low energy-consumption

Fertilizer machines:
NPK Fertilizer machines were mainly used for manufacturing organic fertilizer and inorganic fertilizer, including granulator, crusher, mixer, drying machine, cooling machine, screening machine, coating machine and packing machine.

Feature of fertilizer machine:
1. High granulating rate (≥ 93%)
2. Granulation uniform
3. Various capacity(10000-300000 TPY)

International market:
Those were popular with in developing countries, such as Pakistan, Paraguay, and South African.

Specification:
The whole line will be designed according to the capacity and detail requirements, welcome to your inquiry. The quotation with technical data will be sent soon, thanks

Technical parameters of compound fertilizer rotary drum granulator

Specification(m)	Shell				Capacity(t/h)	Power(kw)
	I.D.(mm)	Length(mm)	Slope(°)	Rev(r/min)
Ø1.4×4	1400	4000	2.5	15.05	5	11
Ø1.6×6	1600	6000	2.5	12	7	15
Ø1.8×6	1800	6000	2.5	11.5	8	15
Ø2.0×7	2000	7000	2.5	10.8	14	30
Ø2.2×8	2200	8000	2.5	10.85	20	37
Ø2.4×8	2400	8000	2.5	9.6	25	55
Ø2.8×8	2800	8000	1.5	6.5	35	90
