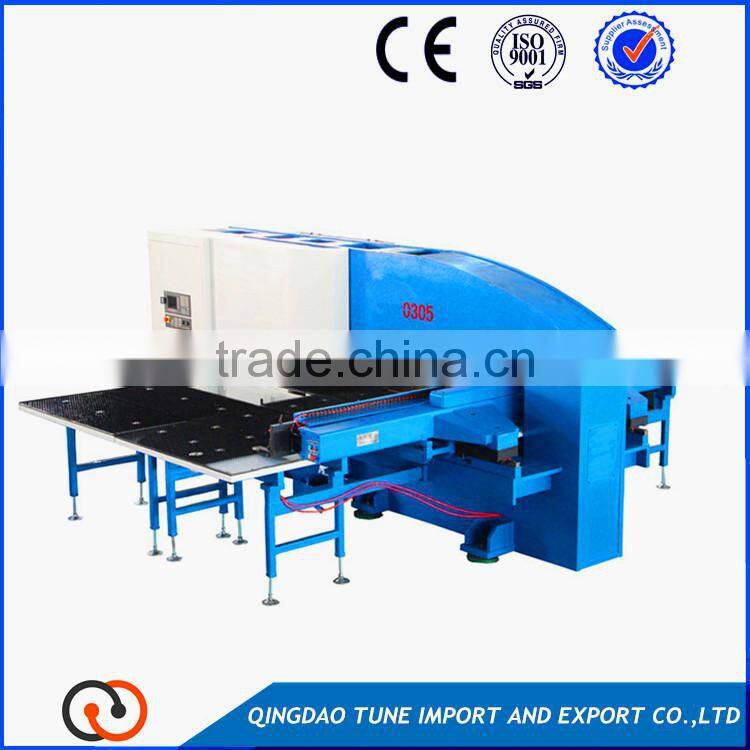

Servo Power Source and Used Condition cnc turret punch press
1.Adopts Japan Fanuc 5 axis CNC special system and match up Japan Fanuc servo motor to make it fast and reliable;
2.Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3.High level of the digital hydraulic main transmission system, speed is faster, and the stroke can be adjustable;
4.With the second positioning function, can achieve without dead zone processing;
5.The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
6.Main pneumatic components, electric components, hydraulic components and transmission components adopt international famous brand product, which makes the punch work perfectly;
7.Equipped with concentrated lubricating device, reduce each motion vice friction, improve service life;
Specification |
Unit |
TUNE-ES20NT |
Transmission mode |
/ |
Servo Drive |
Punch Force |
KN |
200(20T) |
Power Rating |
KW |
30 |
Max. Processing Size |
mm |
2500*1250 |
Max. sheet Thickness for carbon steel |
mm |
≤2 |
Max. Punch Diameter |
mm |
Φ88.9 |
Max. Traversing Speed |
m/min |
80 |
Max. Punch Hit |
hpm |
900 |
Hole Accuracy |
mm |
±0.1 |
Number of stations in turret |
No. |
26 |
1mm step punching frequency |
hpm |
660/min |
Controlled Axis |
No. |
5 axis(X,Y,A,C,T) |
Rotating location |
NO. |
2 |
Air Pressure |
mpa |
≥0.8 |
Outline Dimension |
mm |
4490*5300*2110 |
Machine Weight |
T |
12 |

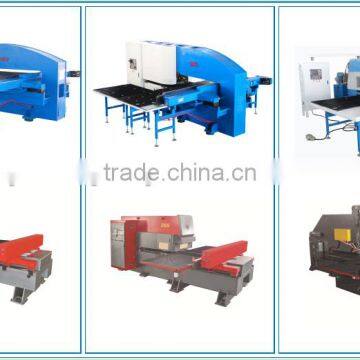

Main Products

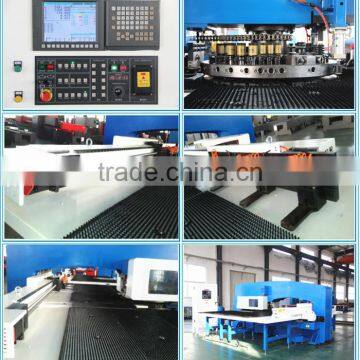

Main Parts
Pre-sale services
TUNE Company will be the intention of the company to provide customers with a variety of production technology program, including technical advice, sample punching, equipment selection, the development of non-standard products according to customers' needs
Installation and commissioning
TUNE company while delivering the equipment to the customer on time, send technical service engineers on-site installation. Under the conditions are ripe for user installation conditions, technical service engineers will be within the specified time ordered the equipment installation is completed for users
Technical Training
TUNE offers free technical support, installation is completed at the user site, the free operator training on the user side.
Sales commitment
TUNE will provide a full range of after-sales service users. Warranty period for the parties responsible for the free service, respond within four hours after receiving the demand side of the phone or fax, if you can not solve the problem over the phone, we are committed to further technical staff within 24 hours to provide users with solutions. After warranty expiration, to provide maintenance services for life.
Q1: Do you have after-sale service?
A : Yes, we do. Any problem during using, we will reply within 8 working hours with technical solutions!
Q2: Can you offer pre-assemble service?
A:Yes, we have special assembly workshop which can help offer pre-assemble and commissioning for most machines.
Q3: How long have you been in this industry? What is the square meter of your factory ?
A: Over 8 years. Total building size 50000 m2.
Q4: What standards are you carrying out for your products? What certificate you have now?
A: All of our machines meet ISO certification standards.
Q5: What’s your main international market?
A: We have exported to about 40 countries and regions all around the world,such as, India,
American, Canada, Russia, Australia, Mexico, Brazil, Columbia, Middle East, South east Asia and so on.
Q6: Can you offer overseas installation and service?
A: Yes, we can send technicians to your factory to help you install and commissioning at any time!
Sincerely invite you to visit our factory anytime!
