chicken essence Nlylon Bag Wrapping Machines

Specifications

Suitable for measuring the powder materials .such as milk powder and chemical powder

  Applications

Suitable for measuring the powder materials .such as milk powder and chemical powder



Specification

Speed :20- 70bags/min

Bagsize:

60-300 mm L

60-200 mm W

Film thickness: 0.04-0.08mm

Power : 2.0KW/220V

Machine weight : 1300kg

Machine dimension:

(L)1400*(W)970*(H)1600mm

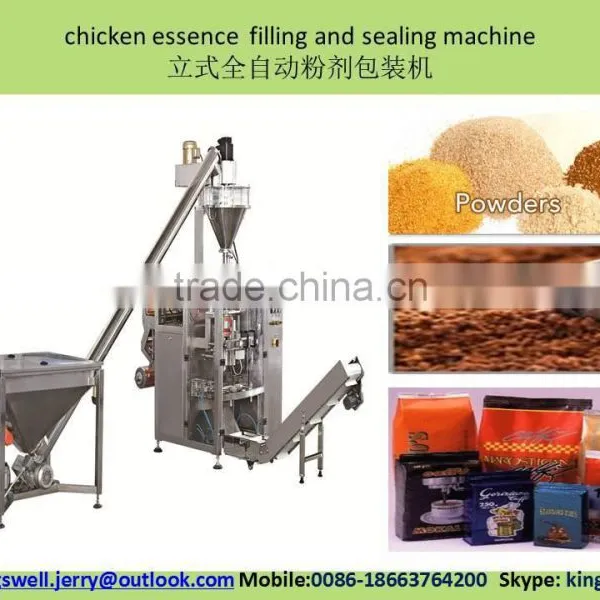

The system includes five parts:

1)     KS- basic machine

2)     KS- screw conveyer

3)     KS-Auger filler machine

4)     Finished products conveyer

5)     Oil-free air compressor



1,Scope of application

Suitable for measuring the powder materials .such as milk powder and chemical powder



2,The major performance and structural feature

PLC control with touch panel-step by step instruction.

Equipped with servo winding system,pneumatic control system.

The maximize to improve the whole machine precision, reliability and stability.

use intellectual temperature controller,the high temperature control to ensure neat sealing.

the perfect automatic alarm safety protection,little waste.the machine will automatically complete all packaging processes from feeding, measuring, filling, Printing ,finished bag





4,Features of KS- screw conveyer





Introduction: This machine adopt screw conveying material, and the storage can be vibrated . it is suitable for conveying various powder and little pellets



Technical specification:

Lifting height	2.2m-10m
Lifting volume	3 cubic meter/hour
Model	KS-D2
Specification	Making according to the specifications of the buyer
Material	Carbon steel, stainless steel
Technical index	1. the size and weight of the conveying material.
	2. conveying speed and height

5,KS- Auger filler machine



  I.Technical specification

item	small type auger filler	middle type auger filler	large type auger filler
Packing weight	10-300g	10-1000g	10-5000g
Packing speed	10-60 bags/min	10-50 bags/min	10-40 bags/min
Packing precision	±0.3%-1.5%	±0.3%-1.5%	±0.3%-1.5%
voltage	380V/ 1KW	380V/ 1KW	380V/ 1KW
dimension	510*585*930mm	690*1030*1100mm	600*1250*2000mm
weight	100kg	150kg	220kg



II. Application:

Suitable for measuring the powder materials .such as milk powder and chemical powder



III. The major performance and structural feature

* Simple structure, stable operation, simple and convenient maintenance;

*The machine applies whirl threaded rod feeding, servo coding and micro-computer control technology, which is the most important technical feature for the machine. Integrated coding and controlling into one, it has features such as flexible action, low noise; stable, reliable and rapid dosing speed and high precision, etc. In addition, it also displays the times of dosing.



IV. The auger filler can combines with the machine of SP-398 , SP -420, SP -520. SP -720. Especially suitable for packing the powder and very little pellets . it integrates metering , bag making , packaging , sealing , printing , and counting into one .



6,product conveyor

Feeding speed	30m/minute
dimension	2110×340×500mm
Voltage	220V/45W
Packing size	164x45x53cm
Net weight	40kg
Gross weight	50Kg





  6,Optional

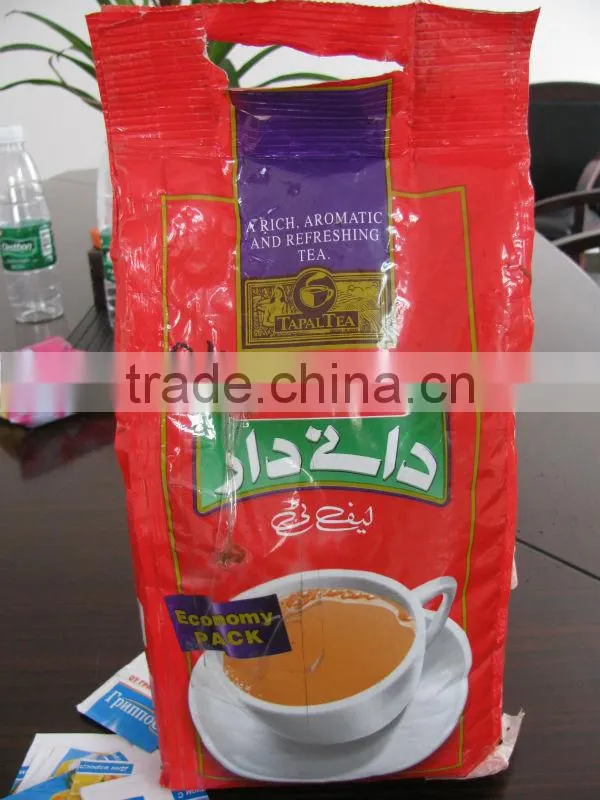

1) Gusset bag making device



 2) Hole punching



 3) Linked bag devic







7,Other modles







Client can choose different modles such as the machine of SP-398, SP-420, SP -520. SP -720 depend on bag sizes







8. Voltagein China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries







9. Machines Materials:All the machines are made by stainless steel(also can be made in carbon steel frame according customer demand)

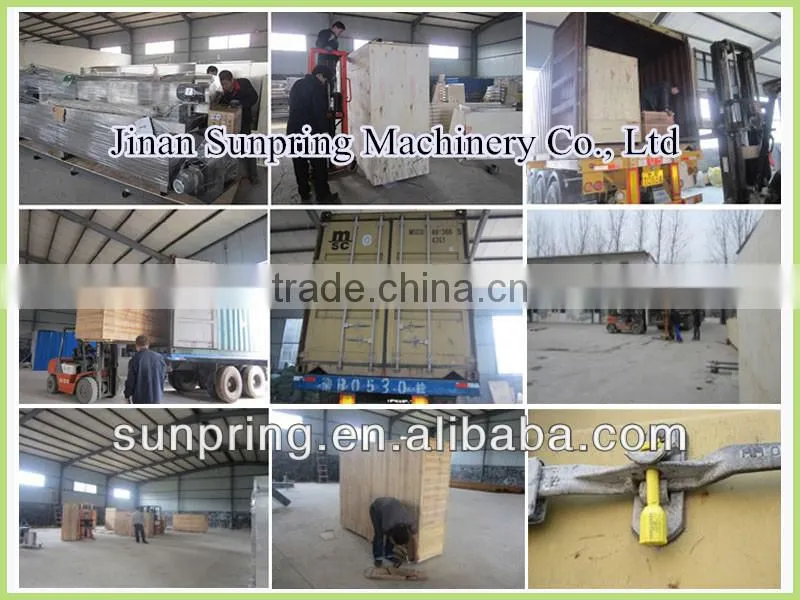

10. Outside package: Standard export wooden case. Inner package: stretch film







11. Our cooperation with overseas customers



 At present, Our Company locks in 70% market share in China, and our products have been selling well to Germany, Australia, Ukraine, Malaysia, Indonesia, Syria, Philippine, Thailand, Romania, South America, Middle East, Africa and other countries or regions.

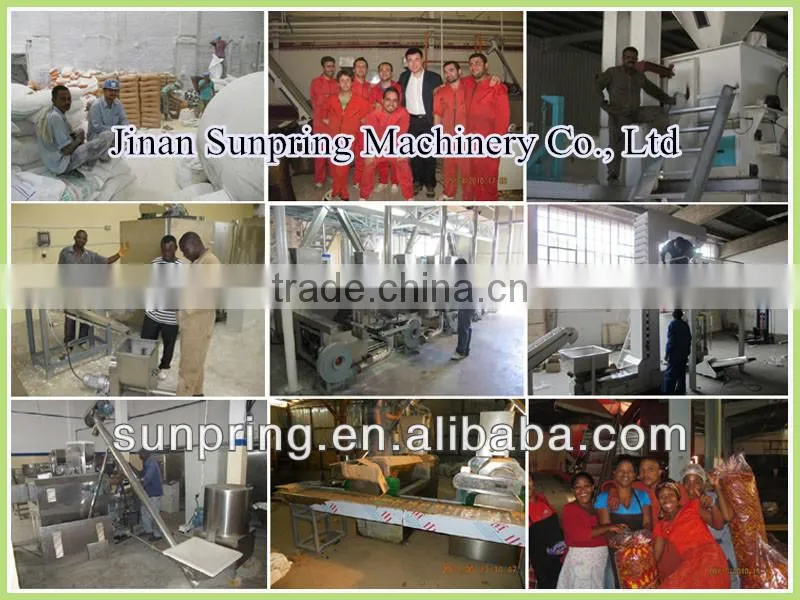

12. Installation & commissioning in customer's factory





13. Reference customer's list



14. About US



We, Jinan Sunpring Machinery & Equipment Co., LTD., is a professional food and packing machinery manufacturer in China. An exceptional engineering team, personal customer service center and high-quality manufacturing capabilities have evolved exponentially since our humble beginnings in 2004, making us one of the preeminent providers of reliable extrusion equipment world-wide. We can guarantee customers superior quality machines up to design requirements and perfect working state. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.



Sunpring Company has its own manufacturing plants workshops in China, business scope covering mainly machinery and equipment for corn meal milling system, corn flakes & breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system, soy nuggets system; as well as pet food/fish food system. Sunpring Company engages in the technical research of extrusion foodstuff, in order to let our clients have superior foodstuffs to sell in the market. We can improve client's equipment and provide related training on new advanced technique. We can also make special designs for special products and materials according to clients' special requirements.
