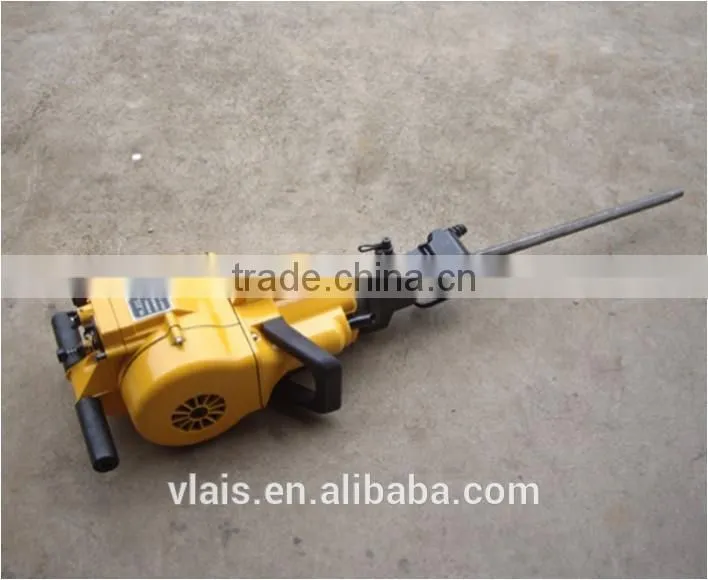

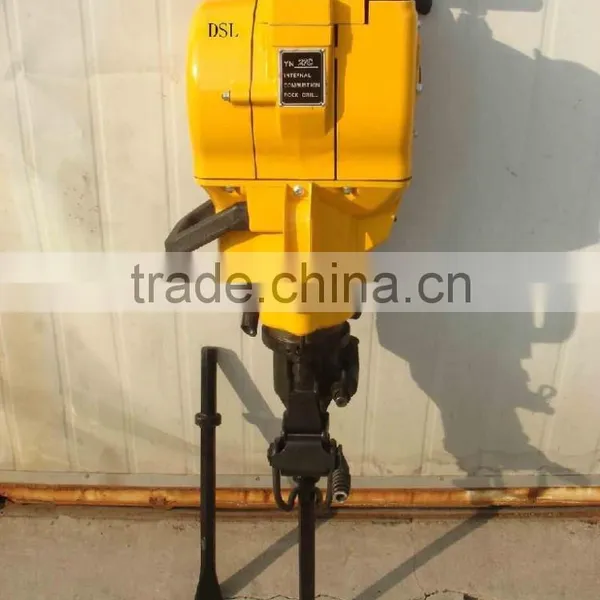

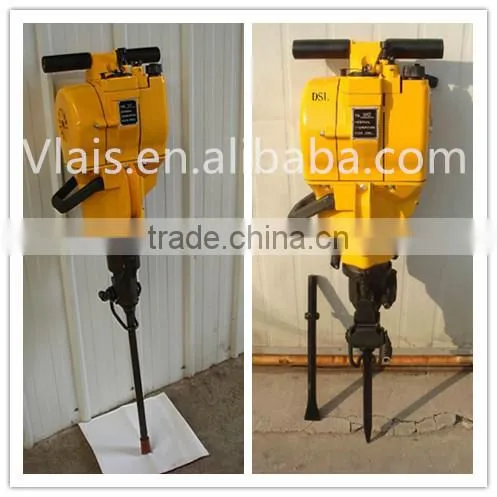

Introduction of the YN27J Internal Combustion rock drill machine:
The internal combustion rock drill type YN27J is a very efficient hand held drill machine bulit up with gasoline engine, air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used for breaking, percussive drilling, tamping besides rock.
Tech Specification:
Rock Drill Type |
YN27J |
| Weight (kg) | 27 |
| Overall dimension(L*W*H) (mm) | 746*315*229 |
| Type of engine | single cylinder,air cooled two strokes |
| Displacement of engine piston | 185cm3 |
| Type of carburetor | hand needle valve,no floating type |
| Ignition system | Controllable silicon contactless system |
| Diameter of engine piston (mm) | Φ58 |
| Stroke of engine piston (mm) | 70 |
| Rotating speed of engine (r/min) | ≥2450 |
| Rotating speed of drilling rod (r/min) | ≥250 |
| Oil consumption (L/m) | ≤0.12 |
| Tank capacity (litre) | 1.65 |
| Max.drilling depth (m) | 6 |
| Shank size (mm) | Hex 22x108 |
| Mixing ratio of gasoline and lubrication oil (in volumes) | 12:01 |
| Clearance of Spark plug | 0.5 -0.7mm |
PRODUCT PICTURES
Advantages:
•Needless to replace the internals of the engine head, just handle the handle to operate it.
•Easy to operate. More time-saving and effortless. Drilling faster and more efficient.
•Have reached the Tip-top level of the same field now, and allow to be replaced with the same kind of the domestic products.
Applications:
Available for drilling, splitting breaking, ramming, shovelling. And widely used in mining,road-construction, quarrying and national defense construction, etc.
