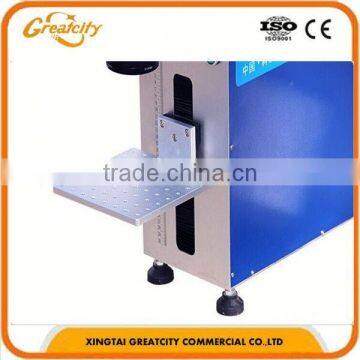

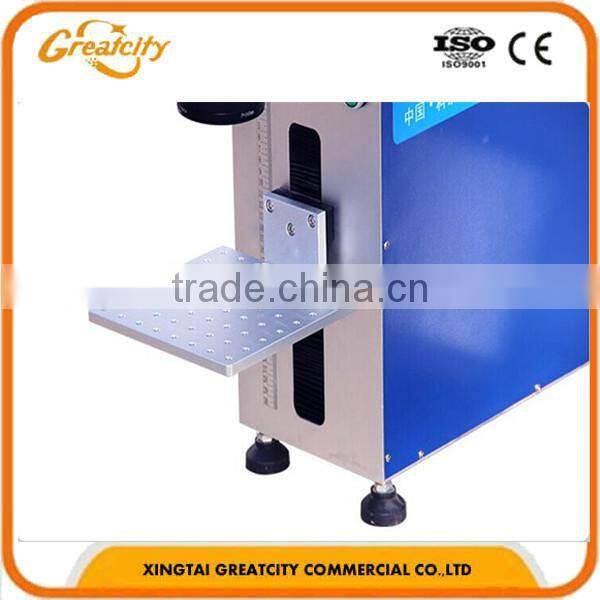

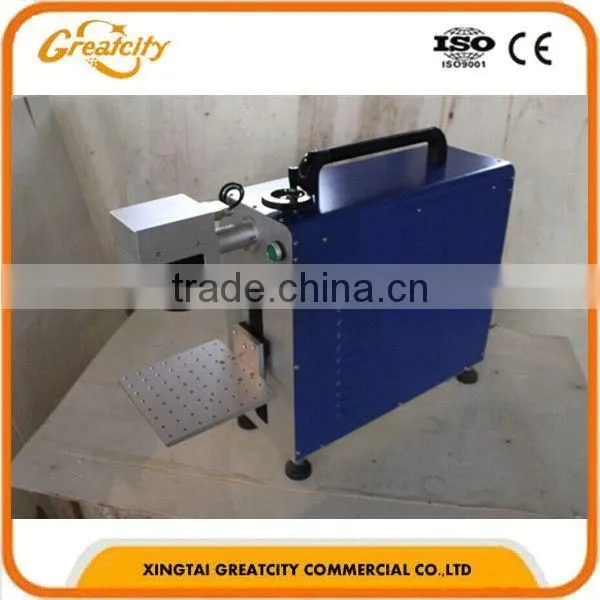

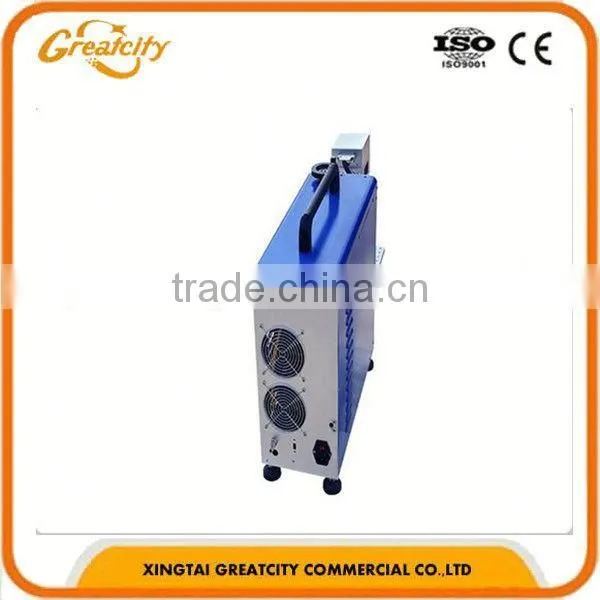

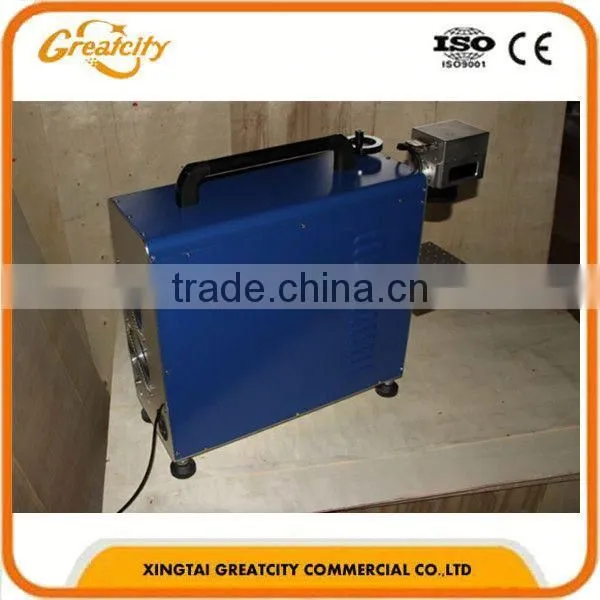

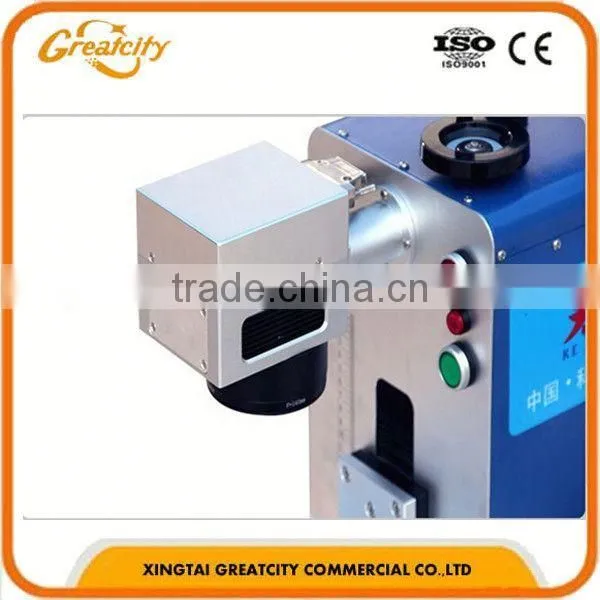

Help CenterHigh Precision 3D Mini Fiber Laser Marking Machine , Portable Metal Laser Printing Machine for Plastic , Stone , Stainless Steel
Related Products
-
Laser Marking Machine for Animal Ear Tags ,portable ModelUS$ 1,500.99 - 2,999.99MOQ: 1 Set -
5w 6w8w 9w 18w LED Light Bulb Optical Fiber Laser Marking Machine/IPG Laser SourceUS$ 1,500.99 - 2,999.99MOQ: 1 Set
-
220v/380v Electric Hoist,providing Wire Rope Hoist/chain Hoist/mini Hoist/electric WinchUS$ 200 - 400MOQ: 1 Set
-
Popular In India ELECTRIC HOISTUS$ 200 - 400MOQ: 1 Set
-
Best Selling CE Approved ELECTRIC HOISTUS$ 200 - 400MOQ: 1 Set
fiber laser marking machine
The fiber laser marking machine series fiber laser marking machine adopts a top-notch fiber laser and an excellent scan system with high-speed vibrating mirrors, leading to stable output power, high-quality laser beam, fast marking speed and extraordinary overall performance. This fiber laser marking machine is delicate in appearance and handy to operate, with low cost of depreciation, free from any maintenance and without any consumable or malfunction in a long-time continuous running, perfectly satisfying clients in need of large-scale production
fiber laser marking machine
1. This industrial marking machine enjoys an excellent manual focusing system and user-friendly operating structure.
2. The imported fiber laser is protected with an isolated layer, effectively lifting its stability and extending its service life.
3. The laser beam is top-quality consistently both inside and outside, much more excellent than those of traditional laser markers.
4. The laser beam TEM00 mode of the fiber laser has a less than 200um focus spot diameter and 1/4 more expanded angle than YAG-DP, resulting in stunning performance in marking small and subtle labels.
5. The laser has a high rate of converting input electric power into output light power, leading to less than 500W electric consumption in total, accounting for 1/10 of the electric consumption of YAG laser.
6. The fiber laser marking machine with a small body, a long service life, and a maintenance-free guarantee is suitable for any working environment.
7. Its performance in fast-speed marking is remarkable, tripling or even quadrupling the marking speed of traditional ones.
8. It supports various marking software and formats like CorelDraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP, SHX, TTF, etc, and has auto-coding ability for serial number, batch number, date, bar code, etc.
Technical Parameters of fiber laser marking machine
| Model | FOL-10/FOL-20 |
| Laser power | 10W/20W |
| Laser type | Fiber laser |
| Machine power | 500W |
| Minimum line width | 0.015mm |
| Wave length | 1064nm |
| Repetition rate | 20KHz-100KHz |
| Marking speed | 7000mm/s |
| Marking scope | 50*50/110*110/200*200/300*300mm (optional) |
| Operating voltage | AC220±10% 50Hz / AC110±10% 60Hz |
| Cooling type | Air cooling and protection system |
| Acceptable graphic format | PLT, PCX, DXF, BMP, AI |
| Operating temperature range | 15-35°C |
| Minimum character | 0.15mm |
| Repeat position accuracy | ±0.001mm |
| Net weight | 42kgs |
Terms & Condition of Purchase: After we receive PO from customer with stamp, we give PI for customer.
Lead Time: After receiving customer's deposit, within 5 - 7 days.
Wooden Box: There is total one wooden box.
FOL-10
Machine Dimension | 30" x 10" x 22" (750mm x 250mm x 550mm) | |
Machine Weight | 93lb (42kg) | |
| Package | Wooden box | |
| Packing Size | 33‘’x14‘’x26‘’ (850mm x 350mm x 650mm) | |
| Gross Weight | 132lb (60kg) | |
