Specifications
1.All material is stainless steel 3042.This is the primary processing system
3.The capacity is 2T/H
Dates processing line
1.Introduction
The date processing line is made up of hoist,sundries choosing machine,bubble cleaning machine,
roller cleaning machine,high pressure spraying machine,drying machine(surface water),sterilizer,
grading machine,drying machine(inner water).This is a primary processing line.

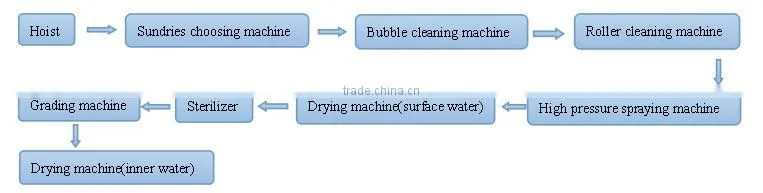

2.Procedure
3.washing procedure
Put dates into hoist hopper: a lot of small stones drop on ground trough the roller intervals.Dates are
transported in the sundried choosing machine: we can adjust the wind capacity by the regulating valve,
the dust,hair and others can be apart from dates.
First washing stage:dates are transported into bubble cleaning machine(moving in bubble and belt),
there is a small hoist device,dates are transported into the spraying part(it can get rid of the surface
dust).
Second washing stage:dates are transported into roller washing machine(roller can get rid of the
dust in the gap of date).
Third washing stage:dates are transported into high pressure spraying machine(match a high
pressure spraying system to it).
3.circulating water system
High pressure system extract(by the pump C under roller conveyor) pure water(in the water box tank
A),water(water box B and A) can be extracted by the pump B under the roller washing machine by
tube connection and after that backflow water box B.Pump A(under bubble cleaning machine) extract
water in water box B,water flows bubble washing machine’s water box.
4.Technology data
Name |
Material |
Function |
Remark |
Hoist |
Roller :SUS304,Ø32mm,T=1.2mm Backplate:SUS304,T=2.0mm Support:SUS304 Square tube:50*50*1.2mm |
Hoist dates material |
2000*1200 |
Sundries choosing machine |
Body:SUS304,T=2.0mm Support square tube 50*50*1.5mm |
Get rid of dust,leaves,and others |
5000*850*2500 |
Bubble washing machine |
Water box:SUS304,T=2.0mm Frame:SUS304,50*50*1.5mm,square tube Belt:SUS304 |
High pressure generate bubble to roll dates.There are high pressure sprayers at the end of the machine to wash dates. |
5000*1300*1300 |
Roller washing machine |
Water box and backplate:SUS304,T=2.0mm Frame:50*75*1.5mm square tube |
Wash dust in gaps of dates to wash thorough. |
3800*1300 |
High pressure spraying machine |
Frame and backplate:SUS304,T=2.0mm Roller dimeter:SUS304,Ø304,T=1.2mm |
This is the second washing stage machine,to wash more cleaner. |
3500*1100 |
Drying machine(surface water) |
Frame:SUS304,T=2.0mm Belt:SUS304 |
Dry the surface water of dates to reduce time in drying room |
3000*900*1400 |
Sterilizer |
Frame:SUS304,T=2.0mm Belt:SUS304 |
Sterilizer dates after dry,reliable and safety |
7000*900*1200
|
Grading machine |
Frame and backplate:SUS304,T=2.0mm Roller dimeter:SUS304,Ø304,T=1.2mm |
Grading dates in 9 grades at most |
7500*1100*1600 |
Drying machine(inner water) |
The transportation belt have 3 grades.
|
21000*3000*3000 |
Remark:all water tube dimeter is 50mm,thickness is 1.5mm,SUS304.Power is 380V,capacity is 2T/H.
5.Production procedure
6.Picture

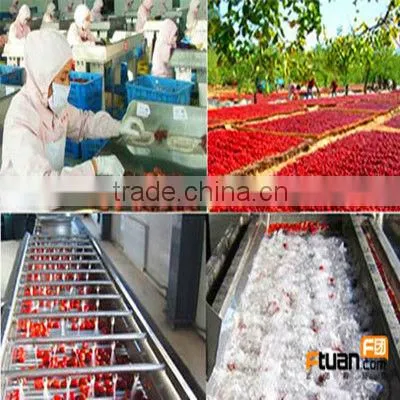

- whole picture
- hoist

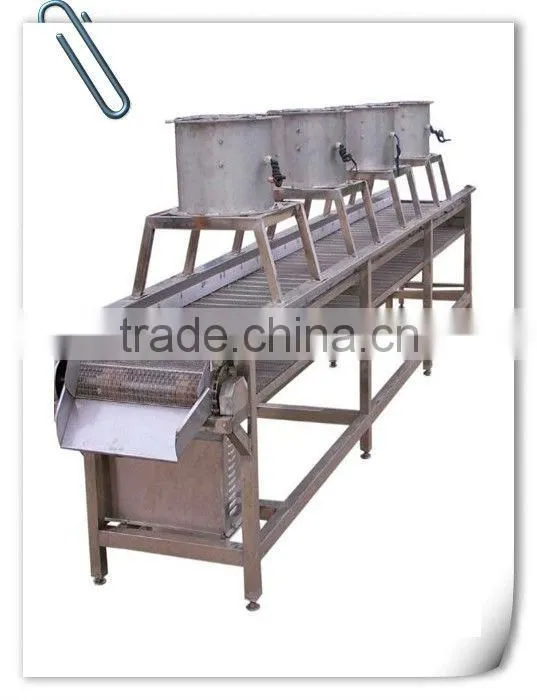

- sundries choosing machine

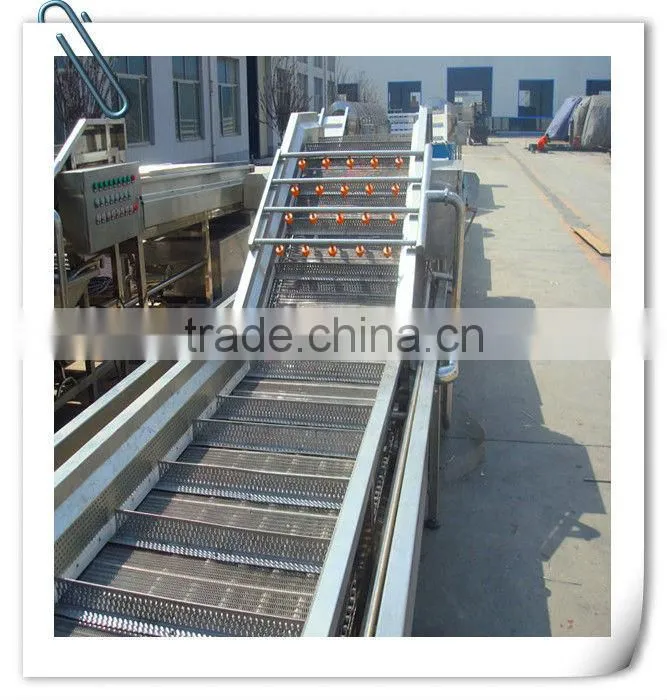

- bubble washing machine

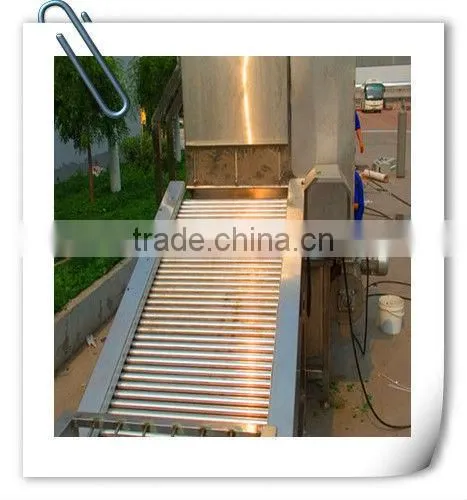

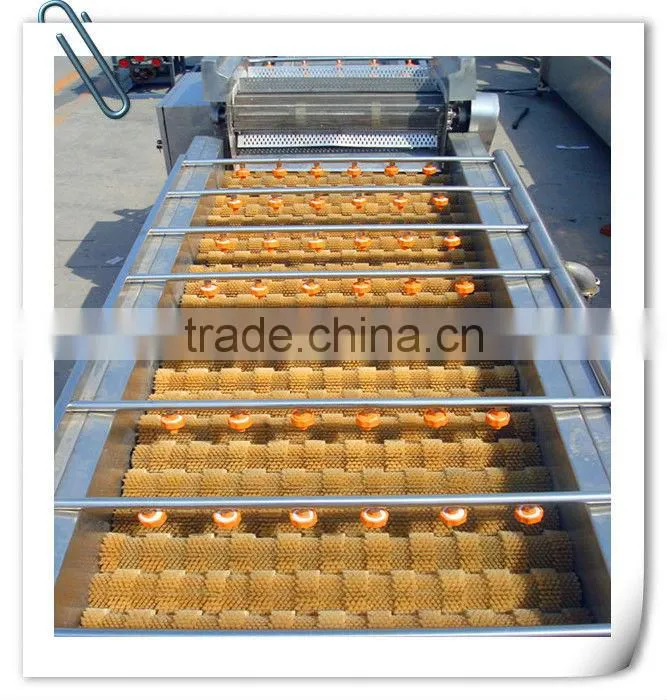

- roller washing machine

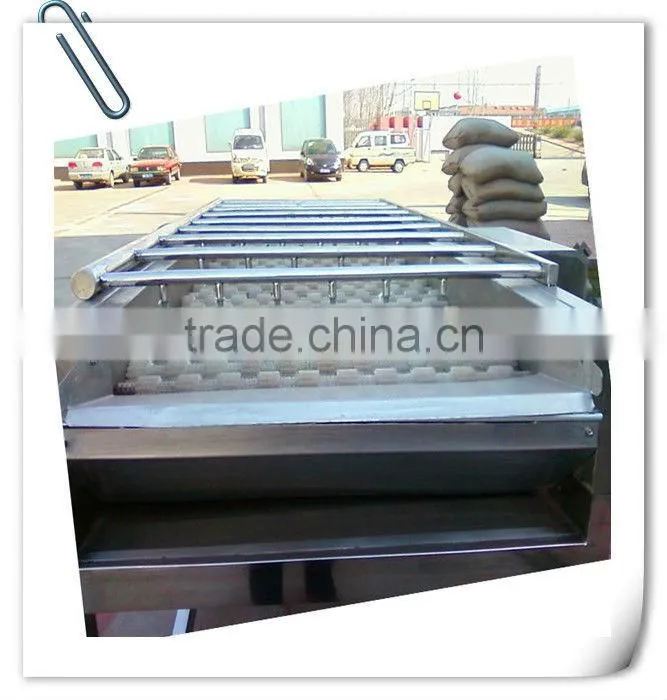

- high pressure spraying machine

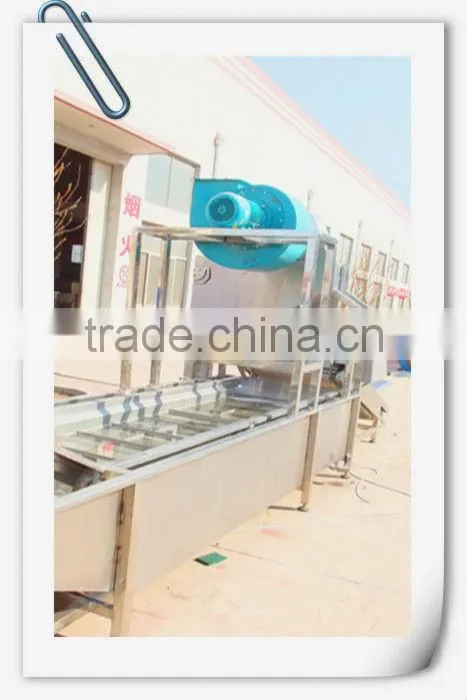

- drying machine(surface water)

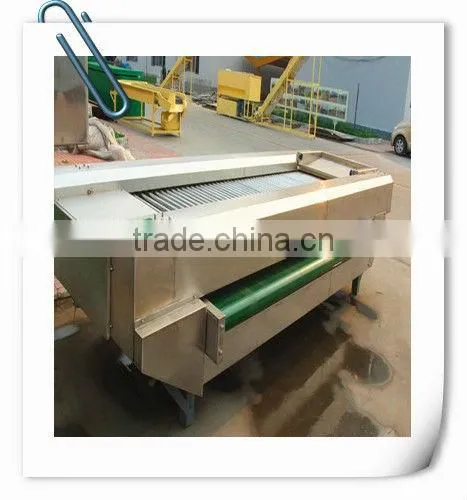

- grading machine
- company picture
