Air Shower
Automatic induction air shower material
1.Material body (panel ,inside and outside stand plate ,door frame )use stainless steel 304 with tape and coating.thickness 1.0mm .
inner channel floor board use stainless steel 304 with anti-skid board .
bottom case made of 50*50 stainless steel square tube thickness 1.5mm

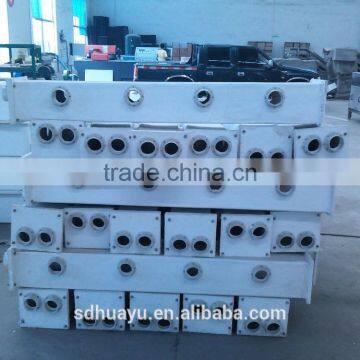

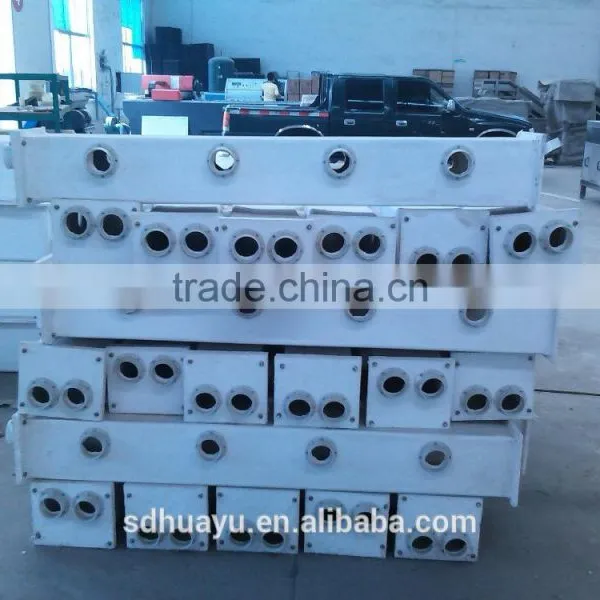

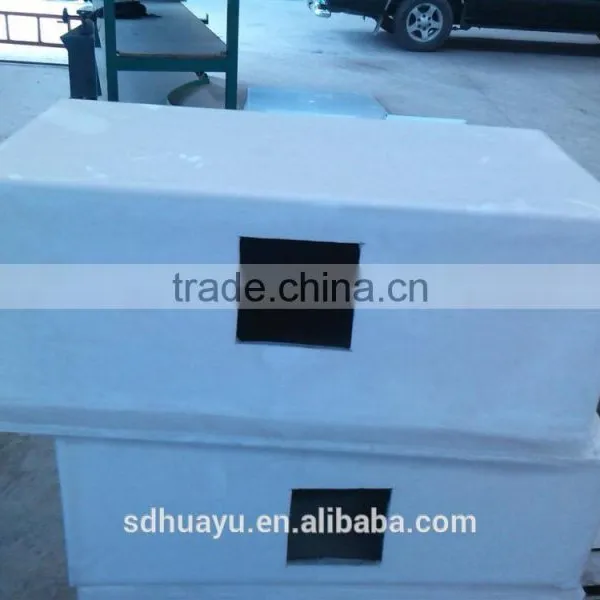

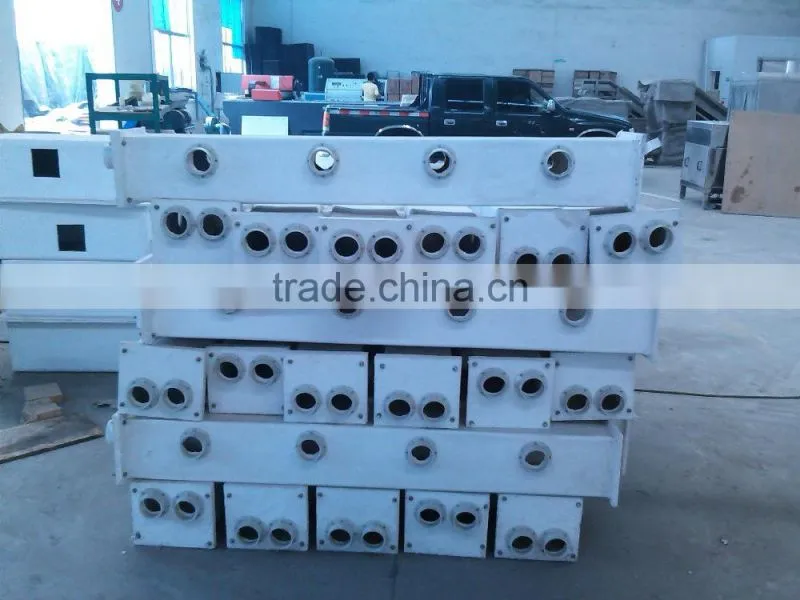

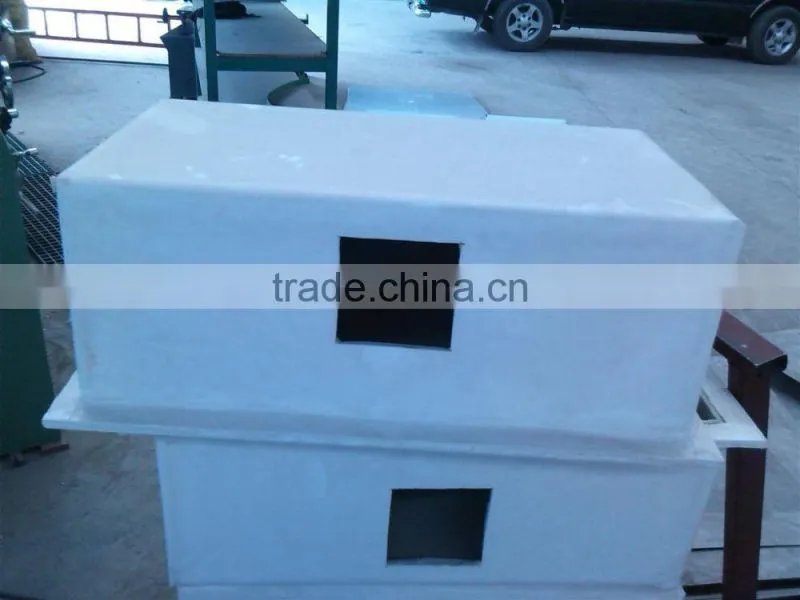

Inner bellow and air channel use glass fiber reinforced plastics which is Preventing moisture and corrosion-resistant
Inner space adapt bellow ,air channel and air pipe to make wind ,so the air shower is low noisy and velocity uniformity

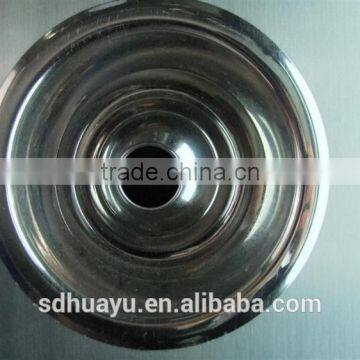

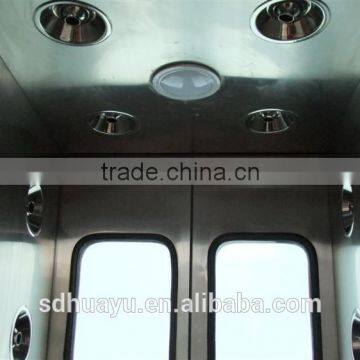

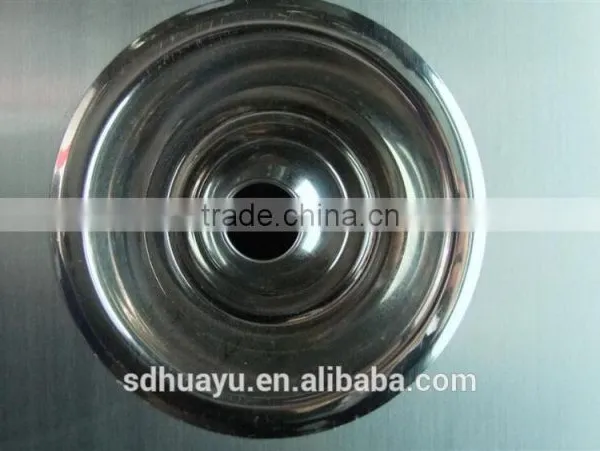

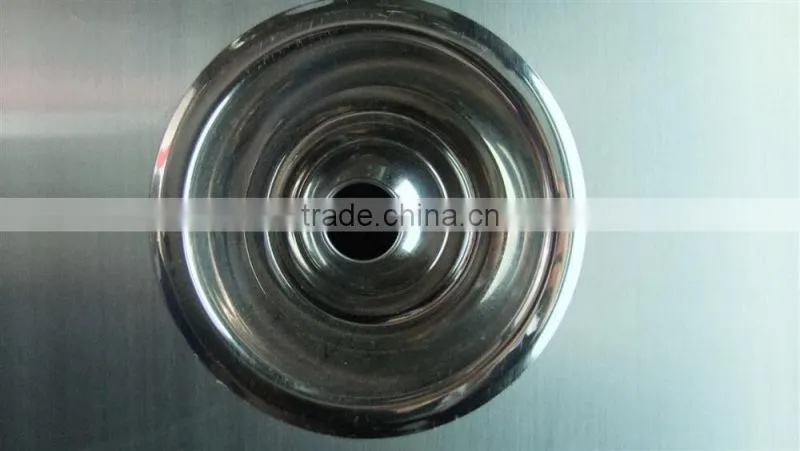

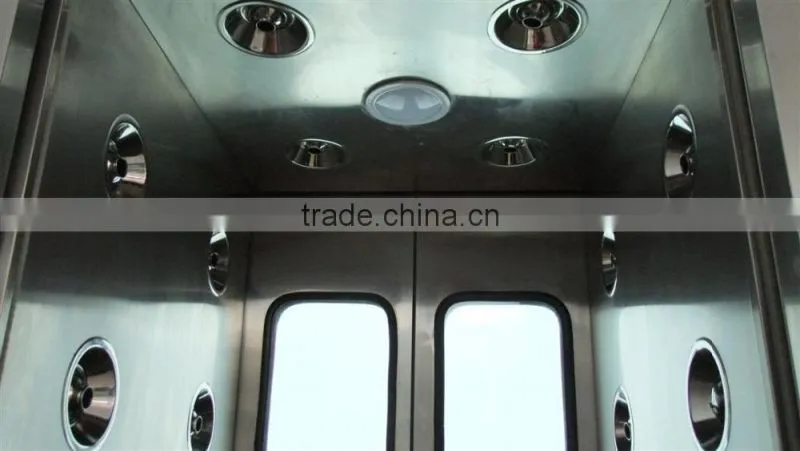

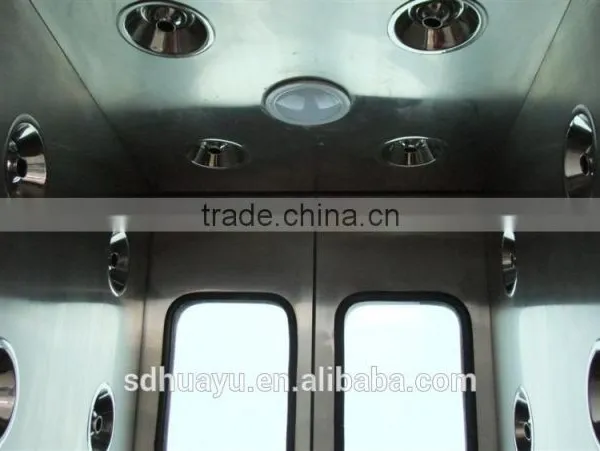

2.Nuzzles number :60pieces per set ,made of stainless steel .embedded installation on both sides and the top. Nozzle blow direction is adjustable
3.Air flow fan :22-28m/s
4.Air flow time :0 — 99s(electronically adjustable
5.Power 5.0KW

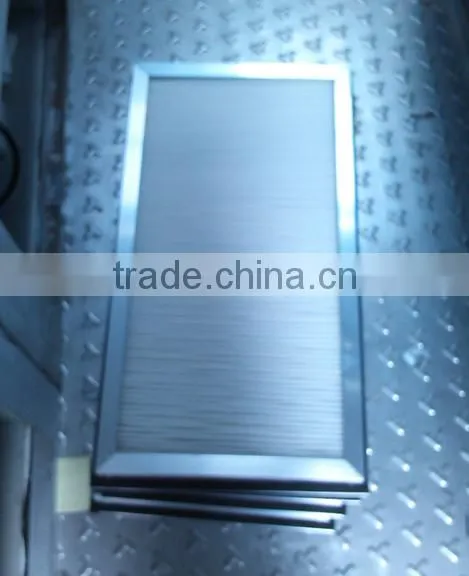

6.Filtering efficiency :early efficiency ,middle efficiency , high efficiency.dust size :0.3um dirt removing efficiency >99.99%
Automatic shower principle
Filter →centrifugal blower →static pressure bellows →air supply duct→air pipe →nozzles →air inner loop
7.Noisy :<65dB(measure at 1.5 meter outside air shower )

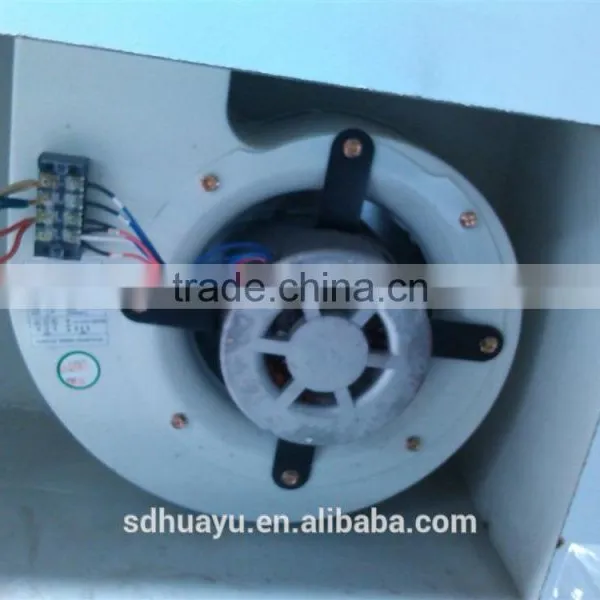

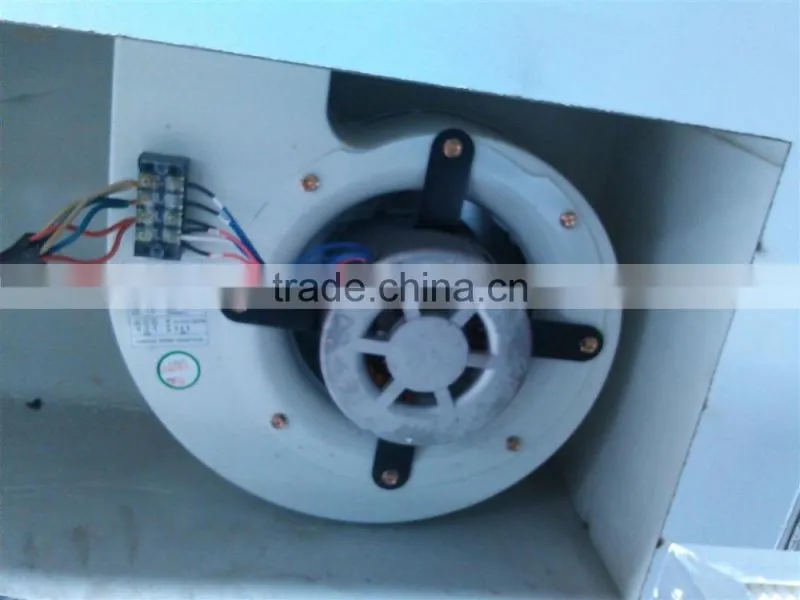

8.Fan :6sets per air shower
9. The pressure of per fan is above 1200pa.speed 2800r/min
10.Ventilation quantity≥2500m3/h
11.Fan Power :750w
12.Automatic door :adapt Japan imported infrared sensors
14.Door open Speed 25-46m/s(adjustable )
15.Door close speed 25-46m/s(adjustable )
16.Open time 0-9(adjustable )
17.Push force <50N
Work processes
non return
when the staff close the air shower the door will open automatically with the infrared sensor .the door will be closed after staff go into air shower .when blow drenched the light will open .the blow drenched time is about 6-8 second .then the door will open automatically .
Straight process
when meet rush hour the front and after door can open at the same time
COMPANY INTRODUCTION
HUAYU MACHINERY EQUIPMENT CO., LTD. has more than 10 years experience in manufacturing poultry slaughtering machine and food processing machine. Our products are both popular in China and abroad. And they are of stable features and competitive price.
We can manufacture slaughtering production line with different capacities from 200 birds/h to tens of thousands birds/h. And we also provide installation and staff training service. That is when your customer buy our products, we will help install and teach them how to use it.
As to the deli food processing machine, we have machine to process toast chicken, duck , goose, braised chicken, duck, goose, and fried chicken,duck , goose.
If any need or question, please feel free to contact us.
