China Manufacturer Alibaba Supply Lateral Move Farm Irrigation System
- 50 Set / Sets per Month
- DALIAN CHINA
- T/T
-
China Supply Lateral Move Automatic Farm Irrigation System
-
China Supply Alibaba Garden Irrigation with End Spray Sprinkler
-
China Supply Cost Effective and Maximum Performance Side Roll Irrigation
-
China Supply New Lateral Move System of Water Irrigation System
-
China Supply Effective and Maximum Performance Agricultural Irrigation Sprinkler
-
China Supply Lateral Move System of Field Irrigation Sprinklers
Product Details
| Condition: | New | Place of Origin: | Liaoning, China | Brand Name: | Rainfine |
| Model Number: | lateral move | Material: | Metal | Feature: | maximize irrigation field |
| Diameter: | 50000 cm | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard export package
Product Description
Lateral Move Farm Irrigation System
GLOBAL MANUFACTURER OF IRRIGATION EQUIPMENT SINCE 2002
Rainfine is an international irrigation company based in Dalian, China that specializes in center pivot and lateral move systems.
We are a leading manufacturer across the globe, supplying irrigation parts and equipment to major manufacturers in the United States, France, Russia, Australia, Sudan, Kazakhstan, Nigeria and Saudi Arabia.
Our irrigation manufacturing meets the following standards:
International: ISO15873 ISO12374 ISOTR15155
French: NFEN909
British: BSEN12325-2
American for galvanizing: A123
ISO9001-2008 QC standard
This is lateral move system or linear system. All the machines work in linear movement by motor driven tires to irrigate rectangle area. Unlike center pivot systems, where the area irrigated depends only on the length of the machine, lateral system area is determined by two factors: system length and travel distance.
This system is mainly used for grasses, grains, vegetables, cotton and sugar cane crops. The length can be from 1 span to 18 spans, normally more than 7 spans system is economical. Lateral move system is the only machine which can irrigate all land. In square land, all spans are parallel with the land, no blind angle. The irrigation ratio can increase to 99%.
Water source to fill the machine can be canal, concrete ditch, rivers and pond. It is not allowed to operate the machine without water.
| The specification of the Rainfine Center Pivot | |||
| Items | Specification | Items | Specification |
| Pivot length | 41.1-791.2m | Land covered | 0.53-196.7ha |
| Qty.of spans | 1-16 | Span length choice | 41.1/47.8/54.4/61.3m |
| Overhang length | 6.7/13.4/20.1/26.8m | Pivot clearance | 2.91-3.75m |
| Span dia. | 141/168/203mm | Pivot height | 4.62-5.46m |
| Span thickness | 3mm | Surface | Hot dip galvanization |
| Flow rate | 15-1080m3/hr | Water pressure at pivot base | 1-7.5Bar |
| Friction Loss | 0-2.5bar | Tire | Rubber: 320×1260 mm Plastic: 318×1170 mm |
| Max speed | 142m/hr | Sprinkler | Nelson/Senninger |
| Regulator | 10/15psi | Type of drops | Flex 5.5-ft drops |
| Gear box | 50:1 heavy duty | Gear motor | 33rpm(full loaded) at 380V.3/4HP 40:1 Ratio. Over-heating protection |
| Control panel | Standard | Required run power | 0.7-11.5kw |
| Power supply | 415V 50HZ | Irrigation Hours/Day | 0-24hr/day |
| Daily applicationrate | 0-50mm/day | Pressure gage | 0-60psi |
Ditch feed
- Benefits of Lining a Ditch
- Conserve water (e.g. reduce friction loss and seepage loss from earthen ditches)
- Minimizes irrigation-induced erosion and invasive weed growth
- Work well with a gravity system; No pumping is required
- Maintenance minimal compared to a dirt ditch
- Can work on any field, regardless of shape and be tailored to site-specific conditions
Hose feed
- Electric power provided by cable or genset
- PVC material, UV resistant
- Diameter from 4 to 12 inch
- Work pressure from 4 to 10 bar
Auto reverse
- Prevent crashes
- Stop machine from any tower
- Provide additional safety
- Package includes control box, sensing arm, cable, spring, traverse arm

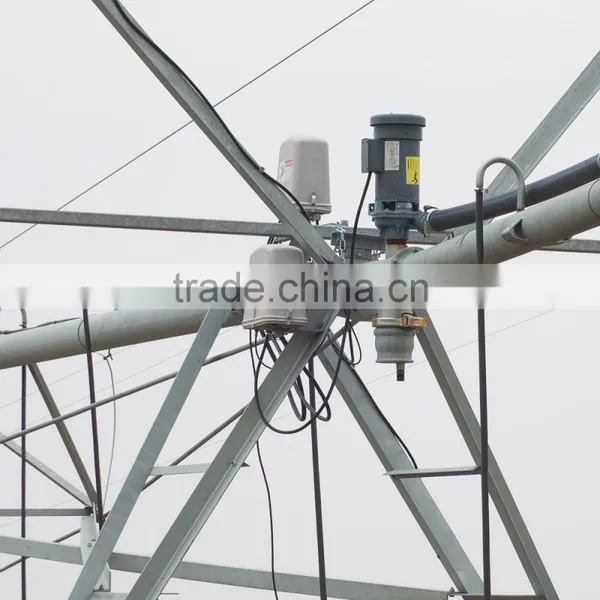

Construction
- Metallic zinc-coated Spans rubber-band united between itself
- Mounted on support of intermediate towers-each with two wheels
- <V>-type, axles drive unit from electric geared motor to Wheels gearboxes
- Electronic block of the system with equalization and checking
1. If you want pivot, please give us the following details"
- your country and name
- land area (in ha or m2 )
- crop and water application (mm/day or m3 /h or LPS)
- working degree (0- 360O )
- if you need any extras (options) for pivot such as Diesel generator, end gun with booster pump, corner control system for end gun, Fertilizer unit
2. Parts are not sold seperately, except for large amount.
-land surveying and planning
-Pipeline network calculation
-Pump station calculation and design
-Business proposals and budget plans
-Pumps, valves and irrigation machines supply
-Installation and commissioning
-1 year concerning electric equipment
-10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
-20 years concerning the galvanized equipment against corrosion
-3 years for tires and rims
Company Profile
Rainfine(Dalian) Irrigation Co., Ltd is a leading manufacturer in China for irrigation equipments. We started the manufacturing of center pivot irrigation machine since 2002. For more than 10 years experience in irrigation business,We have exported our products to Australia, Agentina, Chille, Brazil,Zambia, Ethiopia, Sudan, Saidi Arabic,Libye, Kazakhstan. We will start to sell our products to Russia, Ukrain, Mongolia,Germany, Iraq from this year.
The main products we produce are center pivot system (fixed and towable), lateral move system and hose reel irrigation machine.
The factory has qualified ISO9001:2008 certificate.
The services we provide for our customers are:
1. Water supply design system: pump station and pipeing design, pipe network and water hammer protection calculation, water flow and charge head calculation, diesel generator design.
2. Supply irrigation equipments as well as the related equipments for all projects: shipment, installation, training, commissioning.
3. Farming plan: water requirement chart for different crops.
If you have land and water resources, just leave all the troubles to us.We can work from A to Z and help you to make money from your land.
For more details of our company and the products, please refer to our website.
