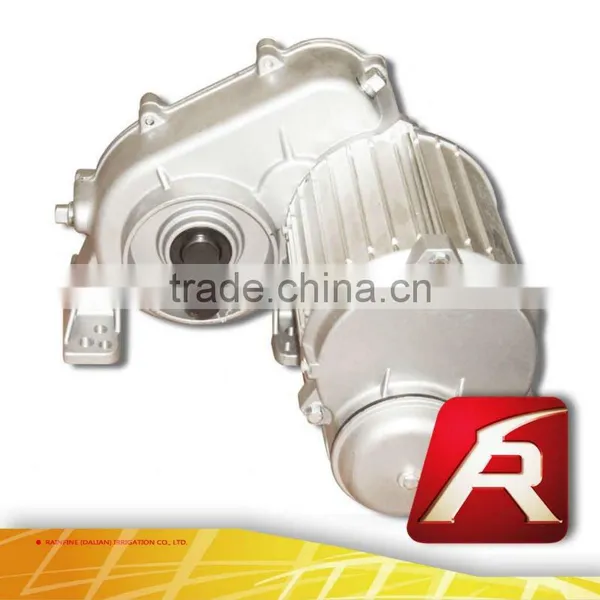

irrigation equipment part of gear motor
- 2000 Set / Sets per Month
- Dalian China
- T/T
Product Details
Type: | Other, irrigation | Use: | Other, Gear motor | Place of Origin: | Liaoning, China |
Brand Name: | Rainfine | Model Number: | 40:1 |
Packaging Details
export standard packing
Product Description
Specifications
irrigation equipment part of gear motor Durst Extreme Duty , 40:1Rainfine Heavy duty gearbox:
Special designed for Sudan market where the pivot can be used 300 days per year.
The gearbox we use:
a The worm consists of high strength forged steel with a Brinell hardness of 210 while the wrong gear is manufactured from ductile cast iron with a relatively wide variation of hardness. This is totally different from other manufactures who make it by grey pig iron.
b The worm and gear pressure angle have been designed at 14-1/2 degrees. This angle was selected based upon review of extensive engineering information and has been borne out by extensive testing and proven field result. The 4-1/2 degree pressure angle exceeds the necessary strength requirement while providing a greater efficiency than would be possible with large angle.
c The output shaft is a full 2-1/4” diameter shaft. Although other gearbox may use a large shaft, the actual strength is determined by the load applied and physical properties of the shaft material. The gearbox overhung load point is relatively small at 1-1/2” from the bearing to the wheel mounting flange. The shaft material is high-strength, forged steel.
d The worm end caps made from cast iron held by 4 bolts to reduce the possibility of working loose in the field – unlike system using a threaded nut design.
e Ratio: 50:1
High strength steel worm and output shaft
Each gearbox filled with extreme pressure/multi-purpose gear oil.
UV resistant dust seals
Totally enclosed internal air expansion chamber
Top oil fill provision
Worm wheel boxes
1.43 amps (full load) at 380v.
3/4 HP
1,000lb-in. torque (full load)
Three inside towers use slow speed motors with ratio:40:1
Moter | rpm (480v 60hz) | rpm(380v 50hz) | amp | hp | Ratio |
A | 43 | 33 | 1.43 | 0.75 | 40:1 |
B | 30 | 25 | 2.2 | 1.0 | 40:1 |
C | 59 | 49 | 3.0 | 1.0 | 29:1 |
D | 86 | 66 | 1.43 | 1.5 | 20:01 |
RAINFINE weather techniques,soil conditions can be collected and analyzed to realize concise irrigation up to mini meters,and make every drop of water serve for harvest. The customized irrigation solution can raise the water efficiency of irrigation to 0.7-0.9.
We provide the best service for our customers:
Water supply design(from bore well or river)
Pump station
Water hammer protection
Water pipe network
Submersible sewage pump
Generator set
Farm land plan
Irrigation system
Equipment
Shipment
Installation & commissioning
Training
RAINFINE has set up a worldwide network of dealers who are highly
Rainfine (Dalian) Irrigation Co., Ltd. is located in the center of foreign trade and harbor system of Liaoning Province—Dalian. The company is headquartered in the city downtown, adjoining the airport and railway. The factory facility is situated in Jinfadi Industrial Park of Dalian, where the industrial facilities are complete, near the Free Trade Zone and harbor to save freight with convenient transport.
Rainfine (Dalian) Irrigation Co., Ltd. is a high-tech enterprise that specializes in research, development, production, service and marketing of RAINFINE water-saving irrigation equipments. The company produces a series of RAIFINE agricultural irrigation systems such as fixed center pivots, towable center pivots, lateral move (linear) systems, hose reel irrigation machines and chemigators on a massive scale. Both technology development and production capacity comply with American and European standards. RAINFINE irrigation systems are water-saving irrigation equipments indispensable to irrigated areas and can be used in any irrigable areas with water resources. They can effectively increase greening coverage of the land and application of water resources. The irrigators can help increase harvest and save water resources for the country, implemented under precise irrigation planning.
Company Profile
Rainfine(Dalian) Irrigation Co., Ltd is a leading manufacturer in China for irrigation equipments. We started the manufacturing of center pivot irrigation machine since 2002. For more than 10 years experience in irrigation business,We have exported our products to Australia, Agentina, Chille, Brazil,Zambia, Ethiopia, Sudan, Saidi Arabic,Libye, Kazakhstan. We will start to sell our products to Russia, Ukrain, Mongolia,Germany, Iraq from this year.
The main products we produce are center pivot system (fixed and towable), lateral move system and hose reel irrigation machine.
The factory has qualified ISO9001:2008 certificate.
The services we provide for our customers are:
1. Water supply design system: pump station and pipeing design, pipe network and water hammer protection calculation, water flow and charge head calculation, diesel generator design.
2. Supply irrigation equipments as well as the related equipments for all projects: shipment, installation, training, commissioning.
3. Farming plan: water requirement chart for different crops.
If you have land and water resources, just leave all the troubles to us.We can work from A to Z and help you to make money from your land.
For more details of our company and the products, please refer to our website.
