Specifications
airport Fence1.wire Dia:2-5.0mm
2.Mesh:100*50, 120*50
3.Coated:Galvanized ,PVC
4.ISO9001:2008
barb wire fence
We are professional manufacturer for different styles of metal fence with 16years experience.
We have design team and can independently research new products, customization is acceptable as well.

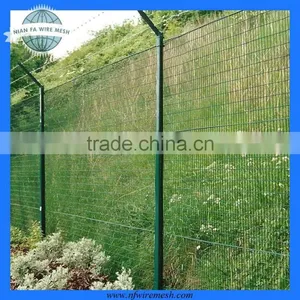

barb wire fence is made with low carbon steel wire welded panel, Y shaped square post, barbed wire or razor wire and other accessories.it is mainly used for barrier and security around the airport and anti-climbing projects.
1. barb wire fence Panel
Panel |
Mesh |
Wire Thickness |
Surface Treatment |
Panel Width |
Folds NOS. |
Panel |
Fence Height |
mesh Panel |
50x100mm |
4.00mm 6.00mm |
Galvanized and Hot dipped galvanized |
2.50m |
4 |
2000mm |
2700mm |
5 |
2300mm |
3200mm |
|||||
6 |
2600mm |
3700mm |
|||||
2 |
530mm |
2700mm |
|||||
V panel |
630mm |
3200mm |
|||||
730mm |
3700mm |
2. barb wire fence
Profile |
Wall Thickness |
Surface Treatment |
Length |
Base Plate |
Rainhat |
60x60mm |
2.0mm 3.0mm |
Galvanized and Or hot dipped galvanized |
2700mm I |
Available |
Plastic or Metal |
3100mm I | |||||
3600mm I |
3. barb wire fence post:
This kind of post will be put at 25m or 30m intervals .
Profile |
Wall Thickness |
Surface Treatment |
Length |
Base Plate |
Rainhat |
60x60mm |
2.0mm |
Galvanized and |
1900mm / |
Available |
Plastic or Metal |
2200mm / | |||||
2500mm / |
4. barb wire fence Colors
*Common RAL colors are available. RAL6005 Green is the common color.
*After double layer high quality unti-corrupt, the longlife will be 10 years long.
5. Airport fence Fastenings:

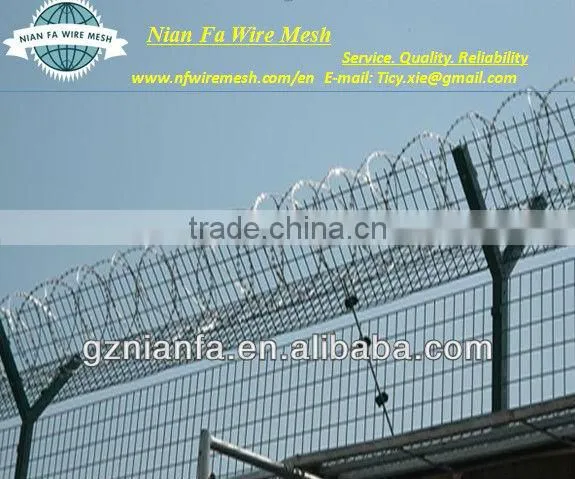

The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps. All nuts are self-locking. This also can be designed as the special clients requests. Usually, there is the Razor wire system on the top of the fence line.

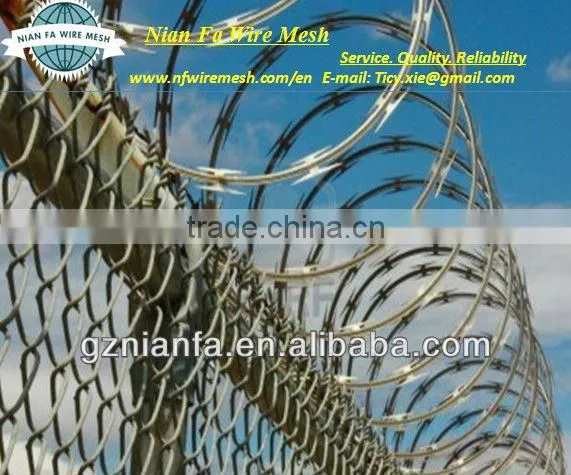

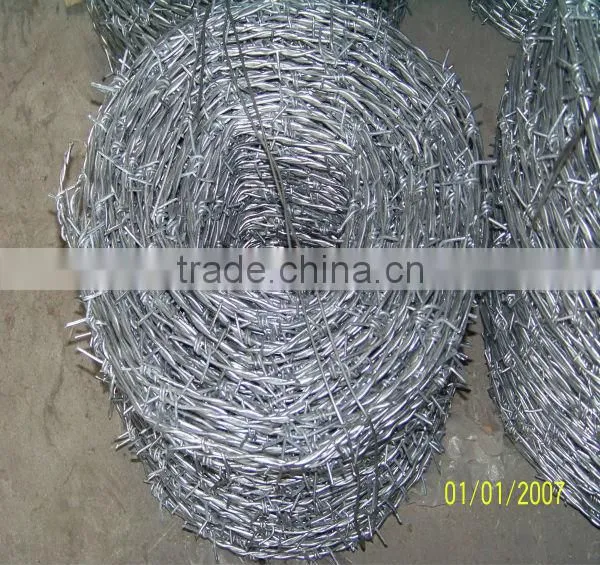

Barbed wire:
Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.

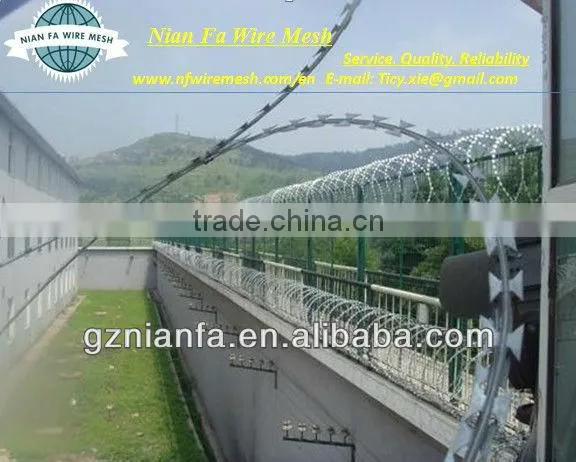

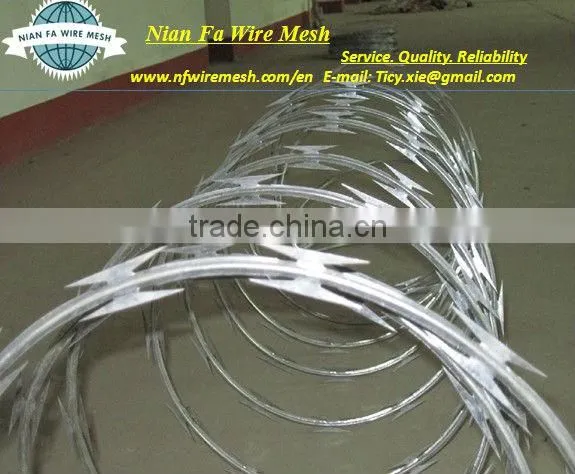

The fence top add the hot-dipped galvanized BTO razor barbed wire.That will be enhanced the safety characteristic and became beautiful.
airport fence Loading
