Product Details

Brand Name	SinZoneCare		Place of Origin	China
Model Number	SinZone-1R

Product Description

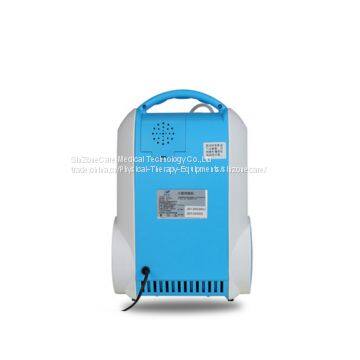

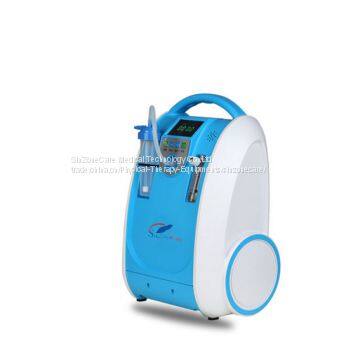

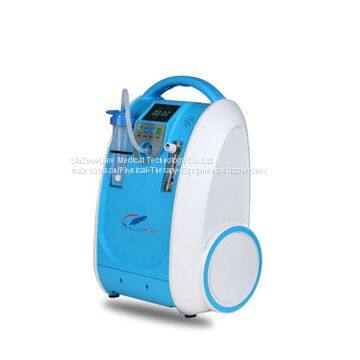

SinZone-1R Portable Oxygen Concentrator

SinZone-1R is a portable, rechareable and battery operated oxygen concentrator.
The unit has light weight(5.4kg), low noise, and 12V vehicle applications.

Technical specifications
Product specification	SinZone-1R portable oxygen concentrator
Continuous flow settings	0 - 5 LPM, LPM= Liter Per Minute
Oxygen concentrator	93% +/- 3% at 1 LPM
	60% +/- 3% at 3 LPM
	40% +/- 3% at 5 LPM
Outlet pressure	8.5 PSI
Sound level	≤ 43 dB (nominal) at any setting

Size	10.2 in x 7.7 in x 15.2 in(26 cm x 19.5 cm x 38.7 cm)
Weight	12 lbs (5.4 kg) without battery
User interface	Push buttons, back-lit liquid crystal display (LCD)
Filtration	air inlet filter, bacteria filter
Operating conditions
Operational temperature	41° to 104°F (5° to 40°C)
Relative humidity	15 to 95%
Altitude	Up to 12,000 ft (3657 m)
Storage conditions
Temperature	-4° to 140°F (-20° to 60°C) unit only
Relative humidity	Up to 95%, non condensing
AC power
Input	100 to 240 VAC, 50/60 Hz, 1.8 A max
Output	14.8 VDC, 8 A max
Power consumption	90W
DC power
Input	Input 11. to 16.8 VDC 20 A max
Output	14.8 VDC, 8 A max
Audible alarm
Sound level	55 dB (nominal) at 39 in (1 m)
Alarm type	No power , No flow, Low battery, Depleted battery,
	Wrong battery, System technical fault
Battery
Chemistry	Lithium Ion 14.8 VDC (nominal)
Dimensions	6.1 in x 3.4 in x 2 in(15.5 cm x 8.5 cm x 5 cm)
Weight	1.5 lbs (0.7 kg)
Charge time	approximately 4 to 5 hours
Battery duration	59-61 minutes at 0-5 LPM continuous flow setting

Accessories
Lithium Ion battery 1 pc
Battery charger 1 pc
Car Inverter 1 pc
AC power supply and cord 1 pc
Head style oxygen pipe 1 pc
Nasal cannula 1 pc
Humidifier 1 pc
Humidifier connecting tube 1 pc
Air inlet Filter 1 pc
User manual 1 pc
Carrying bag 1 pc
Trolley(optional) 1 pc
