Port:Qingdao
Packaging Details:The edible oil refinery will be Packaged in Accordance with International Standards, usually Wooden Bo, or can be adjusted According to Customer Requirements.
Delivery Detail:Shipped in 50 days after payment
5TPH Palm oil press, etraction and refining plant with good quality
1. Main Business Field:
1.10-500T/H oil material first cleaning,drying and storage section turn-key project.
2.100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling, bean skin crushing; the soybean etrusion, high oil contained pre-press cake etrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
3.Leaching workshop turnkey project (Towline etractor, Rotocel etractor, loop type etractor, DTDC separated machine, the full negative pressure evaporation, paraffin wa recovery, leaching workshop degum, phospholipid concentrate).
4.30-1000T/D oil continuous grade two or one physical (chemical) refining production line.
5.20-600T/D sunflower oil, rice bran oil, corn germ oil making and dewaing turn-key project
6.10-200T/D Fatty acid esterification production cooking oil production line.
7.30-300T/D palm oil pressing line.
8.100-300T/D Coconut, peanut, sesame oil making project.
2. The processing technology parameter:
Capacity : |
5TPH |
Oil etraction rates : |
21~23% |
Oil content in FFB : |
24% |
Kernel content in FFB: |
6% |
Shell content in FFB : |
6~7% |
Fiber content in FFB : |
12~15% |
Empty bunch content in FFB: |
23% |
Press cake proportion in FFB: |
24 % |
Oil content in empty bunch: |
5 % |
Moisture in empty bunch : |
63 % |
Solid phase in empty bunch: |
32% |
Oil content in press cake: |
6 % |
Water content in press cake : |
40 % |
Solid phase in press cake : |
54 % |
Oil content in nut: |
0.08% |
Oil content in wet meter heavy phase |
1% |
Oil content on meter solid: |
3.5% |
Oil content in final effluent: |
0.6% |
Fruit in empty bunch: |
0.05% |
Water in palm kernel |
7% |
Kernel in empty bunches: |
0.05% |
Kernel content in cyclone fiber: |
0.15% |
Kernel content in LTDS: |
0.15% |
Kernel content in dry shell: |
2% |
Kernel content in wet shell: |
2.5% |

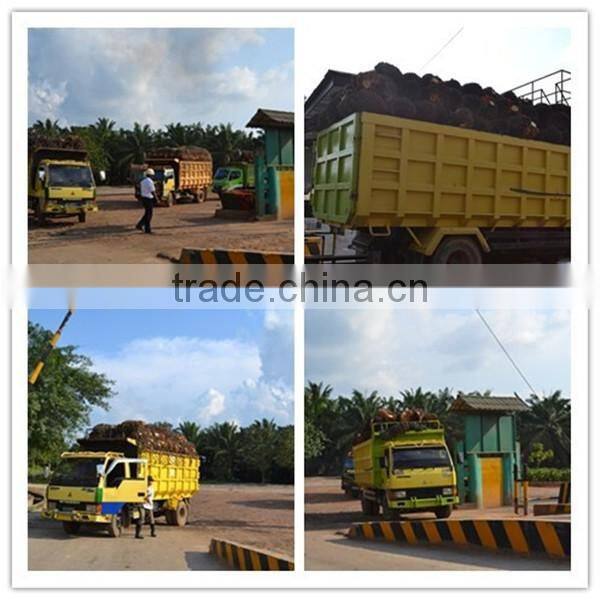

3.Reception station of palm oil plant :

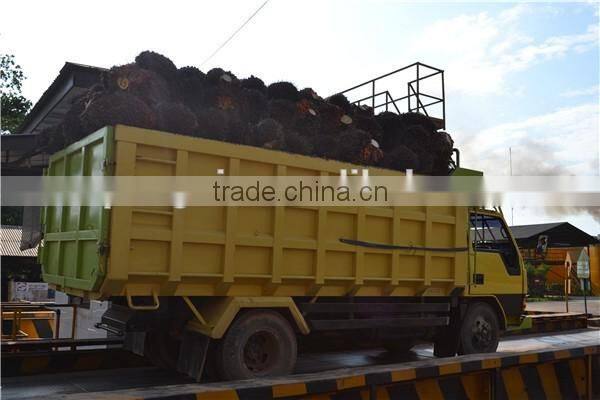

The FFB bunch be transported to plant by truck, after be weighted by weighting bridge(30T), the FFB will be loaded down to FFB Loading Ramp.
The iron door of unloading ramp is controlled by hydraulic device, Get the power from Hydraulic pump station. Start on the hydraulic device, iron door be lifted. FFB will fall down to the Palm Fruit screw conveyor, be transported to pre-treatment plant, to Vertical sterilizer.

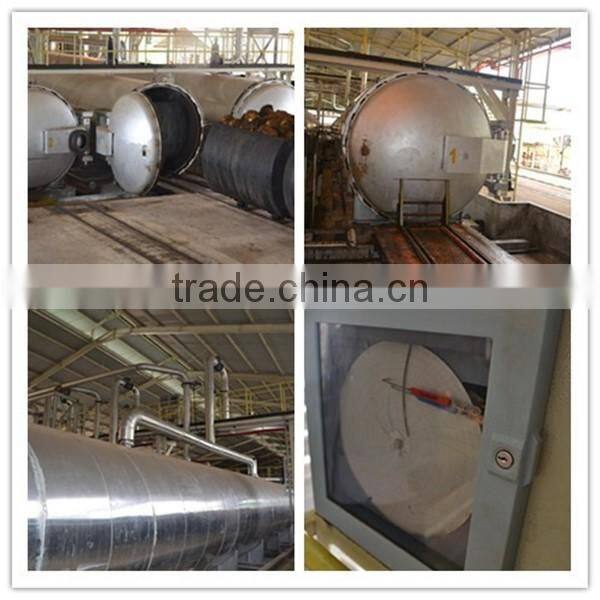

4. Sterilizing process of palm oil plant :
2.1 By Scraper Conveyor, FFB be transported to the top of sterilizing tank. Falling into sterilizing tank from feed inlet.
2.2 Sterilizing tank: Adopt vertical type sterilizer, Welded up by Q235B material (Chemical composition:C0.12~0.2%,Si0.12~0.3%,Mm0.3~0.7%,P<0.045%,S<0.045%,Cr<0.3%,Ni<0.3%,Cu<0.3%).
2.3 After FFB be transported into sterilizing tank (202), close the door of sterilizing tank, and open the vent valve behind the tank, saturating steam, which pressure is 3bar and temperature is around 130. After all cool air been discharged out, close vent valve, proceed to sterilizing section. Sterilizing time is 90~120minutes.
2.4 The sterilizing time also should be depend on the kind and quality of FFB, if the pressure is too high or the time is too long, palm fruit will be rot, also Resulting in the loss of oil, high temperature can change palm color.
2.5 Finish sterilizing process, close the steam valve, open the valve lead to Blow-off/down Silencer. Open the sterilizing tank door(FFB outlet) after discharges out all steam and water.
2.6 Open the sterilizing tank door, sterilized FFB will fall on the FFB Scraper conveyor. Be transported to net station.

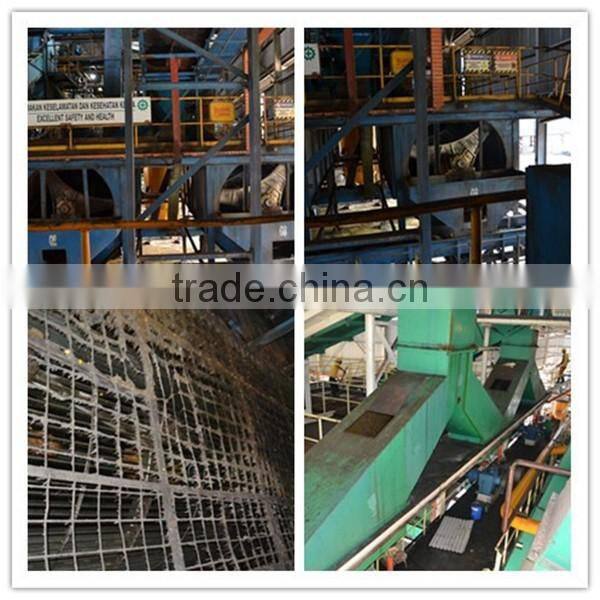

5. Threshing station of palm oil plant :
The sterilized FFB will be transport to thresher platform by scraper conveyor.
After sterilizing the fresh palm fruit bunch will be soft, and the bunch and fruit will be separate easily.
Sterilized FFB be twisted and knocked in thresher. Palm fruit will be separated from empty bunch totally, fall on Fruit Scraper conveyor though fence, the empty bunch will be transported to Bunch Temporary tank by Bunch Scraper conveyor.

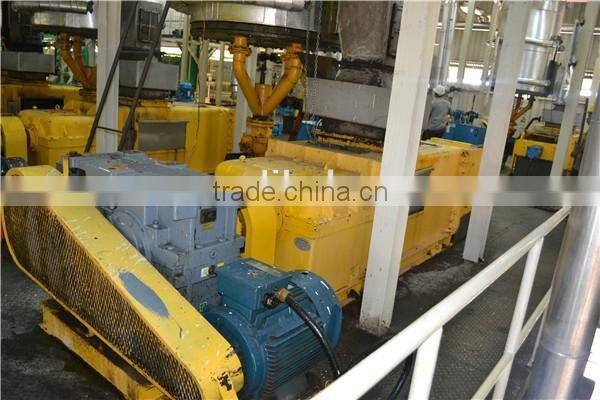

6. Press station of palm oil plant :
Palm fruit press
4.1.1 The palm fruit is transported to Crush tank by fruit elevator.
4.1.2 The fruit in crush tank will be heated to 90~95(by indirect steam), crush time is 10~20 minutes.
4.1.3 The pounded fruit flow into Palm fruit oil presser to press. Oil press cone can control cylinder, working pressure is 50~70bar, revolving speed of presser main shaft is 12.5 r/min. Meanwhile the miture of crude palm oil and water outflow from barrel holes. Crude oil will be flow in Temporary Storage oil tank through crude oil groove. Then oil will be pumped to Screening filter by oil pump. After filtering take out the oil foam,deposit impurities. Palm oil flow into Passivating oil tank. The fiber cake and nucleus are ehausted from clearance of cone head drop on Breaking cake auger.
4.1.4 Palm fruit oil presser, the material of main shaft is 40Cr steel, (Chemical component: C0.37~0.44%,Si0.17~0.37%,Mn0.50~0.80%,Cr0.80~1.10%) have been thermal refining, the material of worm and cone head is 45# Cast-Steel, and the surface have quenching treatment.
7. Palm kernel press of palm oil plant :
4.2.1 From kernel storage tank, kernel be transported to crusher, to be granulate. then conveyed to flaking mill by elevator, granular kernel will be pressed into unified shape. after cooking, palm kernel will be pressed by screw press machine.
4.2.2 Screw press machine operating principle:
1>When oil press is on work, material enters the etruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2>Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3>On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4>Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5>Meanwhile, particles adjacent the screw will rotate along with screws rotating, causing every particle inside the chamber to possess different speed.
6>Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oils elasticity, resulting in high oil.

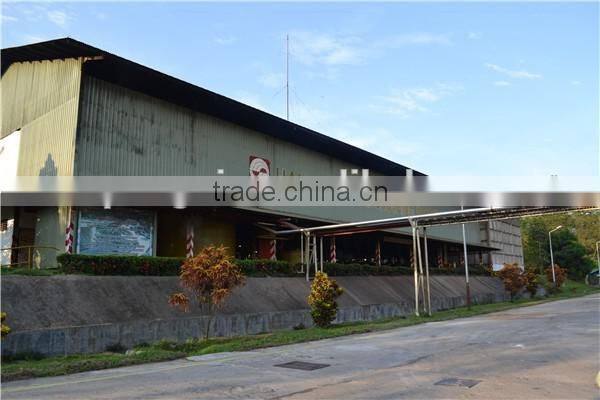

8. Factory introduction of palm oil plant :
Zhengzhou Qi'e Grain&Oil Machinery Co.,Ltd is a large-sized joint-equity enterprise which specialize in producing edible oil mechanical equipment and it is also a group enterprise integrating scientific research, manufacturing, sales as one. Research Institute of Machine Design Company and Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein etraction, phospholipid etraction, etc. R & D and application of new technologies.
9. Transport of palm oil plant :
10. Certification of palm oil plant :
11. Engineering department of palm oil plant :

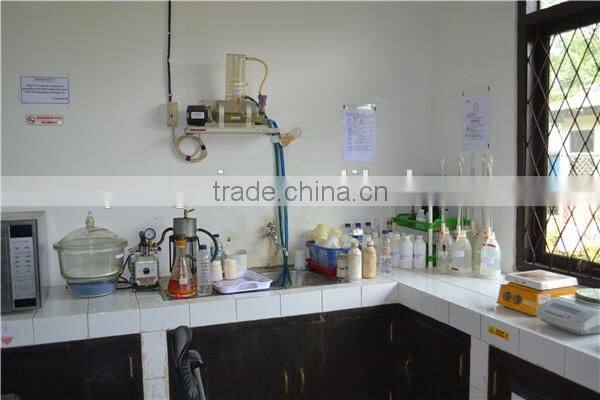

12. Lab for palm oil plant :
Attn: Tom
Website:
Phone: +86-15515901135
Skype: Luyachao819
Whatsapp/viber/tango: +8615515901135
If you want to learn more or purchase equipments, please contact me.
