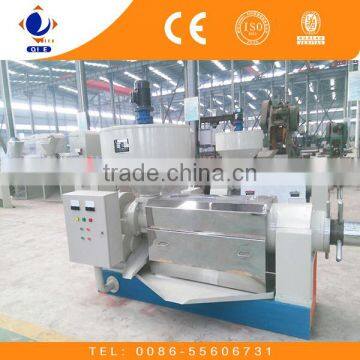

AS278 oil extraction soybean oil machine for oil extraction small oil extraction equipment
Notes: We are manufacturer and have own plant, if you need any grain oil processing machine, please send the inquriy to me. You will get good quality machine and best price.
1. Description of small oil extraction equipment
small oil extraction equipment is a new research improvement product.It can use to press rapeseed,peanuts,soybean,sesame,sunflowerseed and other plant oil materials.This kind of machine adopts micro-electrical control,filter system,muti-stage press and can hot press.The product oil of small oil extraction equipment is the clean oil after filtering,it can directly to use.The small oil extraction equipment is the most ideal equipment for individual processing.
2. Application range of small oil extraction equipment
This small oil extraction equipment can also be used at any time throughout the year for peanut, beans,
soybean, cotton seed, sunflower seed, coconut, jatropha seed, rape seed, prickly ash seed, chilli seed, corn germ, etc many kinds of oil plants.
| Oil material | Oil press rate (%) | Thickness of the material slag |
Residual oil ratio (%) |
| sesame | 42-55 | 1.0-1.5 | ≤7 |
| peanut | 40-50 | 0.8-2 | ≤7 |
| rapeseed | 28-43 | 1.0-1.5 | ≤7 |
| Sunflower seeds | 30-40 | 1.2-1.5 | ≤7 |
| Soy bean | 10-16 | 0.8-1.5 | ≤7 |
3. Structure of our small oil extraction equipment
Our small oil extraction equipment have two types-- Tape A and Tape B. All of them have the drive mechanism ,frame, electric,adjustable cake institutions,negative pressure filtration system , please check the following picture:

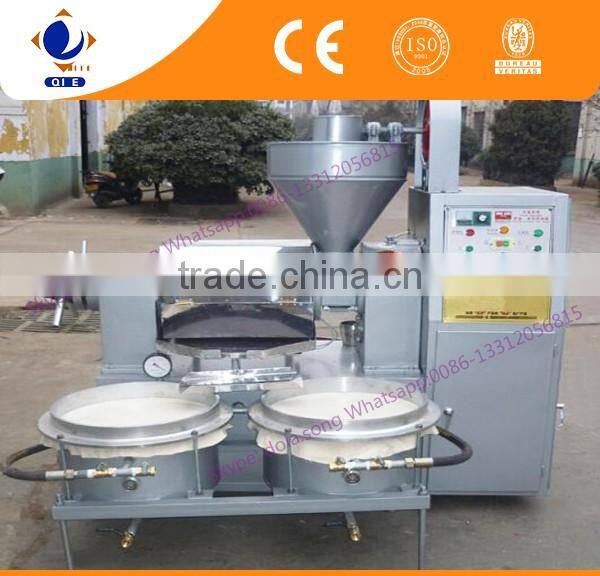

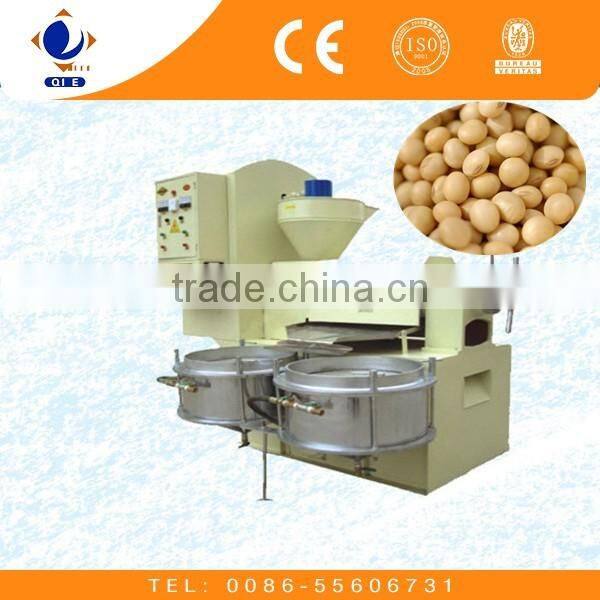

Automatic soybean oil mill Tape A and Tape B:
4. Technical parameters of our small oil extraction equipment
Automatic small oil extraction equipment
| Model | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 |
|
Speed of press screw |
30-45r/min | 30-40r/min | 30-40r/min | 28-40r/min | 28-40r/min |
|
Boundary demension (mm) |
1700×1250×1650 | 1950×1300×1900 | 2050×1350×2000 | 2200×1600×2150 | 2500×1600×2500 |
| Handing capacity | 80-150kg/h | 150-250kg/h | 200-300kg/h | 250-400kg/h | 400-600kg/h |
| Main engine | Y160L-6-5.5kw | Y160M-6-7.5kw | Y160L-6-511kw | Y180L-6-15kw | Y200L-6-18.5kw |
| Vacuum pump | Y90S-4-0.55kw | Y90S-4-1.1kw | Y100L1-4-1.5kw | Y100L1-4-2.2kw | Y100L1-4-2.2kw |
| Heater | 2KW | 3KW | 3.3KW | 3.8KW | 4KW |
5. How to operate our small oil extraction equipment
1. Prepare the seeds;
2. Adjust the automatic small oil extraction equipment , such as electricity, heating (optional);
3. Start the automatic small oil extraction equipment , putting seeds into the feeder;
4. Seed into the screw bolt , begin to press
5. The crude oil comes out of the squeezing bolt, then flow into the board ,
6. Go into the vacuum filter, using it for filtration
7. After filtration, the oil comes out from the bottom of pipe

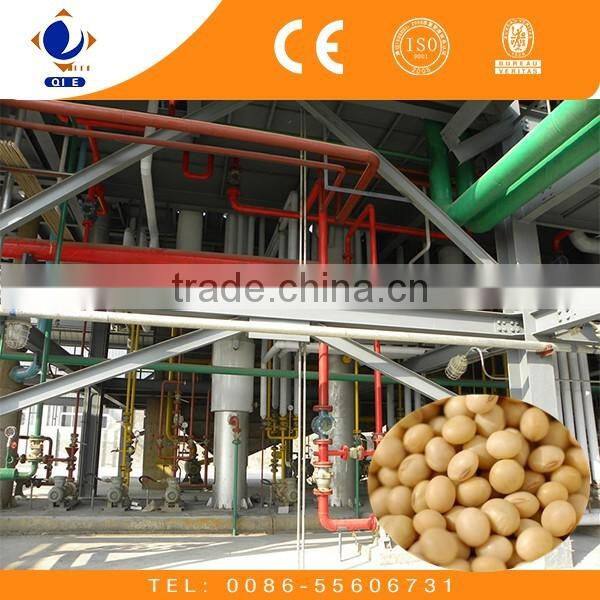

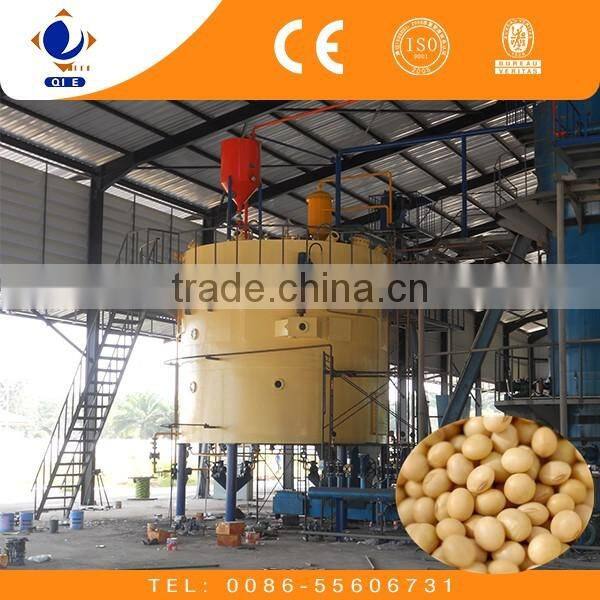

6. Our automatic small oil extraction equipment and oil product line
Except small oil extraction equipment ,our factory can supply a whole oil product line to you , such as cleaning machine flaking roll,cooking machine,hoiser,refining machine and bottling line and so on. You just need prepare the material ,we will do well all other things for you.
7. The advantages of small oil extraction equipment
1. Energy Saving: The electric power can be reduced by 40% under the same output. For example, the machine can save 6 kilowatt at an average of one hour.
2. Labor Saving: 60% labor can be saved under the same output. One or two person can organize the production.
3. Widely Usage: The small oil extraction equipment is multi-function. It can process more than 20 kinds of oil crops, such as, peanut, linseed, sesame, rapeseeds, sunflower, cottonseeds, soybean, etc.
4. Oil Pure: Vaccum filter can filter the residue and ensure the oil quality. The oil can meet the standard of health quarantine.
8. After sales
1. After we received buyer’s normal notification, within 24 hours, our factory supply maintenance solution.
2. Guide buyer how to operate, maintenance’s technology and skill train.
3. Supply new technology, new process, communicate information and consultation service.
If you have any question, pls feel free to contact with us at any time
9. Many customers bought our small oil extraction equipment
10. About our factory
Zhengzhou Qi'e Grain & Oil Machinery Co.,Ltd. is a large-sized joint-equity enterprise which specialize in producing edible small oil extraction equipment and it is also a group enterprise integrating scientific research,manufacturing,sales as one. Our business involve in small oil extraction equipment , automatic oil press machine, small sized oil pressing series,screw oil expeller series,grain and oil engineering designing,equipment manufacturing and installing,project contracing,technical service,new product developemt,the intensive and deep processing for oil by products and so on.
11. Our certifications
12. Shipping and packing of small oil extraction equipment
If you have interest in our machine, please kindly send us your inquiry details in the Below , Click "Send" Now!
