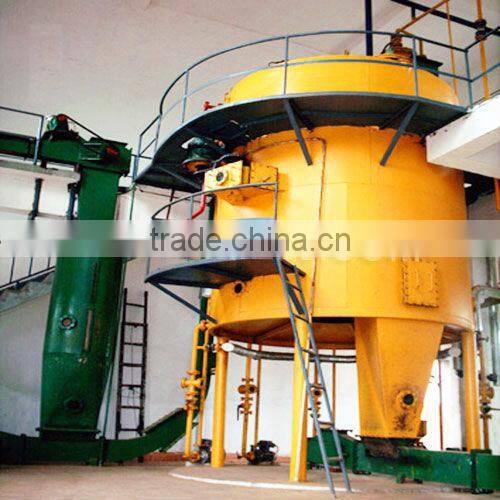

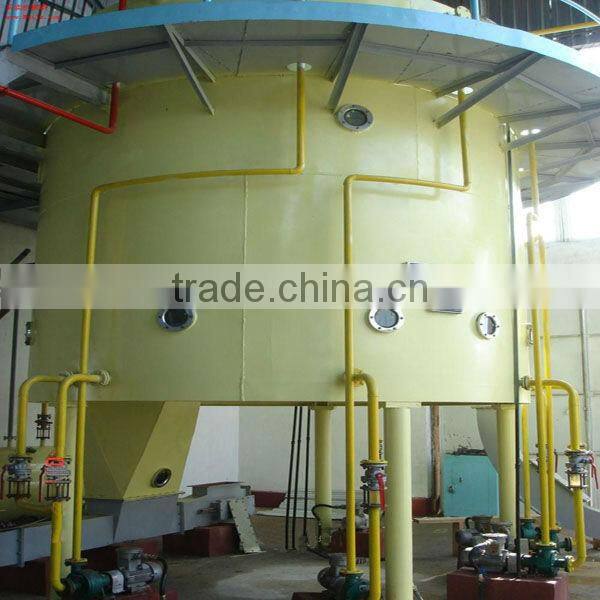

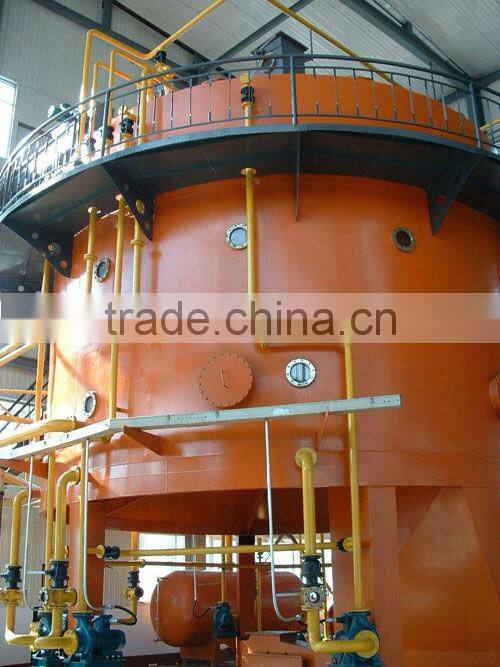

Low Residual Plants Soybean Oil Extraction Equipment
Selling Low Residual Plants Soybean Oil Extraction Equipment
Low Pesidual plants Soybean Oil Extraction Equipment Introduction:
1. Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella
from flowing back to the blanking case, so as to ensure good extraction effect;
2. The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, s
mooth operation, no noise and quite low maintenance cost;
3. The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and
maintain a certain material level, which is beneficial to the micro negative pressure inside the etractor and reduce the
solvent leakage.
4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in
meal, improve the miscella concentration and save energy by reducing the evaporation capacity.
5. The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella,
improve the quality of crude oil and reduce the evaporation system scaling.
6. Specially suitable for the extraction of various pre-pressed meals.
Main parts:
(1) Solvent pumps:continuously spray solvent to the rotary-type extractor
(2).Roary extractor:Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in
solvent(form miscella). After processing, you can get wet meal and micella (mied oil).
(3). DTDC:Used to separate the solvent from the wet meal.
(4). Miscella nous tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10%
saline water to it.
The phospholipid and impurities in the miscella will react with the saline water, at last the reactant precipitate,
reaching the goal of purifying.
(5). Miscella tank 2nd: the purified miscella will be pumped into it.
(6). Miscella stripping:it will remove the remaining solvent in miscella. And the solvent will be discharged to
condenser for recycling.
(7). condensers:used to cooling the solvent gas separated from the wet meal and miscella for recycling.
Advantages
(1) High oil yield , obvious economic benefit .
(2) Residual oil rate in the dry meal .
(3) Improving the quality of the meal .
(4) Low processing cost , high labor productivity.
Attn: Tom
Website:
Phone: +86-15515901135
Skype: Luyachao819
Whatsapp/viber/tango: +8615515901135
If you want to learn more or purchase equipments, please contact me.
