Vegetable Seed Oil Extraction Machine/solvent Extraction Plant

Vegetable seed oil extraction machine/solvent extraction plant

Vegetable seed oil etraction machine/solvent extraction plant Introduction:

(1) Function: Leaching system is an oil etraction through soaking or spraying pre-pressed cake by a certain organic solvent. The principle of this part is the different solubility of solvent.

(2) Use range: Solvent etraction fits for pre-press etraction of high-oil-content materials and direct once time etraction of low-oil-content materials.

(3) Main parts: The etraction series includes rotary etractor, toaster, 1st evaporator, 2nd evaporator, stripping tower, condenser, etc.

Vegetable seed oil extraction machine/solvent extraction plant Main parts:

(1) Solvent pumps: continuously spray solvent to the rotary-type etractor

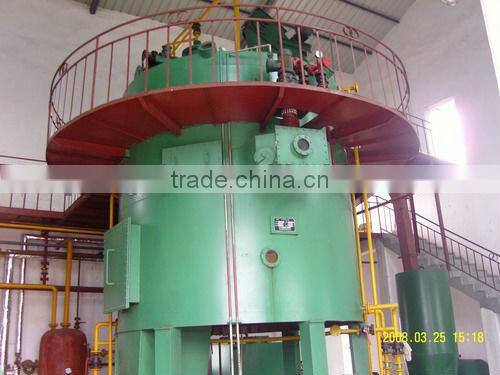

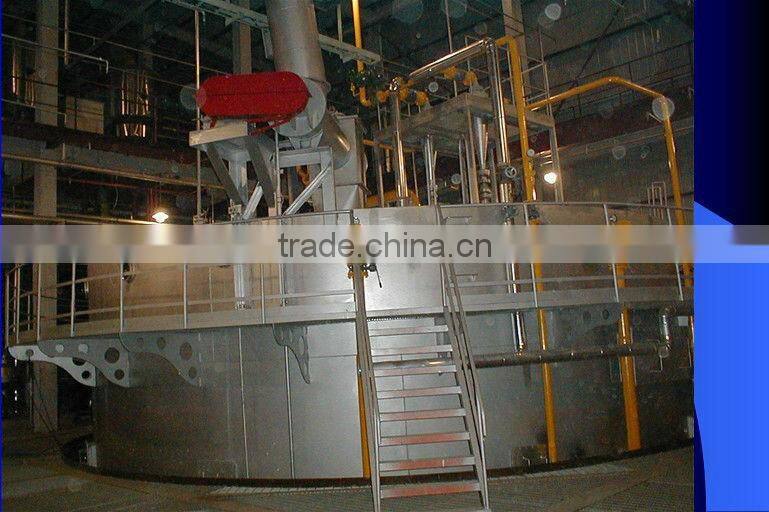

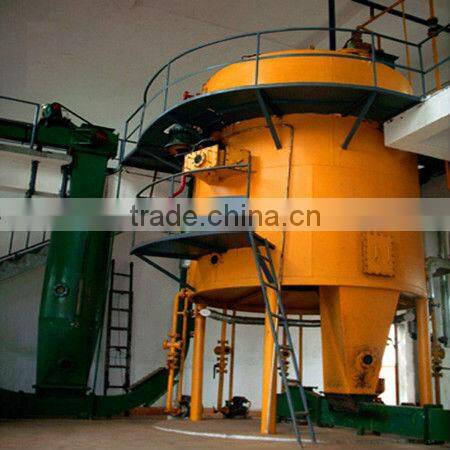

(2).Roary etractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent(form miscella). After processing, you can get wet meal and miscella (mied oil).

(3). DTDC: usd to separate the solvent from the wet meal.

(4). Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline wter, at last the reactant precipitate, reaching the goal of purifying.

(5). Miscella tank 2nd: the purified miscella will be pumped into it.

(6). Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.

(7). condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

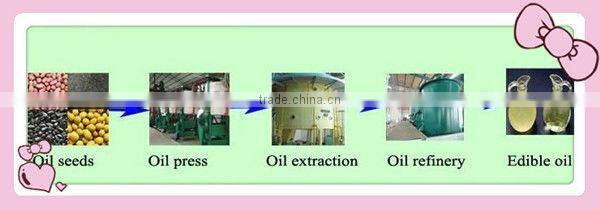

Vegetable seed oil extraction machine/solvent extraction plant Main Process:

(1) The material (for pretreatment) is sent to rotary etraction by the scraper conveyor. The material will etracted by the solvent or mi oil. After this step, we will get meal and mi oil.

(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary etraction.

(3) After the mi oil from the rotary etraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mi oil is separated.

(4) The mi oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary etraction.

Vegetable seed oil extraction machine/solvent extraction plant Parameters:
