Min.Order Quantity:1 Set/Sets
Port:Qingdao,or the nearest port
Packaging Details:International Export Standards, usually wooden cases
Delivery Detail:within 45 days
The feature of 50-500T/D rapeseed prepress equipment plant
Oil plant pretreatment is the starting point for oil production, including the process of storage, drying, primary cleaning, crushing, softening, flaking, cooking, pre-pressing, extrusion and baking. According to different oil plants, processing purposes and oil conte-nt, there will be different pretreatment processes. Our company has mastered various pretreatment methods with mature and advanced technology, especially drying, soybean hulling, shelling peanut red skin, softening, pressing, extruding etc.
1 50-500T/D rapeseed prepress equipment plant Introduction:
1.We supply different pretreatment methods for oil plants with different oil content. Generally, for high oil plants such as rapeseed, cottonseed and peanut, first prepress to the reasonable level and then extract.
2.At present, screw oil press is used for prepressing, and it includes single screw and double screw oil press.
3. Single screw oil press is of short stroke, high pressure, high-temperatured barrel and large capacity, while double screw oil press is of low-temperatured barrel because of double stoke.
4. Single screw oil press is used when there is no specific requirements for temperature, and double screw oil press is used for required pressing under low temperature.
50-500T/D rapeseed prepress equipment plant Characteristics:
1. Full continuous and mechanized operation, and with electrical interlocking control system.
2. The equipment layout is in tower structure, and the material flow by relying on gravity to reduce reducing power consumption.
3. In extrusion process, consider producing extrusion material in different proportions and raw germ extraction, and adjust it at any time according to product requirements.
4. When producing soybean germ meal, the roller softening pot can better meet the flaking technical requirements.
5. Take into consideration the environmental requirements in modern industry. The workshop is also equipped with the dedusting system with high performance, so as to meet the requirements of production and environmental protection.
6. Select scraper conveyor as much as possible, which can effectively reduce raw material crushing, improve solvent permeation into the material layer, and increase the extraction efficiency.
7. Our company adds soybean extrusion process after flaking process, to extrude the soybean germ, further destroy oil material cell, improve the productivity greatly and get the extruded meal that is well-received by feed manufacturers.
The Description of 50-500T/D rapeseed prepress equipment plant
Sunflower seedmeteringmagnetic separationdeironingcleaningstone removing gear roller crushingsoftening
flakingextrusioncooling&dryingextraction
50-500T/D rapeseed prepress equipment plant Working process:
1) Metering process: with special equipment, the stable measuring scale is used to regulate the flow and measure total production. Moreover, it can achieve accumulated measurement, transient measurement and cost accounting, with accurate measurement and high precision.

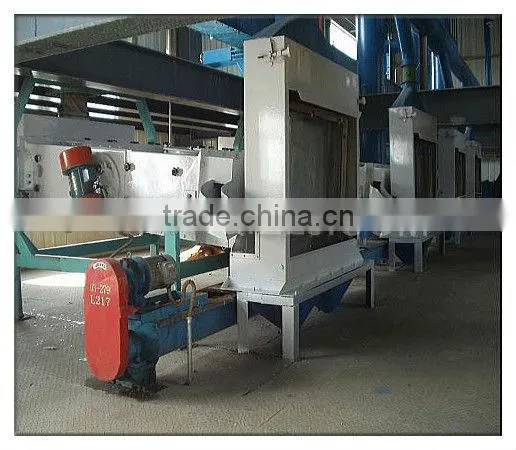

2) Cleaning process: use magnetic selector to remove iron impurity, vibration cleaning sieve to remove straw, and gravity stoner to remove stones, bricks and other impurities. The dedusting system uses single union cyclone and centrifugal fan to remove dust effectively, so as to to ensure workshop hygiene and clear light impurities.
3) Crushing Process: mainly used to crush many kinds of large oilseed .

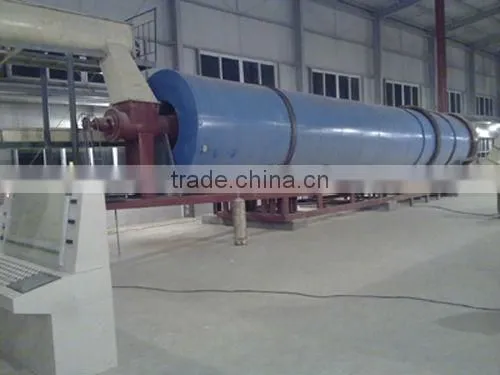

4)Softening process:with YPHW series horizontal softening pot, material enters softening drum through feeding auger, and turns over with the rotating drum. The rotating drum is equipped with heating tube, and there is steam in the tube. When material turns over continuously with the rotating drum, soy is heated to 50-70C and is fully softened, which can improve soy plasticity, make germ flake thin and burly and improve extraction effect. In addition, the rotating drum has the inclination of high feed end and low discharge end. According to material softening conditions, regulate the rotating speed of drum to control the softening time of material in the rotating drum, so as to achieve the best softening effect.

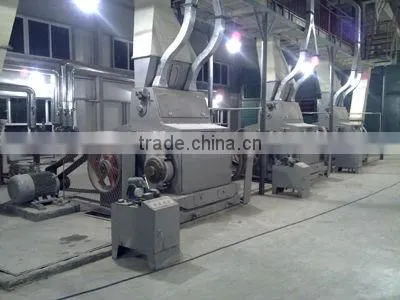

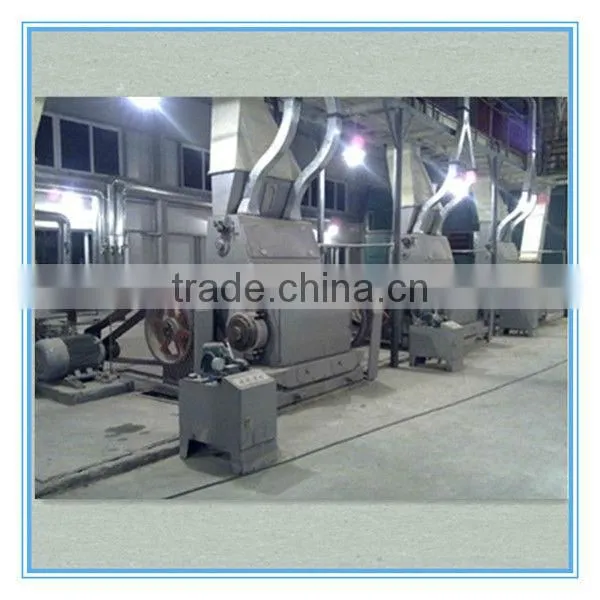

5) Flaking process:our hydraulic compact roller flaker can better damage the oil material cell to ensure thin and uniform flake, with high toughness and small powder.
Our honor should be more convincing:
1 Engineers to the scene to guide the installation;
2 Online question reply;
3 The warranty period of 12 months;
Our engineers in guiding workers how to operate the machine:
