Qie 100~600kg/hr Automatic Fine Quality Oil Expeller for Palm Kernel 6YL Series

Qie 100~600kg/hr Automatic Fine Quality Oil Expeller for Palm Kernel 6YL Series thumbnail-1
Qie 100~600kg/hr Automatic Fine Quality Oil Expeller for Palm Kernel 6YL Series photo-1
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Soybean Oil
Type:
Other, Cold & Hot Pressing Machine
Contact Supplier Request Quote Chat Now
Zhengzhou Qie Grain And Oil Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Soybean Oil
Type Other, Cold & Hot Pressing Machine
Automatic Grade Automatic
Production Capacity 100%
Place of Origin Henan, China
Brand Name Qi'e
Model Number 6YL-80
Voltage 380V
Power(W) 2KW
Dimension(L*W*H) 1650*1200*1720
Weight 630
Certification SGS
After-sales Service Provided Engineers available to service machinery overseas

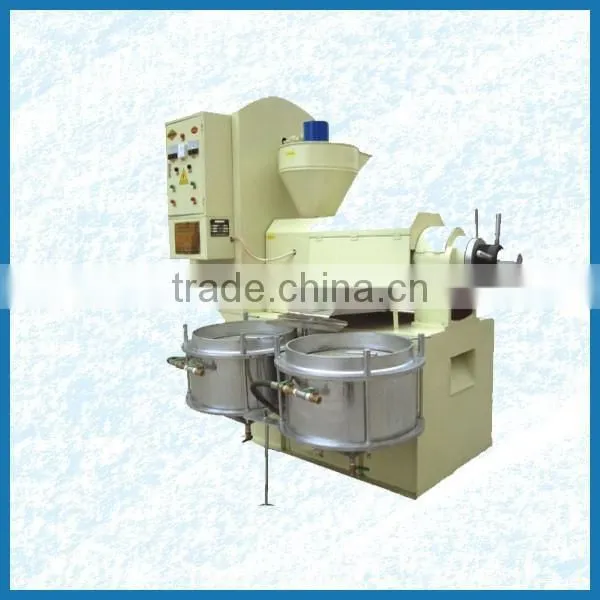

Qie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL series




INTRODUCTION:

Automatic spiral oil press had meet in CE,ISO9001,BV. We had test for the following oil materials, Suitable type of Seed: Corn, Soybean,, Cashew, Camellia , Walnut ,Almonds, Sesame ,Peanut , Rapeseed and Pumpkin seeds and castor bean, olive seeds, palm seeds, coconuts, tea seeds, etc more than 30kinds had tested.

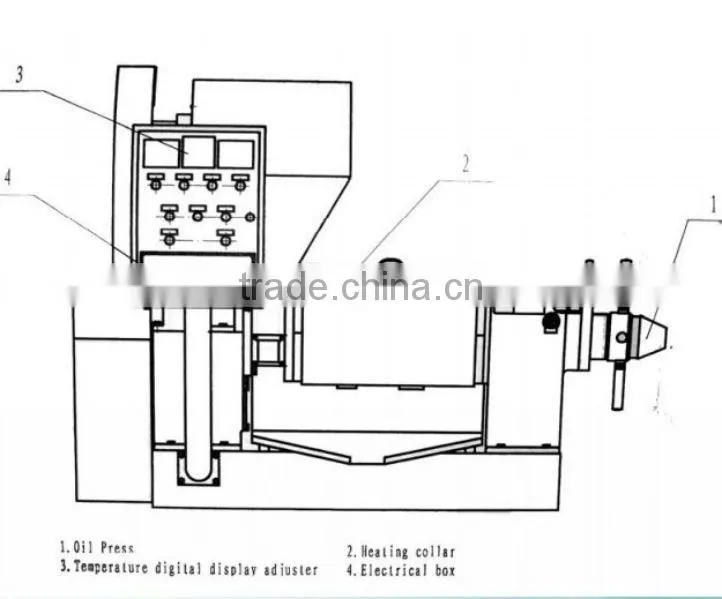

The machine including: pressing system, filtration system, storage tank 2 sets , heating system, power generator control panel.
 Qie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL seriesQie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL series



ADVANTAGES:

1. Use high quality electroplate steel and stainless steel, durable, not easy to damage, Senior intelligent control, simple operation,Can trouble-free press seeds 150T yield.

2. Squeezing out of the filtered cooking oil, comply with the food safety standards and GMP standard.

3. Low temperature squeezing control technology,could start running on 30-50 degrees.

4. Economical, save electricity, just 15 square metre, 1 employees can production.

5. Cold and hot pressing technical, Our patent technology, gear shift speed technologies, truly realize cold pressing and hot squeeze.--- get governments certification, advanced than international

6. A double helix oil press equals two oil press, can obtain double benefits.

7. Military industrial manufacturing, quality No.1 made in china.

8. Perfect after-sale service system, the 1 year warranty, free replacement parts,lifelong supply the parts in duty.

9. When buy machine, factory acquiesce in prepared full set of sparepart together with machines on shipment.



MAIN SPARE PARTS:



worm, squeezing head, worm shaft, cage bar, heater ring, cake outlet, vacuum filter.




Qie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL series





HOW TO OPERATE OIL PRESS MACHINE:



1. Prepare the seeds;



2. Adjust the machine, such as electricity, heating (optional);



3. Start the machine, putting seeds into the feeder;



4. Seed into the screw bolt , begin to press;



5. The crude oil comes out of the squeezing bolt, then flow into the board;



6. Go into the vacuum filter, using it for filtration;



7. After filtration, the oil comes out from the bottom of pipe.



Qie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL series





SCREW OIL PRESS WORKING PRINCIPLE OF 6YL SERIES:



1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.


2.Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.


3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.


4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.


5.Meanwhile, particles adjacent the screw will rotate along with screws rotating, causing every particle inside the chamber to possess different speed.


6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oils elasticity, resulting in high oil.

Qie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL seriesQie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL series





DETAILED TECHNICAL PARAMETERS FOR 6YL SERIES EXPELLER:





Item

6YL-80

6YL-100

6YL-120

6YL-130

Speed of press screw

30-45r/m

30-40r/m

30-40r/m

28-40r/m

Gear ratio of gear case

14/42x19/57=1:6.63

15/40x15/55=1:9.78

15/34x15/55=1:9.59

15/38x19/48=1:7.38

Boundary dimension

1650*1150*1750

1950*1300*1900

2050*1350*2000

2200*1600*2150

Handling capacity

80-150kg/h

150-250kg/h

200-300kg/h

250-400kg/h

Weight

760kg

950kg

1100kg

1300kg

Power

Main engine

Y160L-6-5.5KW

Y160M-6-7.5KW

Y160L-6-11KW

Y180L-6-15KW

Vacuum pump

Y90S-4-0.55KW

Y90S-4-1.1KW

Y100L1-4-1.5KW

Y100L1-4-2.2KW

Heater

2KW

3KW

3.3KW

3.8KW









Company Information

  ZhengzhouQi'EGrain&Oil Machine Co.,Ltd is a large-sized joint-equity enterprise which specialize in producting edibl oil mechanical equipment andit is aslo a group enterprise integrating scientific research, manufacturing,sales as one.

  Our products are exported to more than 30 countries,and regions such as Russia,India,South Afica, Ukraine, Nepal,

Indonesia and so on.

Qie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL series

Qie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL series

Certifications

Qie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL seriesQie 100~600kg/hr automatic fine quality oil expeller for palm kernel 6YL series

Contact me

Attn: Tom

Website:

Phone: +86-15515901135

Skype: Luyachao819

Whatsapp/viber/tango: +8615515901135



If you want to learn more or purchase equipments, please contact me.
