AS386 china oil machine price vegetable seed extraction machine
1. Description of vegetable seed extraction machine
Hydraulic type vegetable seed extraction machine usually sales to small oil processing plants, it saving time,effort,the oil rate can also be squed and sold to allow customers to eat rest assured oil. Applicable oil crops of vegetable seed extraction machine: peanuts,walnuts,almonds,
soybeans,rapeseed,tea seeds,pine nuts,and some animal diesel may also be pressed,white earth,activated carbon and other chemical raw materials,dehydration,oil,liquid better off.
2. Application range of vegetable seed extraction machine
This vegetable seed extraction machine can also be used at any time throughout the year for sesame,walnuts ,almonds ,peanut, beans,soybean, cotton seed, sunflower seed, coconut, jatropha seed, rape seed, prickly ash seed, chilli seed, corn germ, etc many kinds of oil plants.
| Oil material | Oil press rate (%) | Thickness of the material slag |
Residual oil ratio (%) |
| sesame | 42-55 | 1.0-1.5 | ≤7 |
| peanut | 40-50 | 0.8-2 | ≤7 |
| flax | 35-42 | 1.0-1.5 | ≤7 |
| Sunflower seeds | 30-40 | 1.2-1.5 | ≤7 |
| almond | 45-55 | 0.8-1.5 | ≤7 |
3. Structure of our vegetable seed extraction machine
Our vegetable seed extraction machine have two types-- vertical hydraulic and horizontal hydraulic . All of them have the drive mechanism ,frame, electric,adjustable cake institutions,negative pressure filtration system , both of our two types hydraulic oil press machine are hot sale ,please check the following picture:
Hydraulic vegetable seed extraction machine -vertical hydraulic :
Hydraulic vegetable seed extraction machine-horizontal hydraulic :
4. Technical parameters of our vegetable seed extraction machine
vegetable seed extraction machine
| Model | 6YY-230 | 6YY-260 | 6YY-360 | 6YY-460 | 6YY-460B |
|
Boundary demension (mm) |
900×850×1550 | 1050×950×1650 | 2800×800×1500 | 1000×1300×1950 | 1100×800×2000 |
| Handing capacity | 35-55kg/h | 45-70kg/h | 80-120kg/h | 60-110kg/h | 50-100kg/h |
| Plant | 10m2 | 10m2 | 30m2 | 30m2 | 30m2 |
| Staff | 1-2 | 1-2 | 1-2 | 1 | 1-2 |
5. How to operate our vegetable seed extraction machine
1. When vegetable seed extraction machine is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
2. On the other hand, root diameter of the vegetable seed extraction machine larger from one end to the other. Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
3. Meanwhile, particles adjacent the vegetable seed extraction machine will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
4. Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
6. Our vegetable seed extraction machine and oil product line
Except vegetable seed extraction machine ,our factory can supply a whole oil product line to you , such as cleaning machine flaking roll,cooking machine,hoiser,refining machine and bottling line and so on. You just need prepare the material ,we will do well all other things for you.
7. The advantages of vegetable seed extraction machine
1.Main engine of vegetable seed extraction machine includes base, upright, top plate, oil drip pan nut and so on , it is one of the main parts.
2.Firstly the oil material is put into the assembly of the press boring ,then it being droved up by the oil cylinder piston
3.oil will outflow from the gap of press boring ,and then pass the oil drip pan to the drum for oil storage.
8. After sales
1. After we received buyer’s normal notification, within 24 hours, our factory supply maintenance solution.
2. Guide buyer how to operate, maintenance’s technology and skill train.
3. Supply new technology, new process, communicate information and consultation service.
If you have any question, pls feel free to contact with us at any time

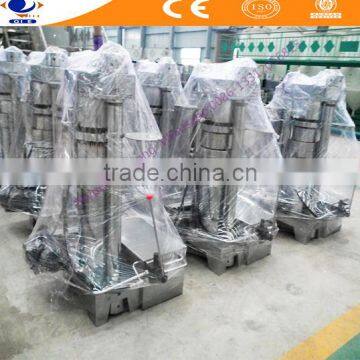

9. Many customers bought our vegetable seed extraction machine

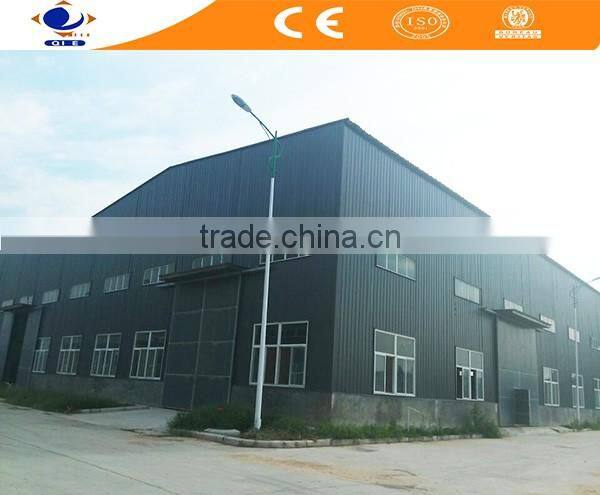

10. About our factory
Zhengzhou Qi'e Grain & Oil Machinery Co.,Ltd. is a large-sized joint-equity enterprise which specialize in producing edible oil mechanical equipment and it is also a group enterprise integrating scientific research,manufacturing,sales as one. Our business involve in hydraulic oil press machine ,peanut oil making machine, automatic oil press machine, small sized oil pressing series,screw oil expeller series,grain and oil engineering designing,equipment manufacturing and installing,project contracing,technical service,new product developemt,the intensive and deep processing for oil by products and so on.
11. Our certifications
12. Shipping and packing of vegetable seed extraction machine
Please contact us
If you have any question about our vegetable seed extraction machine , pls feel free to contact with
us any time:
