Product Application
Our company has applied the automatic control system with advancedness, security, reliability into the pretreatment, extraction, refining and fractionation in large oil plants. For its application in automatic control system, it can control the production in the entire workshop and monitor the operational status of each device by controlling the computer terminals in the room. One person only can operate the entire workshop, with efficient production management. It has reduced the production cost greatly and improved the management efficiency.
Rice bran→Floury product separation→Magnetic separator→Wet extrusion→Flat plate dryer→To extraction plant
Material embryos→Extraction→Wet meal→Evaporation→Cooling→Product meal packing
Mixed oil→Filter→Negative pressure evaporation →Crude oil Solvent recovery
Soybean Oil→ Water washing and alkali refining→ Dephosphorization degumming→decoloration→ continuous deodorization→ to fractionation and dewaxing workshop.
Main Features
1) Low noise, cost-effective.
2)Long service life. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) We are a group enterprise integrating scientific research, manufacturing, sales as one. Already built 35 years.
4) Running in a high automatization and intellectualization,no pollution. Main part's raw material: stainless steel.
5) Automatic, Less labor cost.
Machine Parts
Name: Magnetic separator
Brand: QI'E
Original: China
Remarks:
There are also metal impurities in rice bran sometimes, these impurities not only affect oil quality, but also is bad for machine working. Magnetic separator is mainly used to remove metal impurities in the rice bran pretreatment line.
Main Features

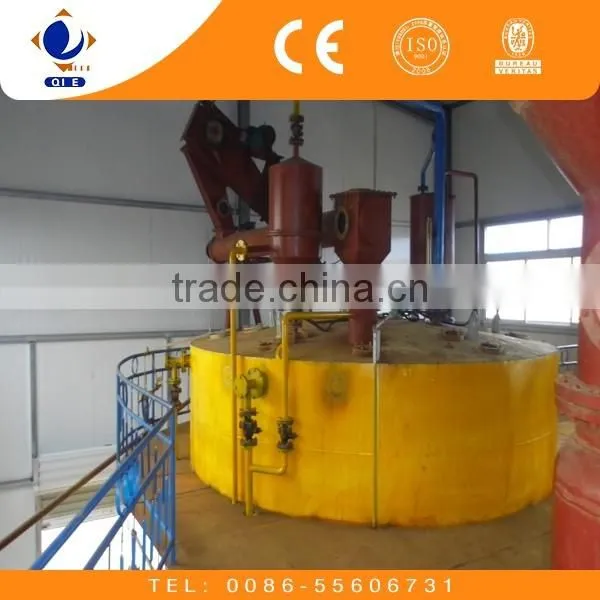

Name: Rotocel Extractor
Brand: QI'E
Original: China
Remarks:
Qi'E Rotocel Extraction:
1.Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good extraction effect;
2.The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;
3.The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level, which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.
Machine Parts
Name: Desolventizer section
Brand: QI'E
Original: China
Remarks:
Main Features
Name: Deodorization under part
Brand: FESTO
Original: Germany
Remarks:
Deodorization tower:The qualified decolored oil enters into the spiral plate heat exchanger to recover most of the heat, and next goes to high pressure steam heat exchanger to be heated to the process temperature (240-260℃) and then enters the deodorization tower. The upper layer of combined deodorization tower is the packing structure which is mainly used to remove the odor producing components such as free fatty acid (FFA); the bottom layer is the plate tower which is mainly for achieving the hot decoloring effect and reducing the peroxide value of the oil to zero. Oil from the deodorization tower enters into the heat exchanger to recover most of the heat and makes further heat exchange with crude oil, and then is cooled to 80-85℃ through the cooler. Add the required antioxidant and flavor agent, and then cool the oil below 50℃ and store it. Such volatiles as FFA from the deodorizing system are separated by the packing catcher, and the separated liquid is FFA at low temperature (60-75℃). When the liquid level in the temporary tank is too high, the oil will be sent to the FFA storage tank.
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
