Canola Seed Oil Produce Machine
Canola Seed Oil Processing Plant Pre-pressing Flow chart:
Canola Seed Oil Pre-pressing Flow chart:
Canola Seeds Metering machineMagnetic separationClearingSoftingFlakerSteam CookerPrepressingFilterCake Countercurrent cold and dry boTo solvent etraction plant
Crude oil
Refining
Main Process description:
1.Metering machine:To meter quantity canola seeds. Discharge them to temporary storage tank. If there have matter in this production. You need to close this meter machine to stope produce. This can prevent seed over load.
2.Magnetic selector:Magnetic separation equipment without power and ehaust system were used to remove iron. Dust removing wind net is installed.
3.Cleaning: In order to obtain high effective cleaning, ensure good work condition and production stability, high efficient vibration screen was used in the process to separate big and small impurity.
4.Flaker: Flaking means a certainty granularity of canola lamella was prepared for flaked of about 0.5 mm, the oil of raw material can be etracted in the shortest time and maimum, and control oil residual in sunflower cake is 1%.

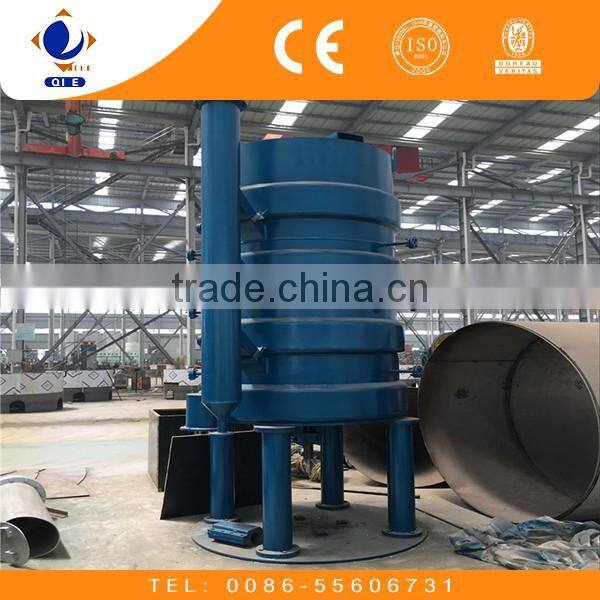

5.Steam Cooker:This process is heating and cooking for canola seed which is easy to separate of oil and can provide the oil quantity from prepress machine. It is easy to operate and have long life.

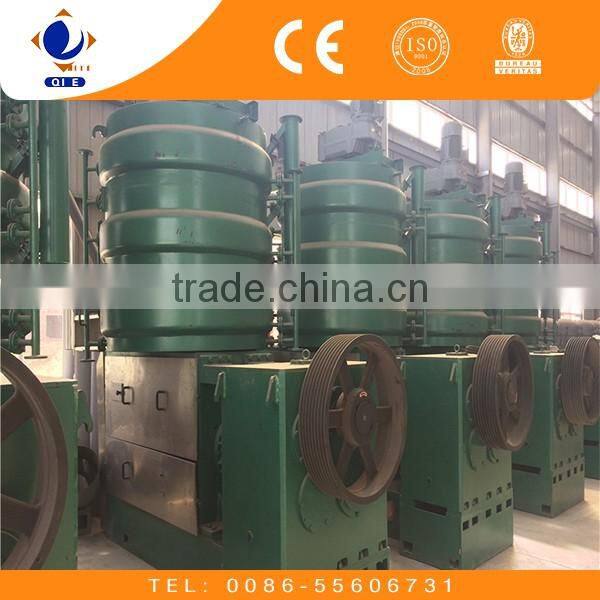

6.Pre-pressing machine:
Prepress machine is continuous screw press machine which is suitable to the plant oil materials which has high oil content. The instruction of the cake is loose and easy to make the solvent permeate, the oil content of cake and moisture used for solvent etraction.
7.Filter:To filter oil after pressing.Duty:1.Without the filter cloth, filter paper, reduce the cost of filter greatly .2.All closed operation, environmental protection, no material losses.3.Vibration slag off greatly reduce the labor intensity to realize continuous operation.4.Pneumatic valve discharge, greatly reduce the labor intensity of workers.
8.Countercurrent cold and dry bo:The best moisture for etraction process is 7-9%, therefore, there must be effective drying means to achieve the bestetraction moisture.Adopting counter-current dryer can make water and temperature meet with follow-up process requirements, and improve the oil yield, as well as oil quality.

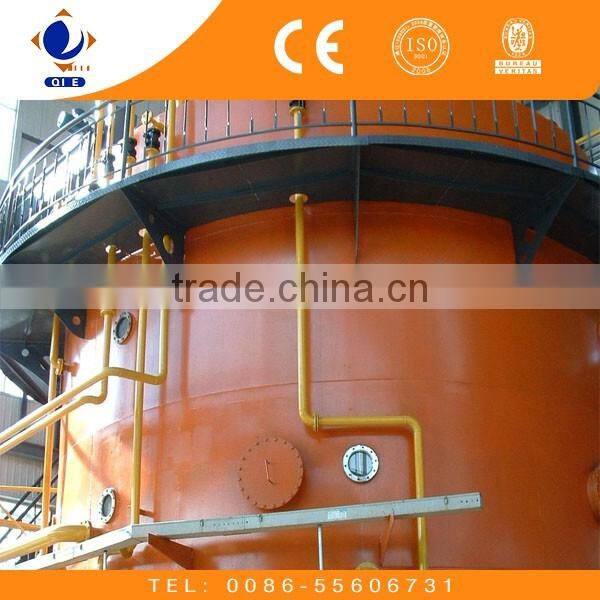

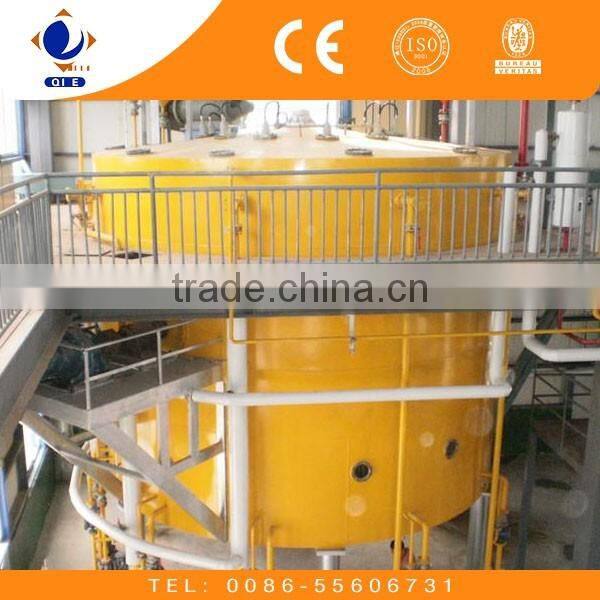

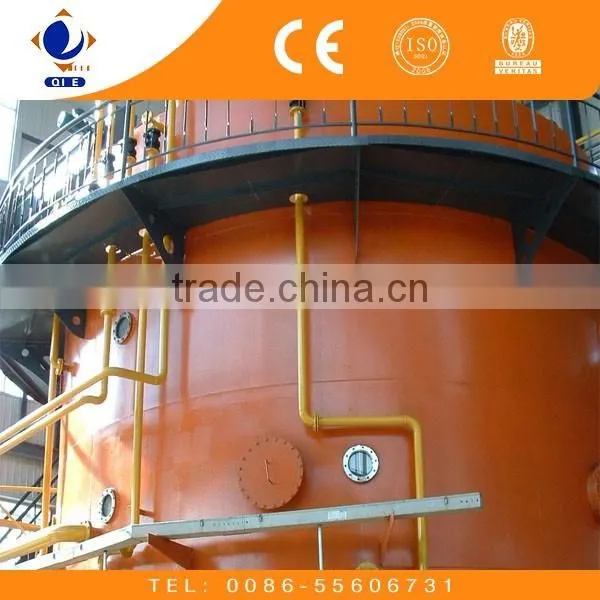

Canola Seed Oil Processing Plant etraction machine
Canola Seed Oil Solvent Etraction Flow chart:
Material cakesSolvent etractionWet mealEvaporationCoolingProduct meal packing
Mied oilFilterNegative pressureEvaporation Crude oil
Solvent recovery
-
Main Process description:
Main Process: 1.Solvent etraction 2.Wet meal desolventizing 3.vacuum evaporation system4.Solvent condensation 5.Paraffin recovery .
1. Features of towline etraction system description:
1) The material is divided into several independent units on the material bed, which can effectively prevent miscella at all levels from fleeing hither and thither on the material layer and ensure the concentration gradient between several sprays.
2) Immersion area appears in each lattice, which can help achieve better immersion effect.
3) The chain bo is supported by track and can prolong the service life of screen deck by not touching it.
4) The towline etractor is driven by world leading double-shaft hydraulic motor, with balance force, reliable operation and less maintenance cost.
5) Specialty suitable for the etraction of high oil and high power materials, and better immersion effect can be epected for ordinary oil plants.
Canola Seed Oil Processing Plant 30TPD rice bran oil etraction machine

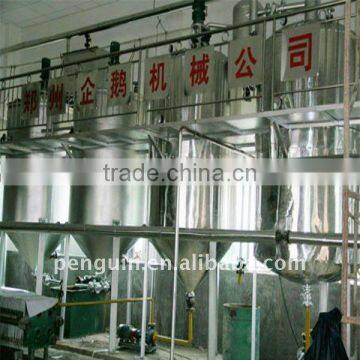

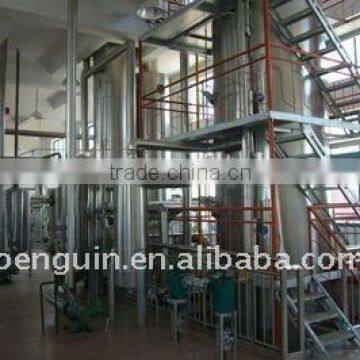

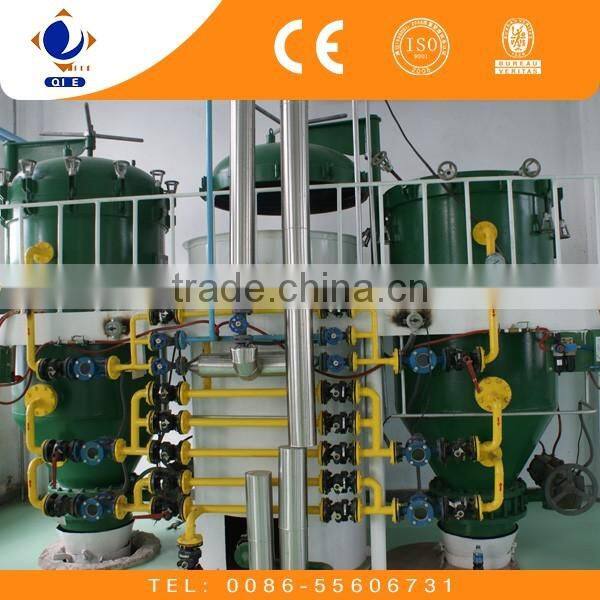

Canola Seed Oil Processing Plant refining plant
Crude oil--Degumming and deacidification--Decolorization--Deodorization--Refined rice bran oil
1.Degumming and deacidification: The gumming is moved by phosphoric acid and hot water. There are two ways to move the acid in the rice bran oil. One is chemical way, the other one is physical way. The chemical way is using NaOH to react with acid. This way is suitable for the capacity of 5-30T per day. The physical way is using steam and centrifugal to move the acid. This way is used for capacity from 30-2000T per day.
2.Decolorizaiton: This step is used to adjust the color of the oil. You can control the color of the rice bran oil according to the requirement of yur market.
3.Deodorization: The function of this step is to move the special smell in the oil. This is an important standard for refined rice bran oil.

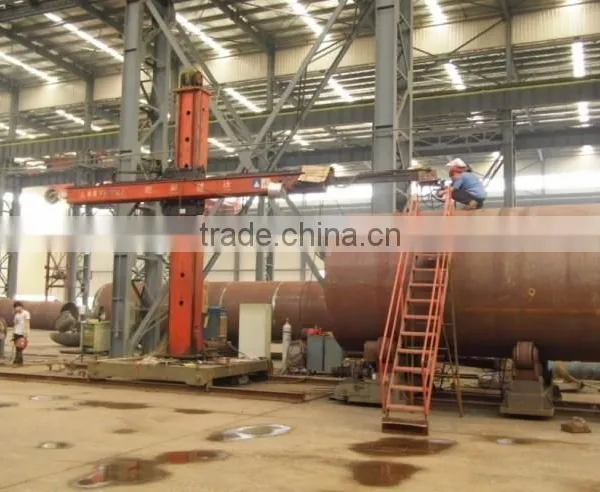

Zhengzhou Qi'E Grain&Oil Machine Co.,Ltd is a large-sized joint-equity enterprise which specialize in producting edible oil mechanical equipment andit is aslo a group enterprise integrating scientific research, manufacturing,sales as one.Our products are exported to more than 30 countries,and regions such as Russia, India, South Afica, Ukraine, Nepal, Indonesia and so on.
1. Zhengzhou Qi’e grain and oil machinery company is the manufacturer, the equipment is cost-effective.
I visit the Qi’e factory many times before I buy their machine, they have a big factory, they can produce the pre-treatment equipment, solvent extraction equipment and refining equipment independently. Because they are manufacturer, the price is reasonable. I belive we will have a new cooperation in the near future.
2. Zhengzhou Qi’e grain and oil machinery company’s have good technology team and service team.
My factory has just completed construction. Their engineers have a wealth of experience in installation. They guide installation during installation time and very responsible. After we finish the installation, they were debugged. The quality of finished oil is very good. I think they are best manufacturer.
If you have interest in our machine, please kindly send us your inquiry details in the Below , Click "Send" Now!
