CE&ISO approved crude rapeseed oil refinery plant with low consumption

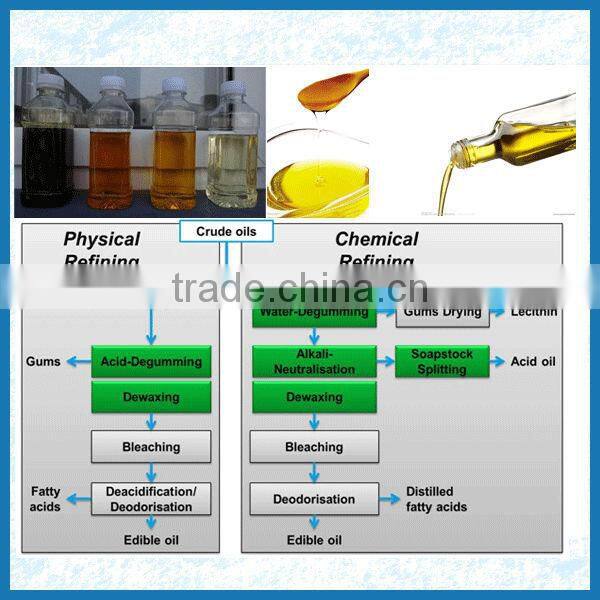

Full automatic crude corn germ oil refining plant flowchart:
Rapeseed oil refinery plant introduction:
Alkali hot water
Crude oil filter reactor reactor centrifugal separation oil residue
Phosphoric acid hot water
degumming oilcoolerdrycentrifuge separationmialkali liquor
bleaching earthmidecoloringfilterdecoloring oilmiheat
refined oilfiltercooldeodorizingvacuum
Rapeseed oil refinery plant technilogical processes:

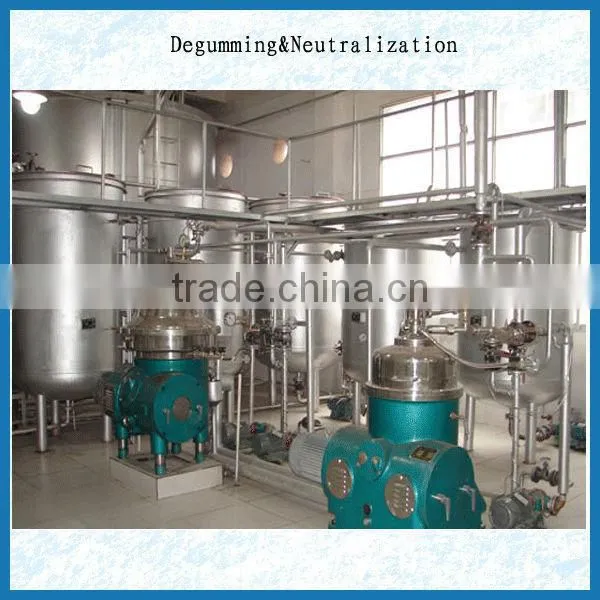

(1)Degumming process
The purpose of degumming is to remove the phospholipid, sugar, protein, trace mental, and some other impurities, which have bad effect on the stability of the oil. First, the oil should be heated to 90-105C, then put some phosphoric into it and stir. It mainly transfer the phospholipid to that can be compatible with water. Then add some salt water to gather the impurities, which subside to the bottom and be discharged.
Deacidification
Add some certain quantity of alkali to neutralize the free fatty acids. During this process, some soapstock will be produced.The soapstock will be separated from the oil after using the centrifugal machine.

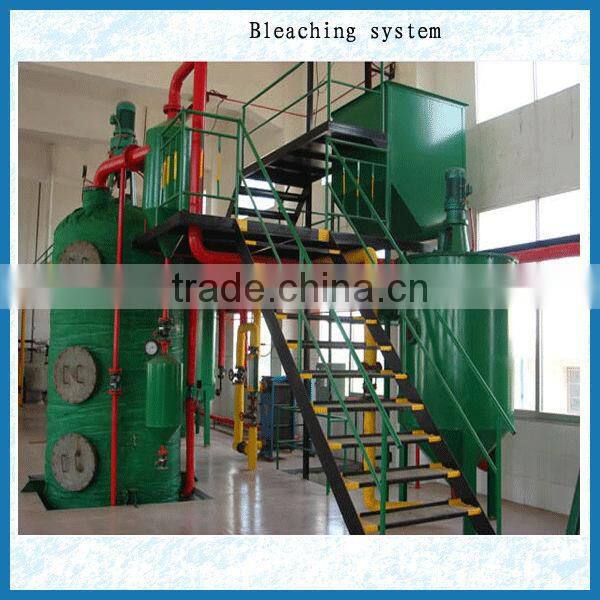

(2)Decolorization
The oil with activated clay in the oil soil miing tank, and 1 ton oil needs 5kg clay. Then stir it 10 minutes at 10C. Net, pump the mied oil into the decolorization tower. It use steam to heat the mied oil at 100C, and the process lasts 30-40 minutes.

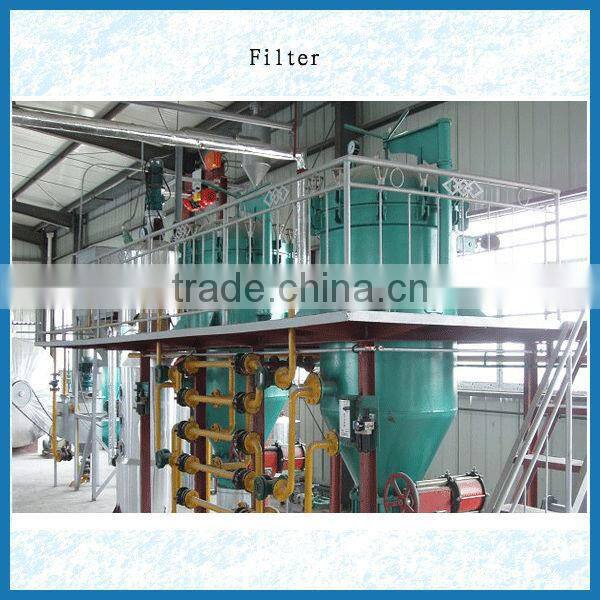

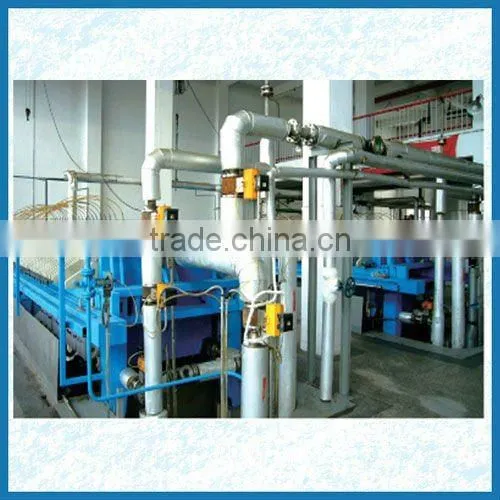

Filter
The filter capacity can reach 200meshes. First, we use the filter to remove the clay in the oil, then use the bad filter to purify the oil again. The diameter of the filtering can reach 5m.

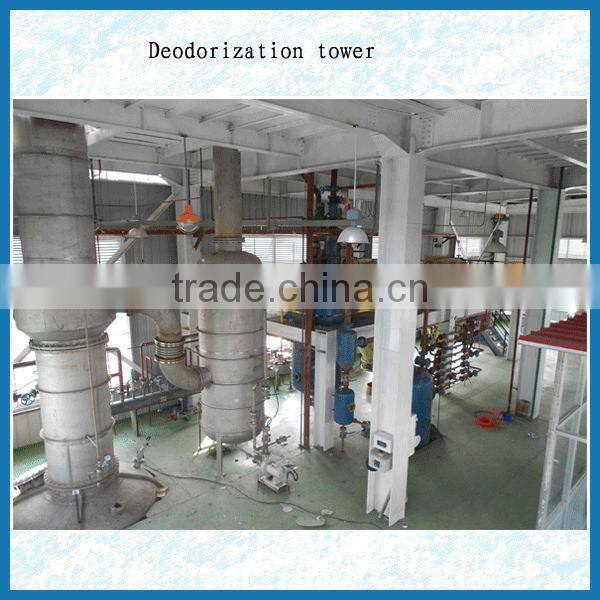

(3)Deodorization
The main purpose of deordorization tower is to remove fatty acid and some odor material. The principle of the deordorization is to use the high temperature and vacuum to remove the odor. The fatty acid and odor will be stalled in the storage tank.
(4)Automatic Control System
Our company has applied the automatic control system with advancedness, security, reliability into the pretreatment, etraction, refining and fractionation in large oil plants. For its application in automatic control system, it can control the production in the entire workshop and monitor the operational status of each device by controlling the computer terminals in the room. One person only can operate the entire workshop, with efficient production management. It has reduced the production cost greatly and improved the management efficiency.
Full automatic crude corn germ oil refining plant advantage:
1.By combining several years' practical eperience, adopting a kind of unique deguming technology, etending the phosphoric acid and oil reaction time and adding specific additives, our equipment
can remove phospholipids in oil to the maimum.
2.The new carclazyte automatic quantitative system can produce more reliable oil of good quality, with less investment for the full vacuum closed refining technology.
3.We can design the optimum refining scheme according to different oils and different requirements for products.
Full automatic crude rapeseed oil refinery plant energy cosumption:
Steam consumption |
300Kg/T oil |
Bleaching earth |
1-3Kg/T oil |
Power consumption |
22KWH/T oil |
Fuel consumption |
10-20Kg/T oil |
Oil content in waste white clay |
23% |
Phosphoric consumption |
0.5-1Kg/T oil |
Soft water consumption |
160Kg/H |

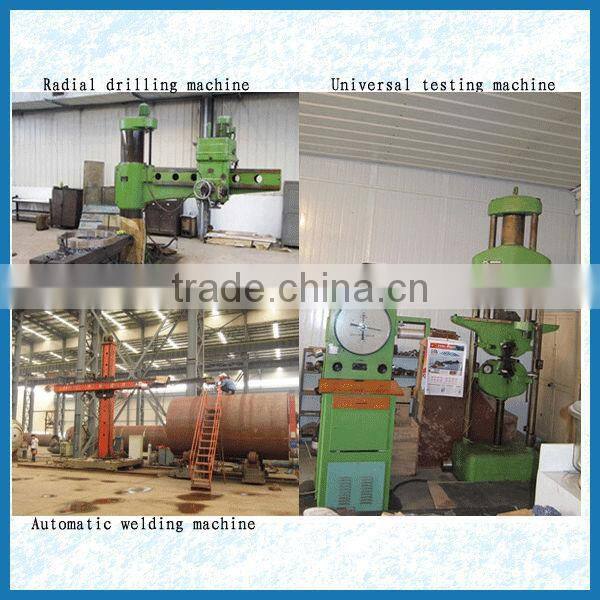

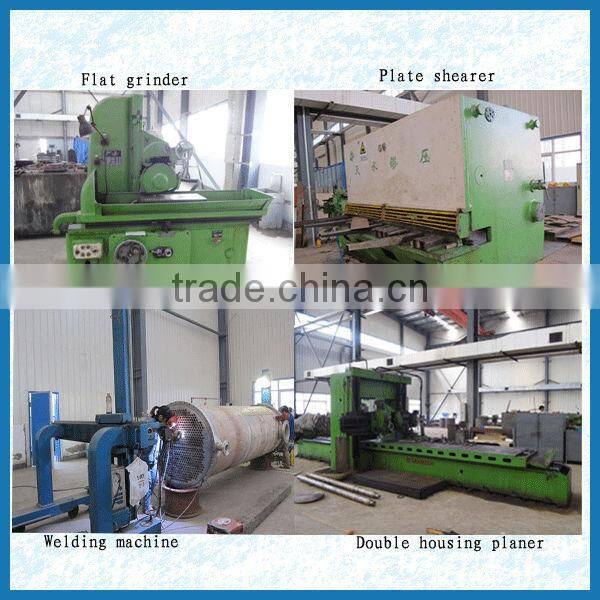

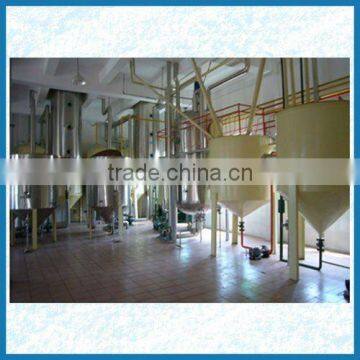

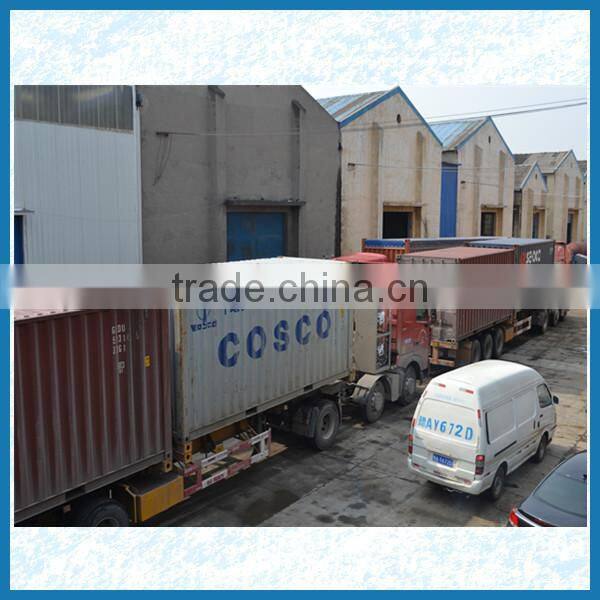

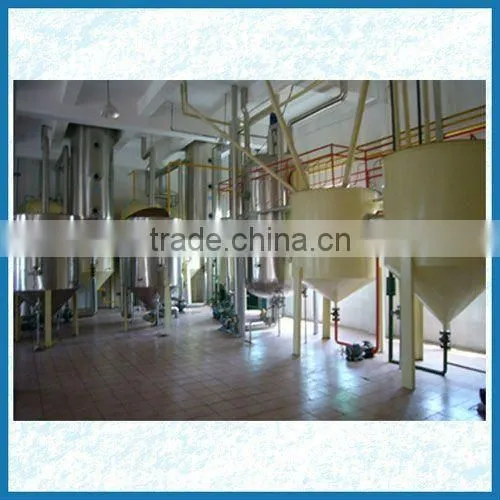

The view of our factory:
Customer visitation to our factory:
1.Ensure to timely provide complete sets of equipment and accessories.
2.Ensure that one-time installation debugging acceptance.
3.To provide high quality material with preferential price.
4.Priority to provide customer our new craftworks and products.
5.Free training technological operator to ensure the trained staff can operation independently.
6.In the installation process,we will appoint a installation supervision staff on the spot.
7.we will offer an eperienced project manager, organize a good installation team for the work of field installation debugging.
8.After the equipment field assembly and installation, we will be also responsible for the single equipment debugging, online debugging and Feeding trial operation, to ensure that equipments can normal operate in full load conditions.
