Palm oil processing equipment

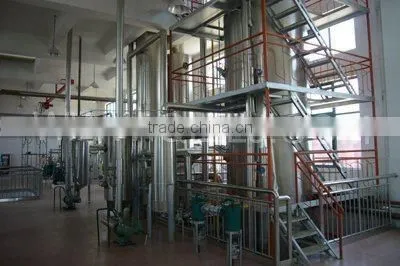

Oil refining for palm oil processing equiments
1) The main function of decoloring process is to remove oil pigment, residual soap grain and metal ions.
2) Under negative pressure, the mechanical mixing method combined with steam mixing will improve the decoloring effect.
3) The degummed oil firstly enters into the heater to be heated to the appropriate temperature (110C), and then goes to the bleaching earth mixing tank.
4) The bleaching earth is delivered from the low bleaching box to the temporary tank by wind.
5) The bleaching earth is added by automatic metering and is interlockingly controlled with the oil.
6) The oil mixed with the bleaching earth overflows into the continuous decolorizer, which is stirred by non-powered steam.
7) The decolored oil enters into the two alternate leaf filters to be filtered.
8) Then the filtered oil enters the decolored oil storage tank through the security filter.
9) The decolored oil storage tank is designed as the vacuum tank with the nozzle inside, so as to prevent the decolored oil contacting with the air and influencing its peroxide value and color reversion.
Oil refining for palm oil processing equiments
Steam consumption |
450KG/T oil |
Electric consumption |
28Kwh/T oil |
Phosphoric acid |
2~3 kg/T oil |

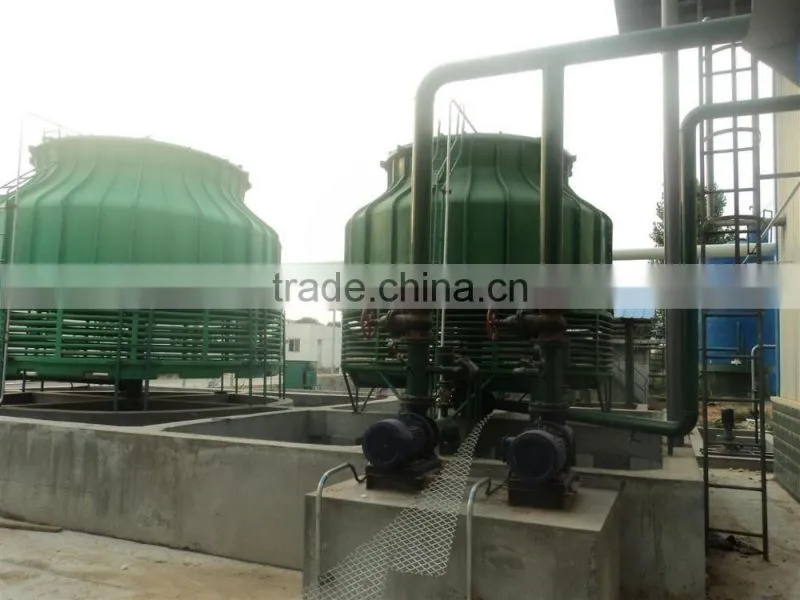

Circulating water cooling water yield |
150m³/H |
Bleaching earth consumption |
5~50Kg/T oil |
Waste bleaching earth oil content |
<35% |
Deodorization loss consumption |
0.5% |
Oil refining for palm oil processing equiments

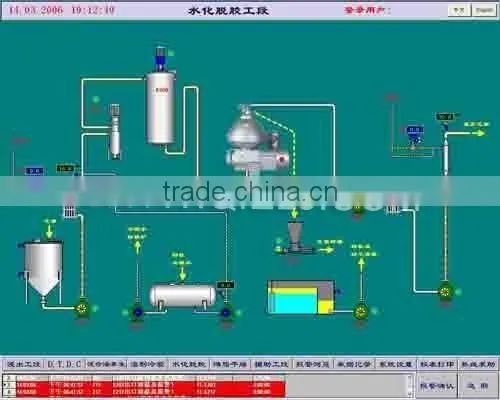

(1) Refining section: used to P-acid de-gumming, alkali refining de-acid and water rinsing.
(2) Decoloring section: used to remove off pigments, bleaching oils and grease dehydrate.
(3) Deodorizing section: to remove off the odor components in oil.
(4) Dewax: used to remove off the wax in the oil, in order to get the high quality oil.
(5) Heat-transfer oil stove: supply each device production needing heat energy, temperature reach above 280C.
(6) Steam generator: produce the needing steam for de-odoring and distillation.
(7) Vacuum pump: supply needing vacuum for dehydrate, de-color, de-odor. Vacuum degree can reach above 755mm Hg.
(8) Press filter: filter clay, filter out clear oil.
(9) Air compressor: blow dry bleached clay, blow empty the leftover oil in the press filter.
Please kindly inform us your required daily capacity, treated quantity, raw material, covering space and related data,
so that we can make flow chart production line for you as your requirement. we will stand at your point to suggest low cost and suitable production line for you.
Besides refining equipment, our company also provide high quality prepressing equipment and leaching/extraction equipment with
which the you can prepress the raw material and get the oil in the cake.
