Galvanized hexagonal gabion wire mesh/gabion protective mesh/gabion mesh roll

Specifications

Gabion mesh
1)Mesh:6x8,8x10cm
2)Wire diameter: 2 to 4 mm
3)Opening:60*80-120*150
4)ISO9001:2008



 Gabion mesh

product



Material:

Low Carbon Steel,

Mild steel ,

Electric Galvanized wire

Hot Dipped Galvanized wire

Galfan Gabion Mesh(95% Zn + 5% Al),

PVC Coated wire



Features:

Economic.Just fill the stone into the gabions and seal it. Simple installation. No special technology needed. Weather proof under natural destroy, corrosion resistant. No collapse even under big scope of deforming. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.

Good permeation can prevent the damage by hydrostatic. Less transport freight. It can be folded together for transport and further installation



Specification:



Opening (mm)	Wire Diameter(Metal Wire)    (mm)	Wire Diameter
60X80	Ø2.0-2.8	Ø2.0/4.0
80X100	Ø2.0-3.2	Ø2.0/4.0
80X120	Ø2.0-3.2	Ø2.0/4.0
100X120	Ø2.0-3.4	Ø2.0/4.0
100X150	Ø2.0-3.4	Ø2.0/4.0
120X150	Ø2.0-4.0	Ø2.0/40



Pictures:

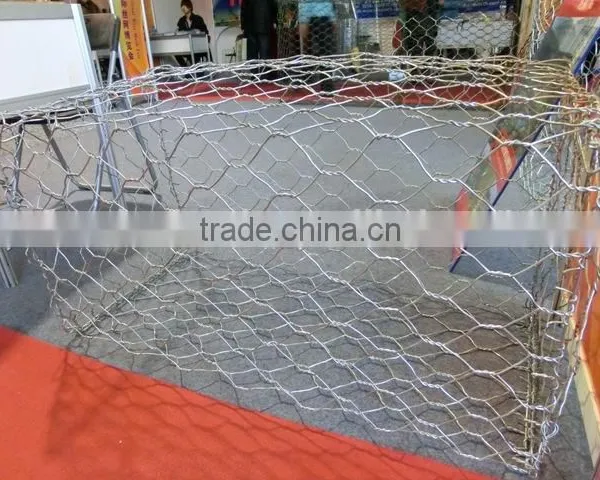

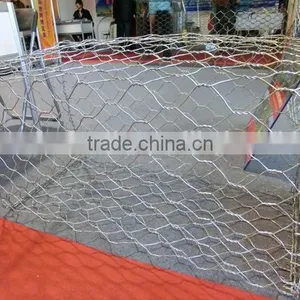

Gabion box



Gabion mesh





packing



ISO9001 Certificate:
